Model NO.:D003002005D
Min. Order:10 Pieces
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type:Equal
Connection:Welding
Material:Stainless Steel
Shape:Equal Tee
Lateral:90°Tee
Head Code:Round
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D003002005D
Wall ThicknessSCH10
FinishDull Polished and Mirror Polised
TechnicsForged
Pressure Rating0-10bar
StandardDIN, 3A, SMS, Rjt
CertificationISO, CE
Material QualitySS304, SS304L ,SS316, SS316L
Specifications1"-6",DIN 25-150
Availabe StandardSMS,DIN,3A,Idf,Rjt, BS, ISO
Temperature Range-20degree Celsius~135degree Celsius
Type of ElbowEqual Tee,Reducing Tee,Short Tee,U Type Tee
Available Polishing180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
Pressure Range1.5~3bar
Available Thickness1.25mm,1.5mm,1.65mm,2mm,2.5mm,3mm
Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends
ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

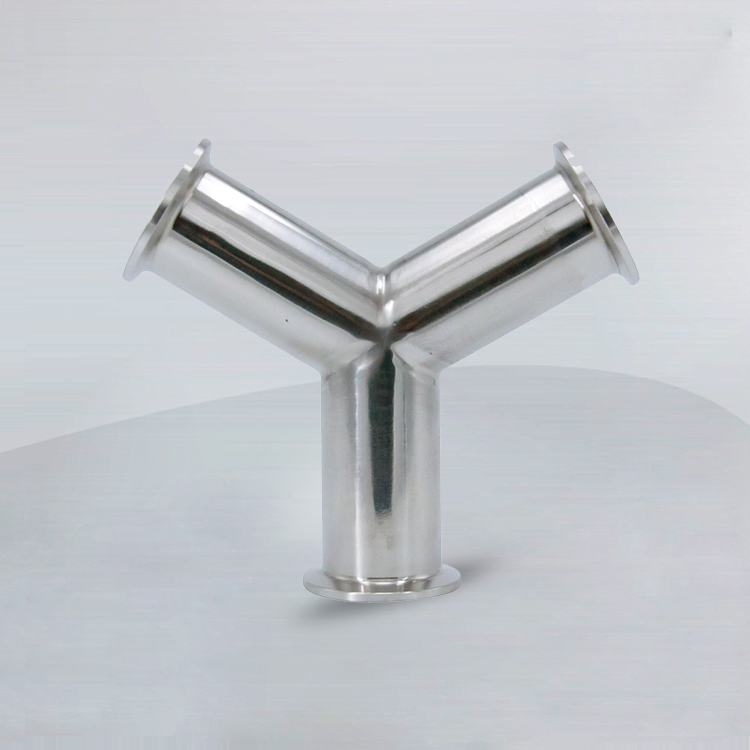

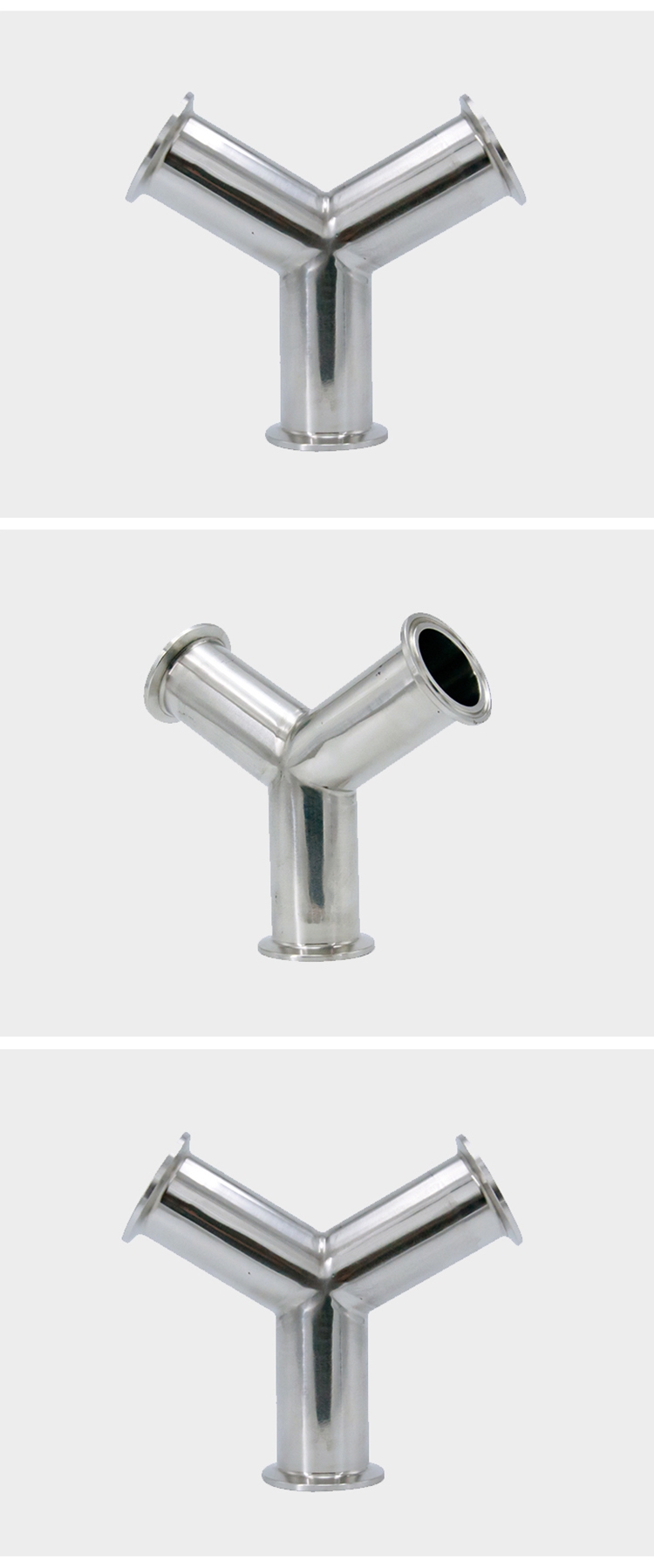

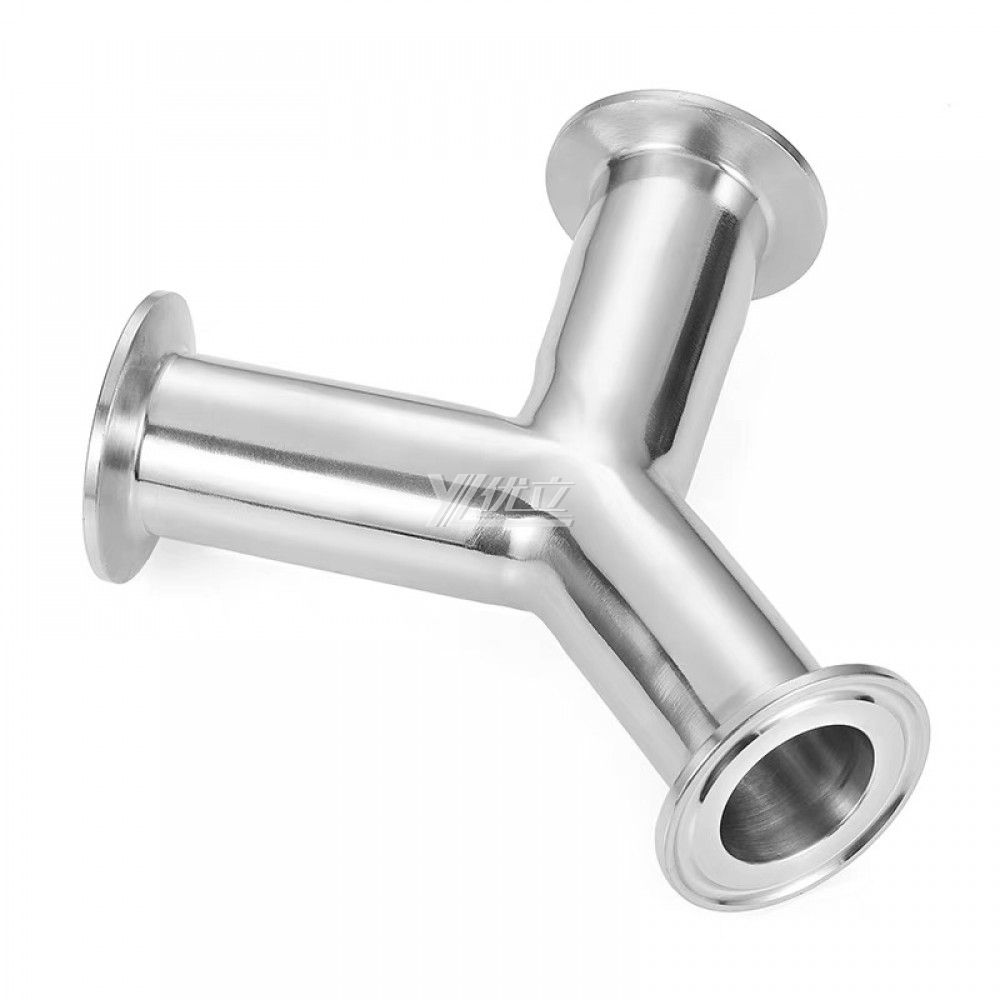

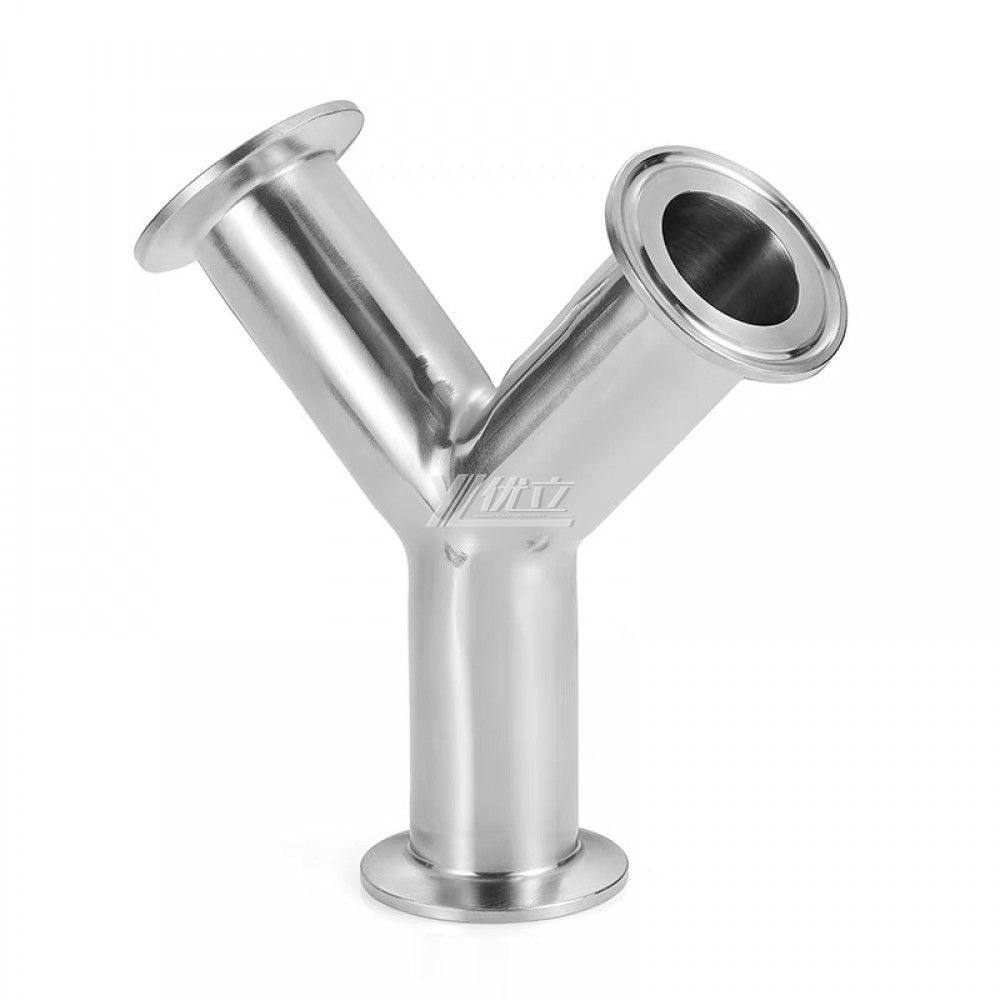

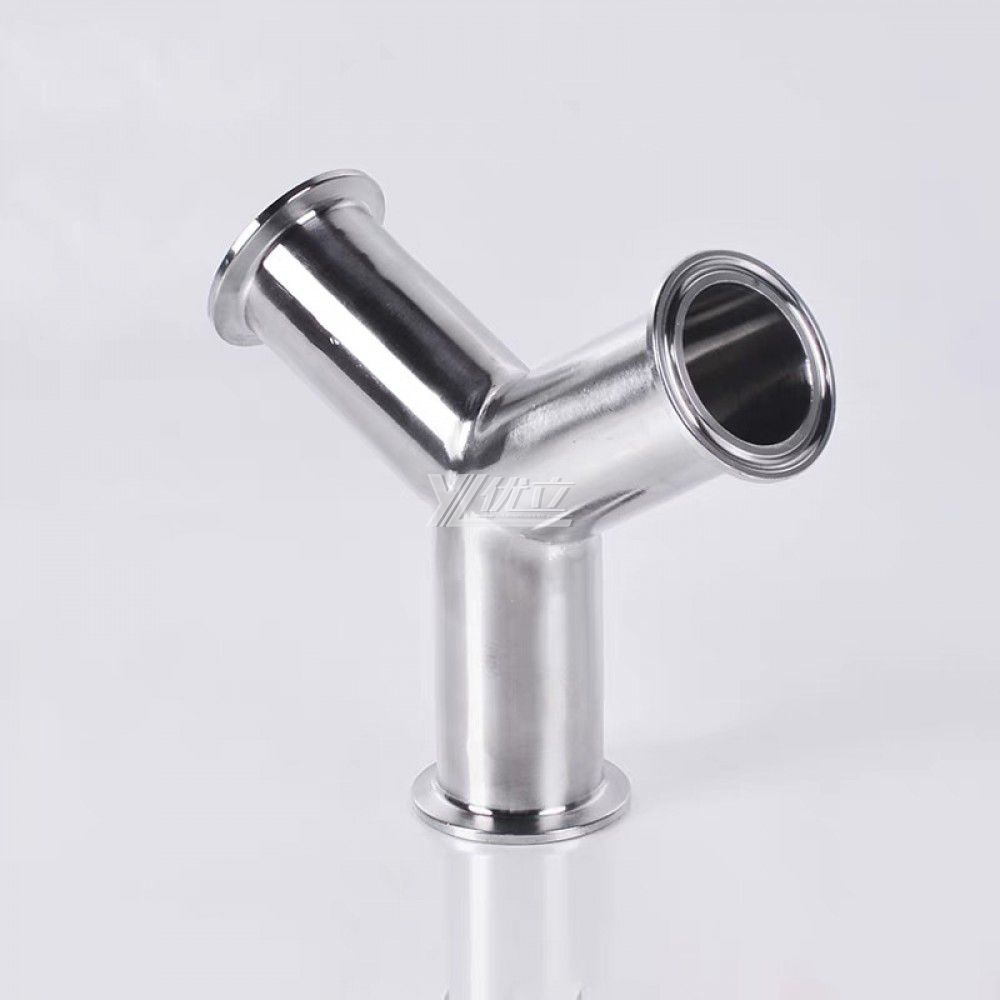

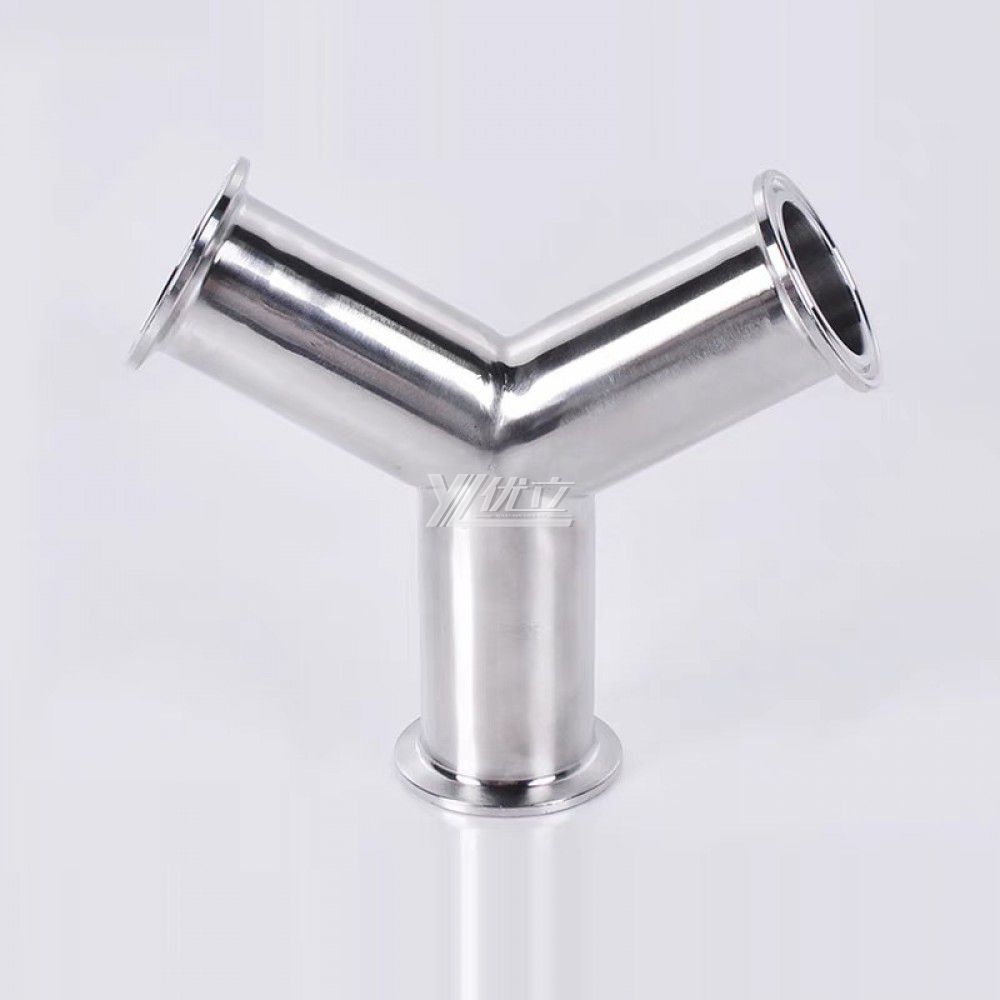

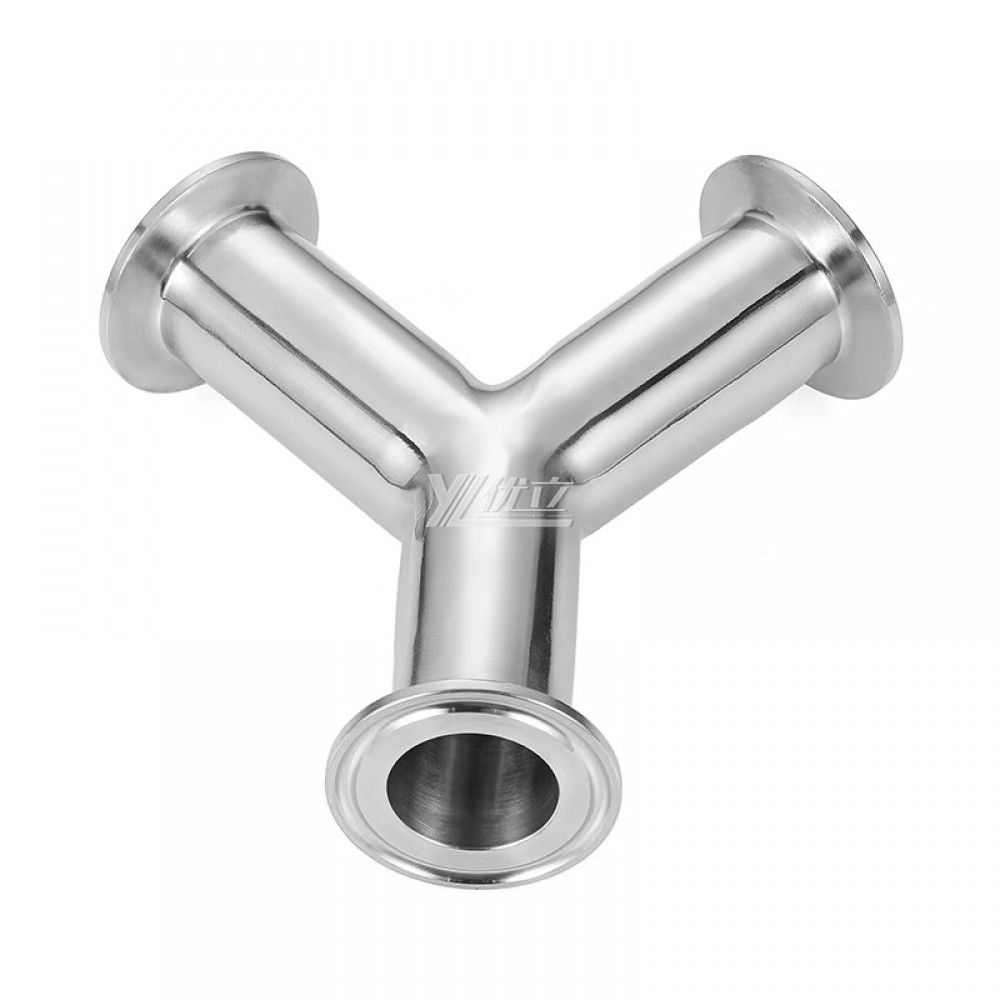

Product name:DIN High Quality Stainless Steel Sanitary Food Grade Y Type Clamping Tee
Stainless Steel Sanitary Clamping Tee
DIN High Quality Sanitary Food Grade Y Type Tee

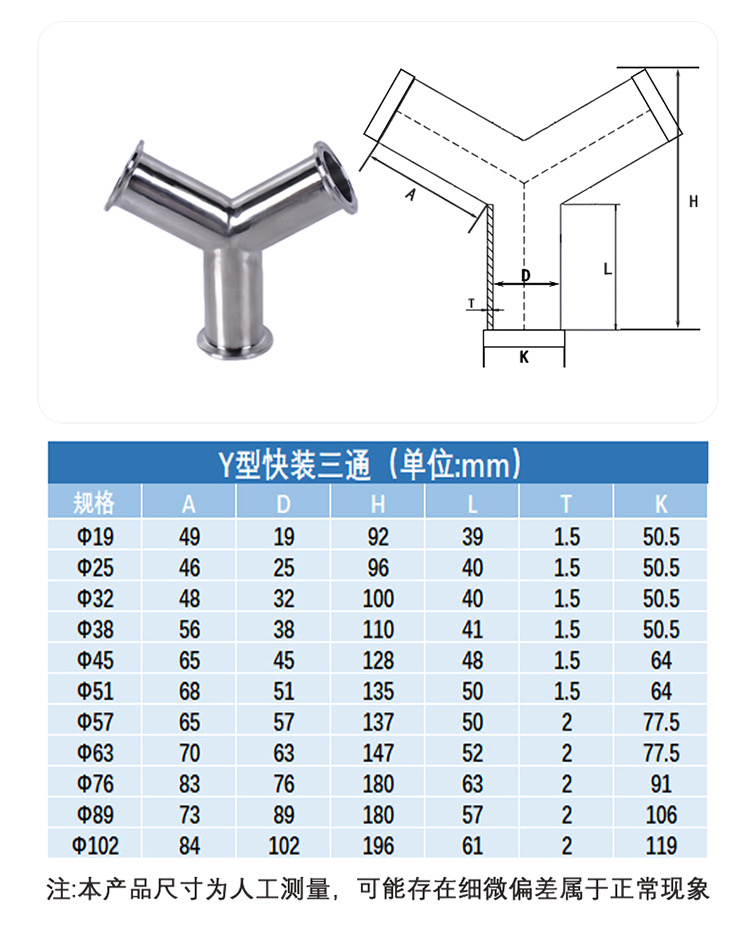

Technical Parameter
| Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Available Polishing | 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished |
| Type of reducer | Concentric,Eccentric |
| Available Thickness | 1.5MM,1.65MM,2MM,2.5MM,3MM |
| Sorts of elbow | With/Without straight ends |
| Temperature Range | -20degree Celsius~135degree Celsius |
| Pressure range | 0bar~10bar |
| Inside and outside(mirror finish) | RA ≤ 0.8um |
| Inside(mirror finish) and outside(matt finish) | RA ≤ 0.8um |
| Inside and outside Electrolytic polishing | RA ≤ 0.8um |
| DIN Specifcation | DN20>DN15 |
| DN25>DN20 | |
| DN32>DN20 | |
| DN32>DN25 | |
| DN40>DN20 | |
| DN40>DN32 | |
| DN50>DN25 | |
| DN50>DN32 | |
| DN50>DN40 | |
| DN65>DN25 | |
| DN65>DN32 | |
| DN65>DN40 | |
| DN65>DN50 | |
| DN80>DN40 | |
| DN80>DN50 | |
| DN80>DN65 | |
| DN100>DN50 | |
| DN100>DN65 | |
| DN100>DN80 | |
| SMS Specificaion | 1 1/2">1" |
| 2">1" | |
| 2">1 1/2" | |
| 2 1/2">2" | |
| 3">2" | |
| 3">2 1/2" | |
| 4">2" | |
| 4">2 1/2" | |
| 4">3" |
Applications
The products are treated with high-grade polishing equipment inside and outside to meet the requirements of surface precision; this product is suitable for stainless steel pipe system in dairy, food, beer, beverage, pharmaceutical, cosmetics and other industries
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
