Model NO.:D002003001D
Pur Qty. / Ref FOB Price
1 PieceUS $144.93-289.86 / Piece
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:100sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Mixer Type:Powder Mixer
Working:High Speed Mixer
Stirring Type:Forced
Application:Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Certification:ISO, SGS
Application Area:Engineering & Construction
HS Code:8413709990
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D002003001D
Layout TypeVerticle
Mixing Drum ShapeDisc
Additional CapabilitiesMilling
Operating typeCycle Operating
ConditionNew
MaterialSs304,Ss316L
MotorABB Motor
Power120degree Celsius
ConnectionClamp,Threaded
Capacity10ton, 20ton, 30ton, 40ton, 50ton
StandardSMS,DIN
Pressure0-10bar
ModelHhb-10~Hhb-50
Hopper Volumn45L~65L
HS Code8413709990
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

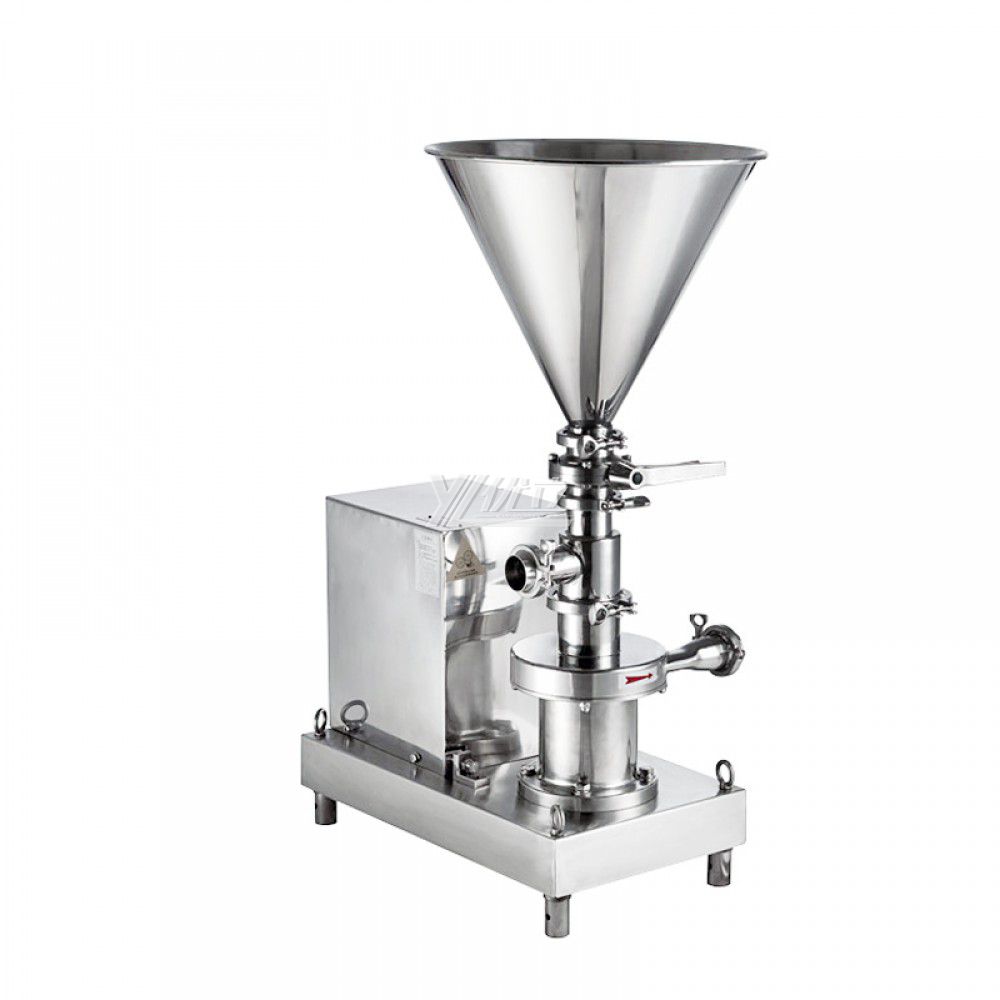

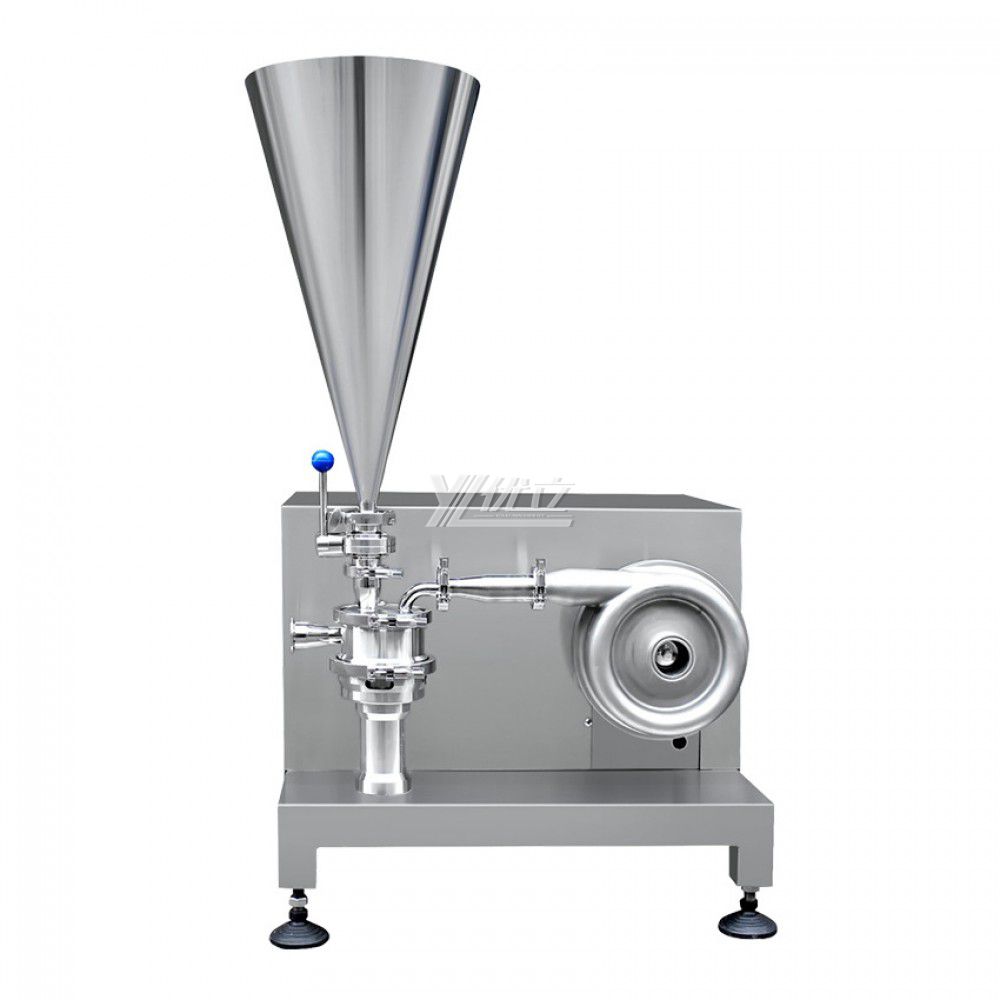

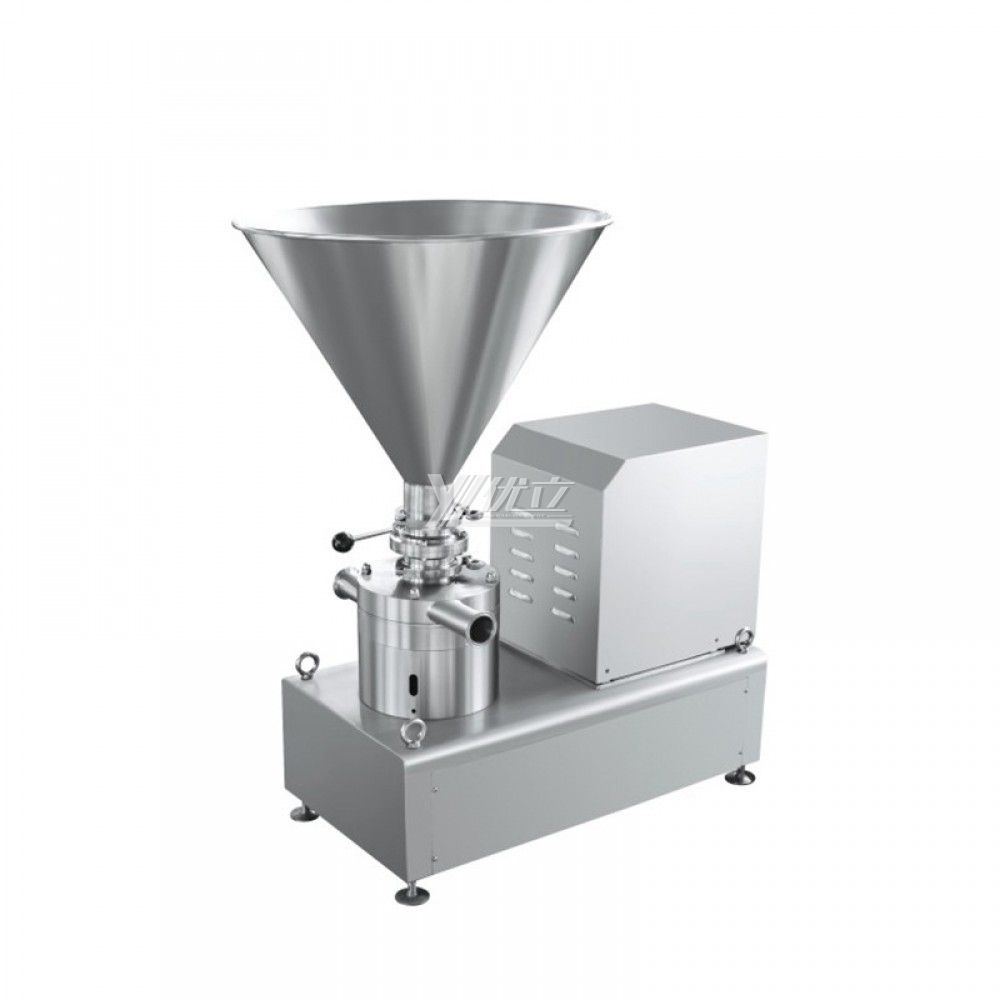

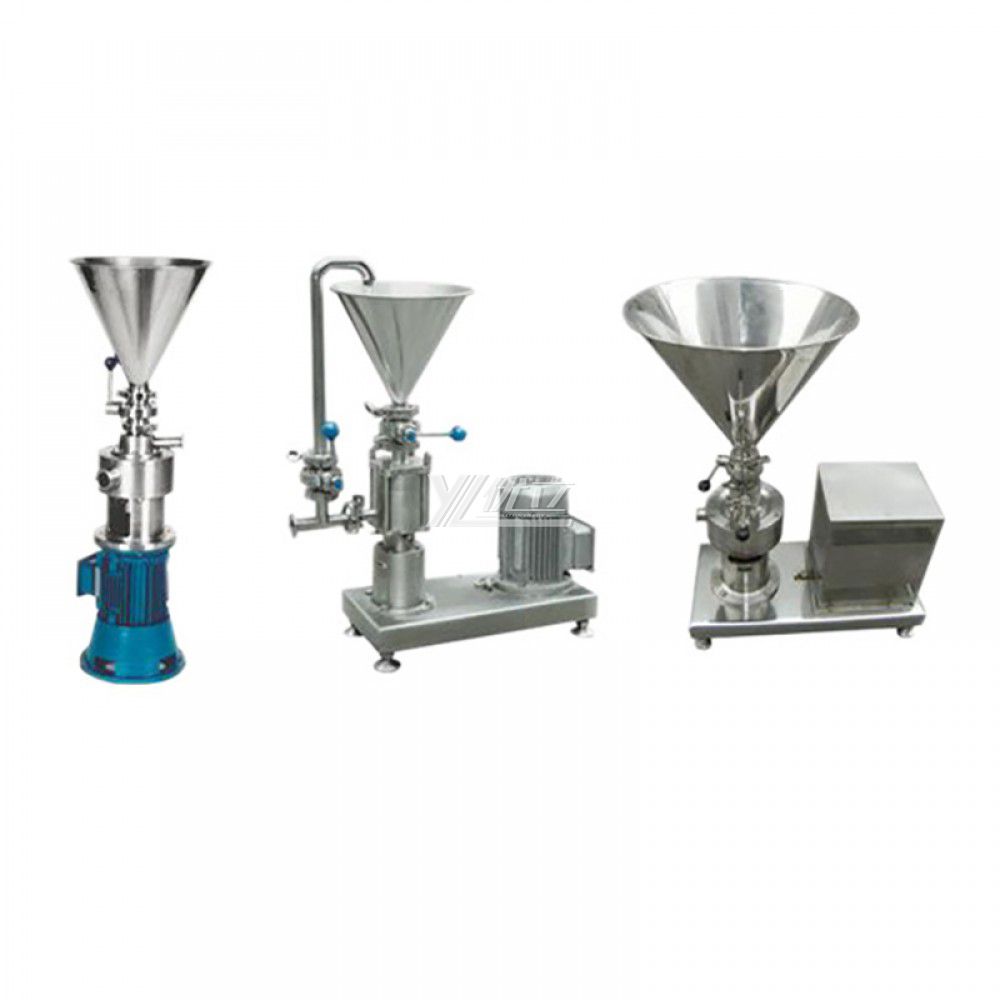

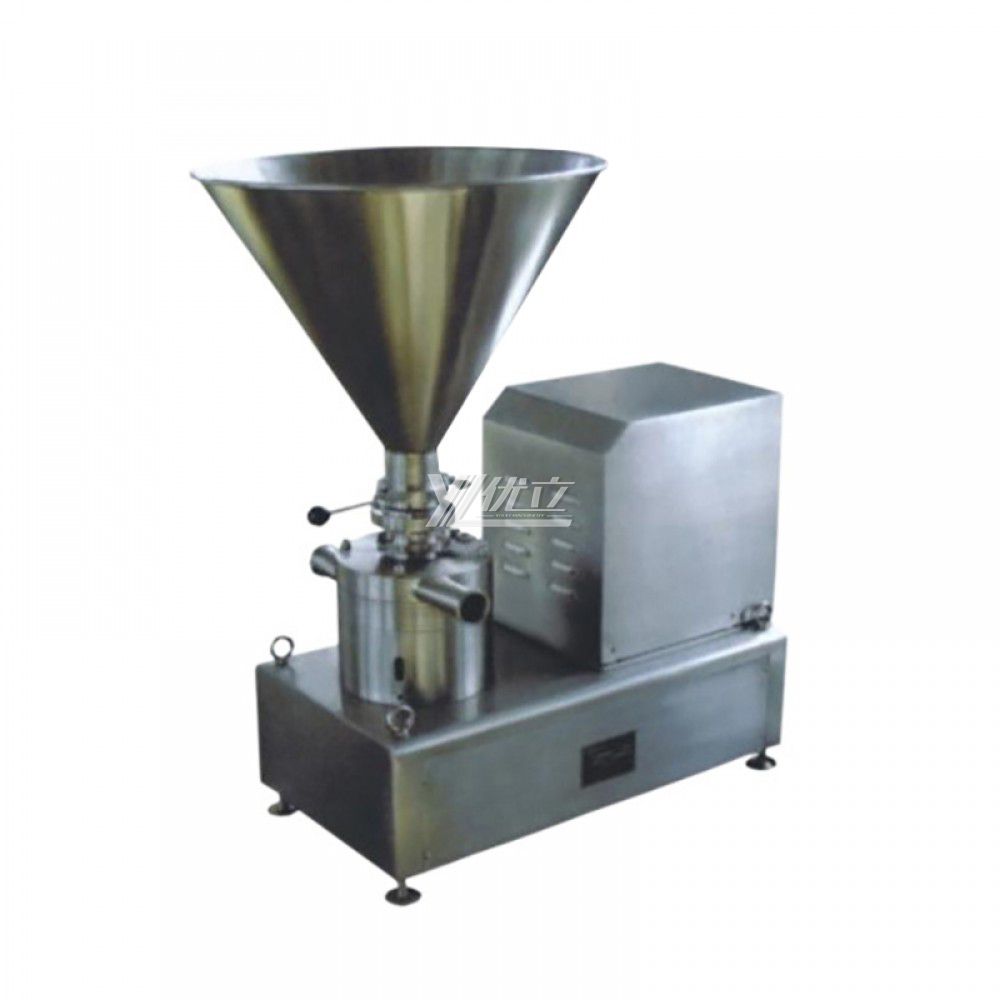

Products Name:Food Grade Sanitary Stainless Steel Liquid Blenders Mixing Pump
Milk Centrifugal Pump With Closed Impelle
Stainlss SteelSanitary Milk Centrifugal Pump impelle

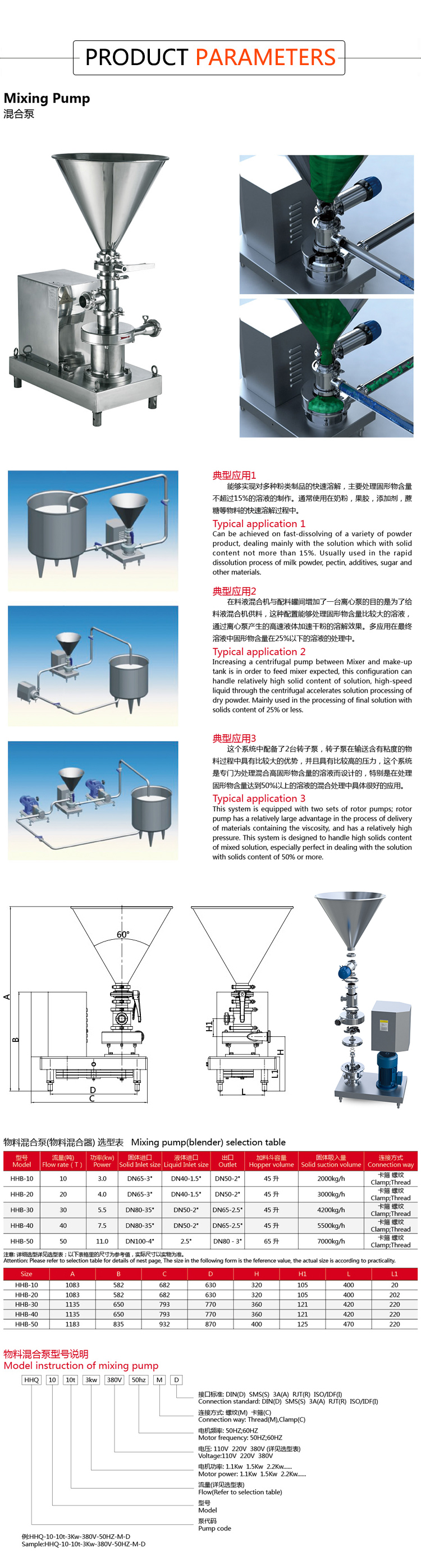

Technical Parameter
| Model | Flow Rate(T) | Power(KW) | Solid Inlet Size | Liquid Inlet Size | Outlet | Hopper Volumn | Solid Suction Volumn | Connection Way |
| HHB-10 | 10 | 3.0 | DN65-2.5" | DN40-1.5" | DN50-2" | 45L | 2000kg/h | clamp.thread |
| HHB-20 | 20 | 4.0 | DN65-2.5" | DN40-1.5" | DN50-2" | 45L | 3000kg/h | clamp.thread |
| HHB-30 | 30 | 5.5 | DN80-3" | DN50-2" | DN65-2.5" | 45L | 4200kg/h | clamp.thread |
| HHB-40 | 40 | 7.5 | DN80-3" | DN50-2" | DN65-2.5" | 45L | 5500kg/h | clamp.thread |
| HHB-50 | 50 | 11.0 | DN100-4" | DN65-2.5" | DN80-3.5" | 65L | 7000kg/h | clamp.thread |
Applications
1- The Mixers are used for solid in liquids.
2- In the food-processing industry,they provide a perfect solution for reconstituting powdered milk,making syrups,preparing brines,etc.
3- They can also be a solution for preparing solid-liquid mixtures in the phamaceutical,cosmetics and chemical industries.
Material
1- Parts in contact with the media:AISI304,AISI316L
2- Gasket:EPDM according to FDA
3- Mechnical seal(Standard):C/St St/EPDM
4- Inside Finished:Mirror Finished≤0.8um
5- Outside Finished:Mirror Finished
Design and Features
1- Simple and versatille assembly for quick and homogeneous mixing of a great variety of solids without contact with the air.Complete mixing with reciculation of the material.In some application,it can be used in line with reciculation.
2- 3A Sanitary design
3- Easy assembly and disassembly by clamp connections.
4- Cleaning can ve carried out without disassembly the unit.
5- Sanitary single mechnical seals
Operating Principle
| 1- The Mixer basically consists of a casing and a centrifugal pumps impeller which are mounted vertically.The suction side has a double-wall tube that keeps the inlet of solids separate from that of liquids,thus avoiding the formation before the material enters the casing. |
| 2- The liquid enters the mixing chamber at a high velocity,thereby creating a vacuum on the center of the impeller,which causes the suctions of the solids,The fall of the solids can be regulated by means of a valve situated at the bottom of the hopper. It is important to keep low pressure at the suction and at the discharge sides on the blender.Avoid cavitation,thus a feeding pump must be provided only for the applications that really require it(considerable pressure drops at the suction side,high viscosity products,ect.)Please,keep in mind that the suction capacity will decrease. |
| 3- When the discharge pressure is high,centrifugal pump needs to be fitted to the discharge side of the blender. |
| 4- For viscosities above 500 CP,the feeding pump and discharge pump must be positive displacement pumps. |
Option
| Dual cooled Seal |
| Connection:SMS,DIN |
| Pneumatic Actautor Valves |
| 60°Hopper |
| Screen in the mixing chamber |
| Drainage |
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
