Model NO.:D002004001D
Pur Qty. / Ref FOB Price
1 PieceUS $28.41-28.99 / Piece
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:1000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type:Self-priming Pump With Inner Recirculation
Air Engine Type:Fitted Motor
Theory:Gas-hydraulic Hybrid Type
Transmission:Direct Connection Transmission
Structure:The Slide
Material Stainless Steel:AISI316L
HS Code:8413709990
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D002004001D
Mechanical Seal(Standard)Double Mechanical Sealing
Capacity10ton/Hour~30ton/Hour
Temperature Range-10 Degree Celsius-140 Degree Celsius
Surface FinishingInside&Outside Mirror Polished or Sand Blasting Ou
Connection EndsTriclover, Butt Weld, Threaded, Union and Flange
Voltage220V, 380V, 440V, 480V, Ect
Impeller TypeOpen Impeller, Semi-Open Type Impel
Power2.2kw-7.5kw
HS Code8413709990
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

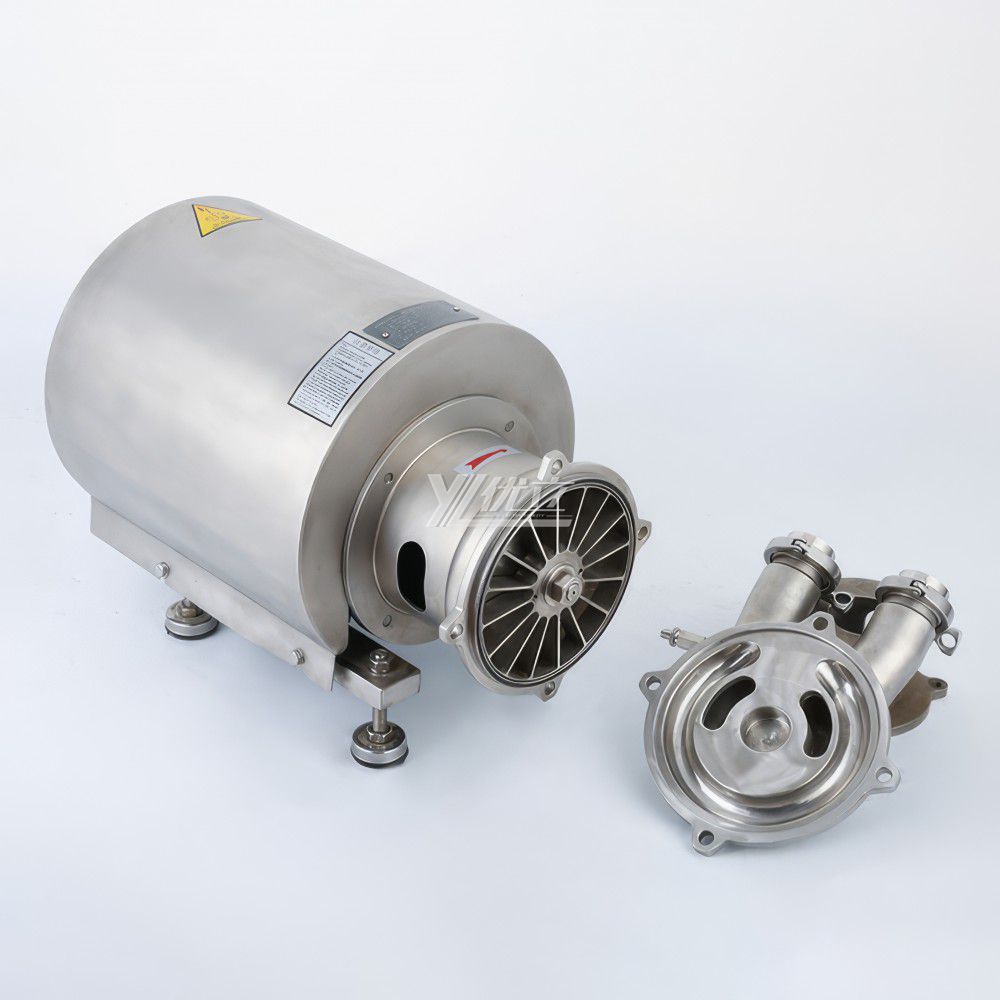

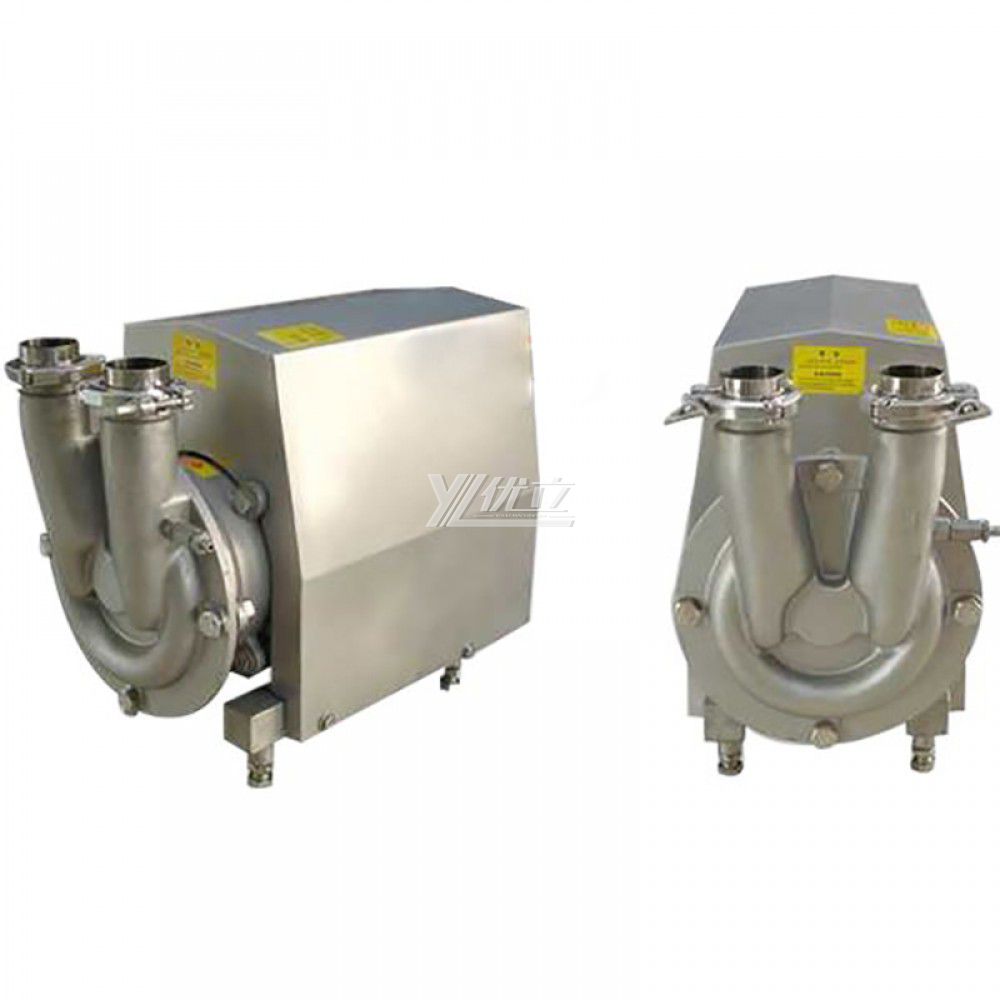

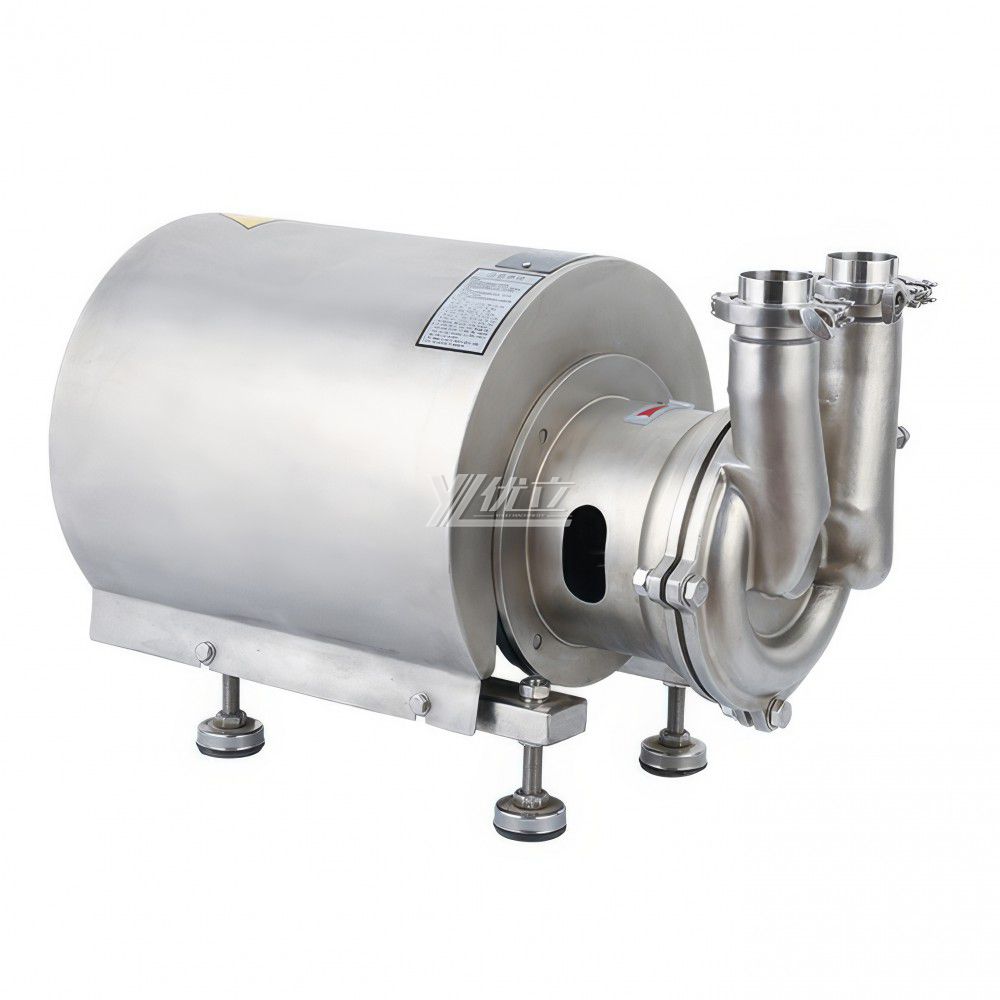

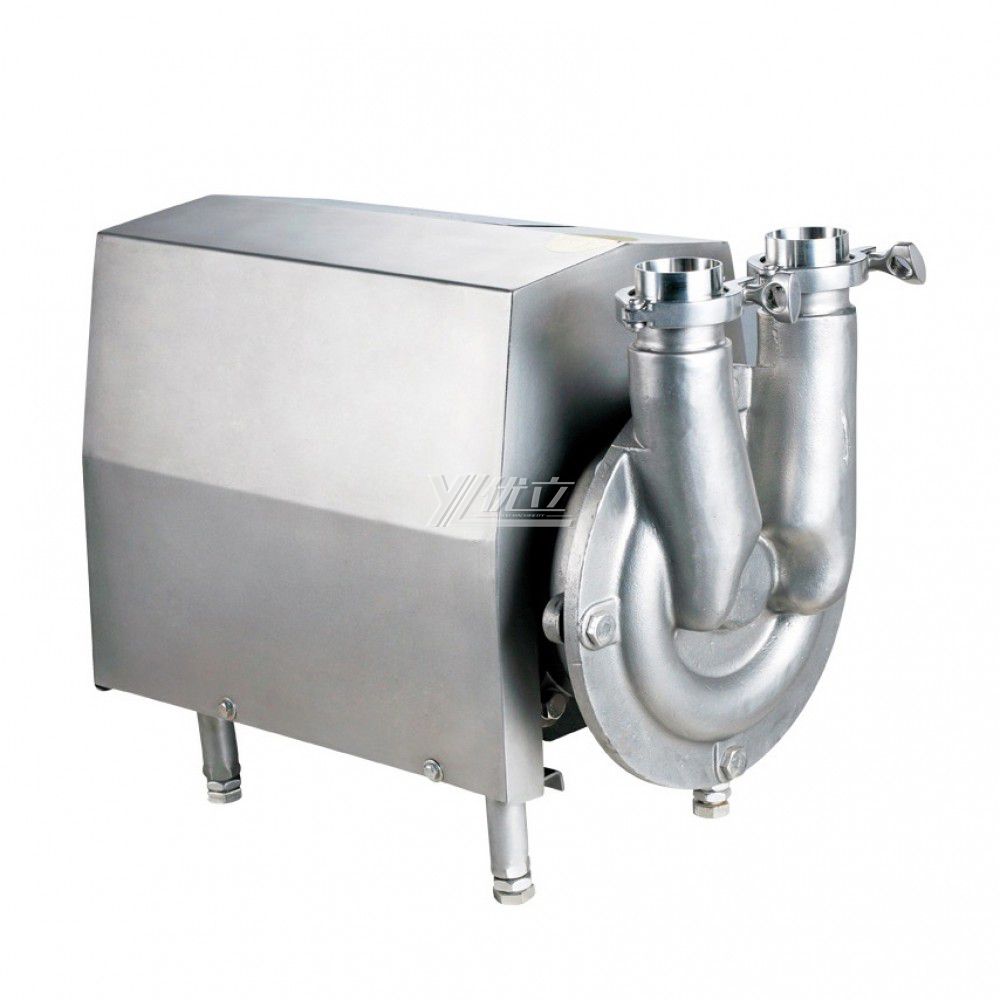

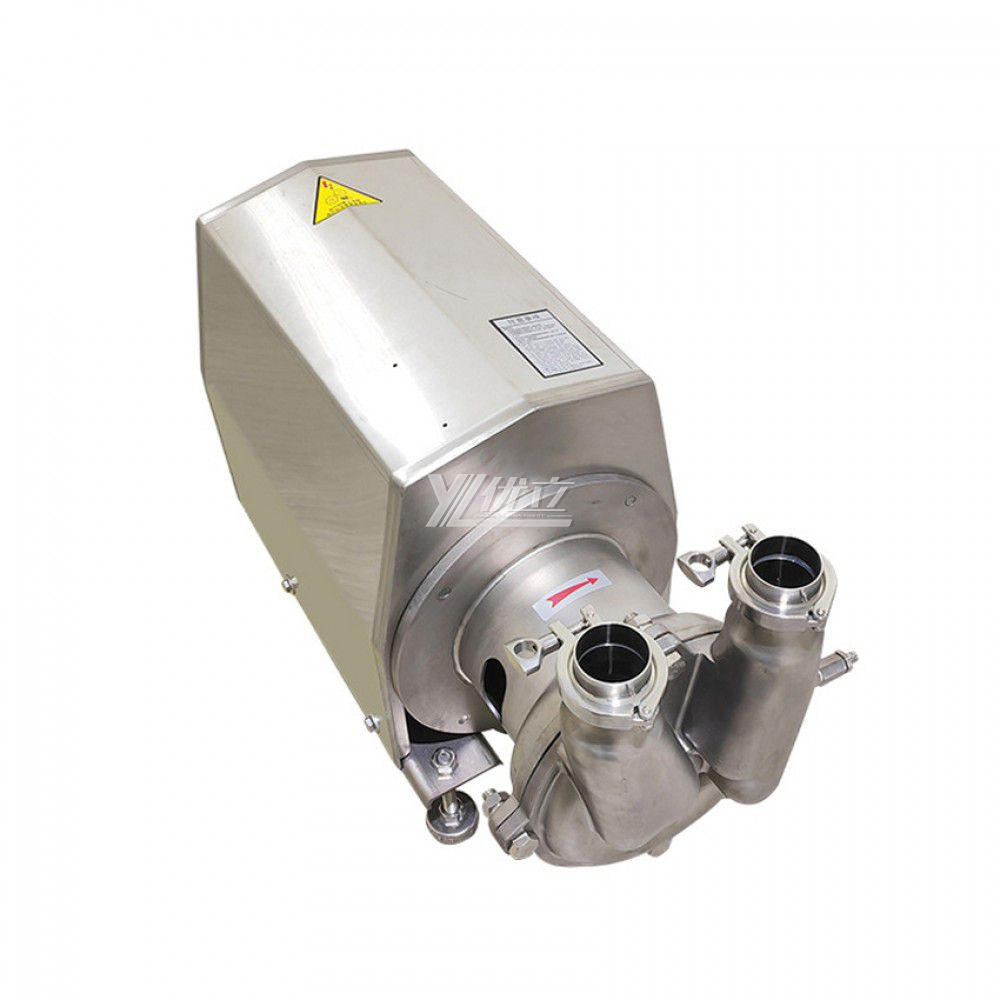

Products Name:Stainless Steel Sanitary CIP Self-Priming Pump
Milk Centrifugal Pump With Closed Impelle
Stainlss Steel Sanitary Milk Centrifugal Pump impelle

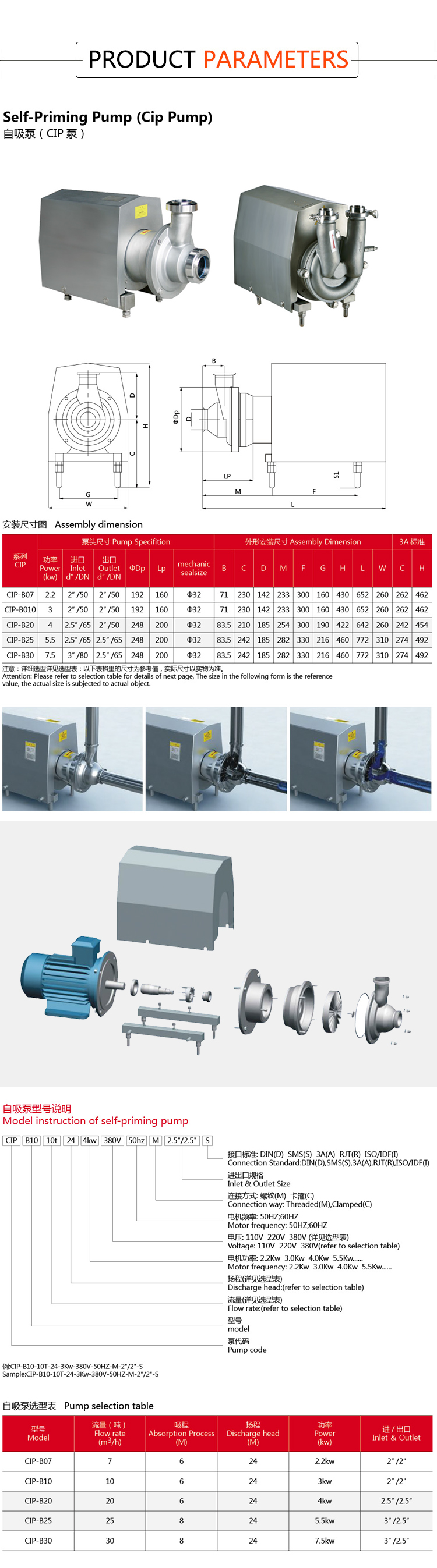

Technical Parameter
| Capacity | 10T-30T,2.2KW-7.5KW |
| Material | SUS316L |
| Standard | DIN,SMS |
| Impeller | Open Impeller |
| Surface Treatment | Mirror Polished is touch with liquid,and other parts is made of dull polsihed. |
| Shaft Sealing | Sanitary priming pump seal is mechanical seal,include the sanitionary ring ss316L steel embedded in grapgite structure,and the movable ring made of silicon carbide |
| Temperature Range | -10 degree celsius-140 degree celsius |
| Flushed Mechanical Seal | Water Pressure:Max 0.1Pa |
| Flow Rate:0.25-0.5L/min | |
| Working Pressure | ≤3KW,220-240V/380v-420V |
| >3kw,380V-420V/660-690V | |
| Frequency | 50HZ/60HZ |
| Working Method | Continuous(SI) |
| Rotate Speed | The standard rotate speed is 1450r/min |
| Connection ends | Triclover, Butt Weld, Threaded, Union and Flange |

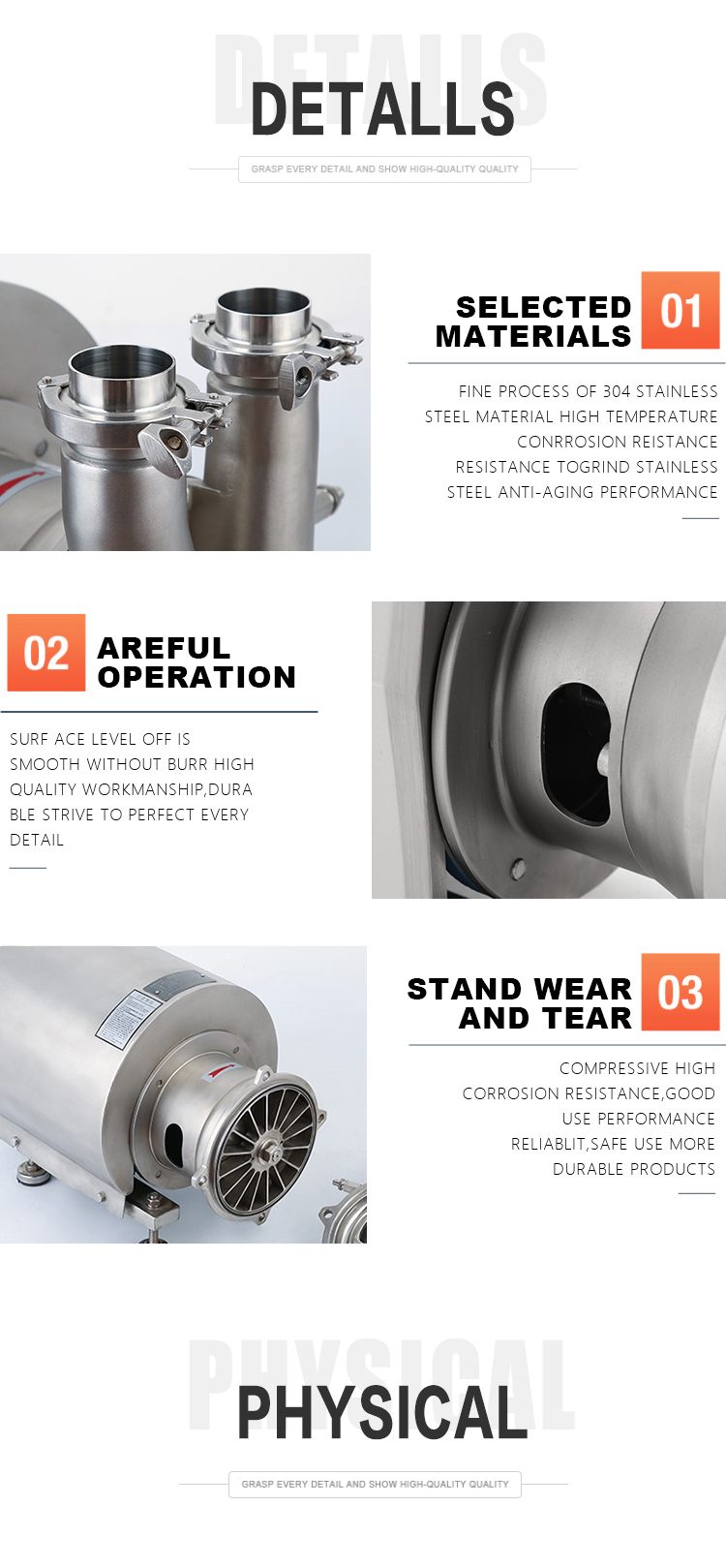

Advantage of Stainless Steel Sanitary CIP Self-Priming Pump
| 1.Configuration of "ABB" brand three-phase AC motor is in accordance with the international electrotechnical comission IEC60072 standard design comply with European "CE" marking requirements |
| 2.The explosion-proof motor also availabe,that can meet with the requirements of different applications. |
| 3.It with excellent electric performance,and with low noise,low vibration,the protection grade is IP55,insulation grade is F |
Applications
The pump is mainly used to deal with the convey of gas-bearing materials.So it is widely used in the occassions that the liquid level is instable,and the liquid level is lower than that of inlet to draw the material,and also used as reture in the CIP systerm.And it is the necessary convey equipment in the food,chemical,pharmacy fields.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
