Model NO.:D001002002002D
Pur Qty. / Ref FOB Price
1 PieceUS $5.8-43.48 / Piece
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:100sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Size:1/2"~4",Dn10~Dn100
Flow Medium Parts:304,304L,316L (1.4301,1.4307,1.4404)
Connection Ends:Butt-Welded,Tri Clamp,Male and Female Threa
Actuator:Pneumatic Ss Actuatorelectric Actuator,Manual
Continuous Working Temperature:-20 ~ 135degree Celsius(EPDM)
Working Pressure:0~10bar (Standard)
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D001002002002D
Position Sensor24V DC,NPN/PNP Position Sensor (2)
Flow TypeL,L/L,T/L,T,L/T,T/T
Connection StandardDIN, 3A, SMS, Rjt, Idf
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

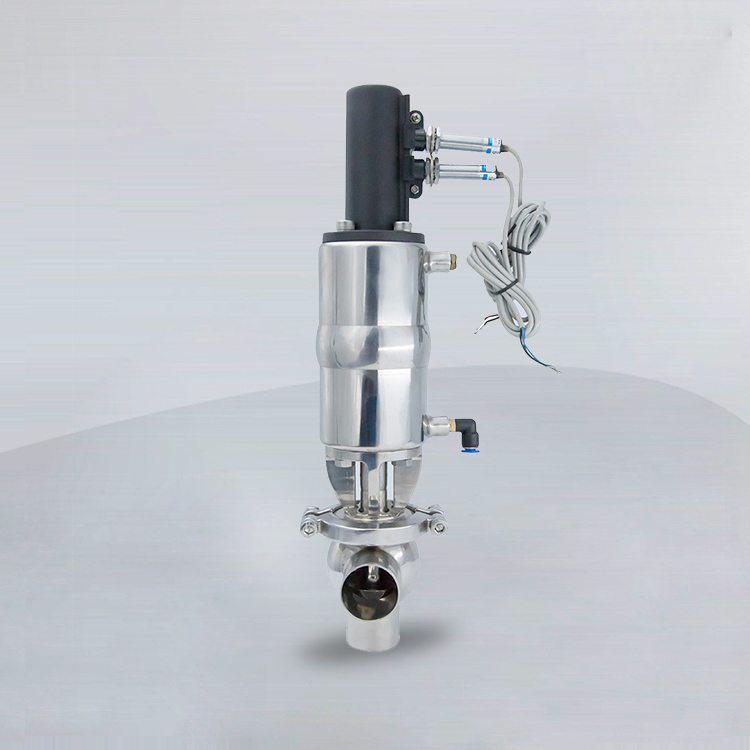

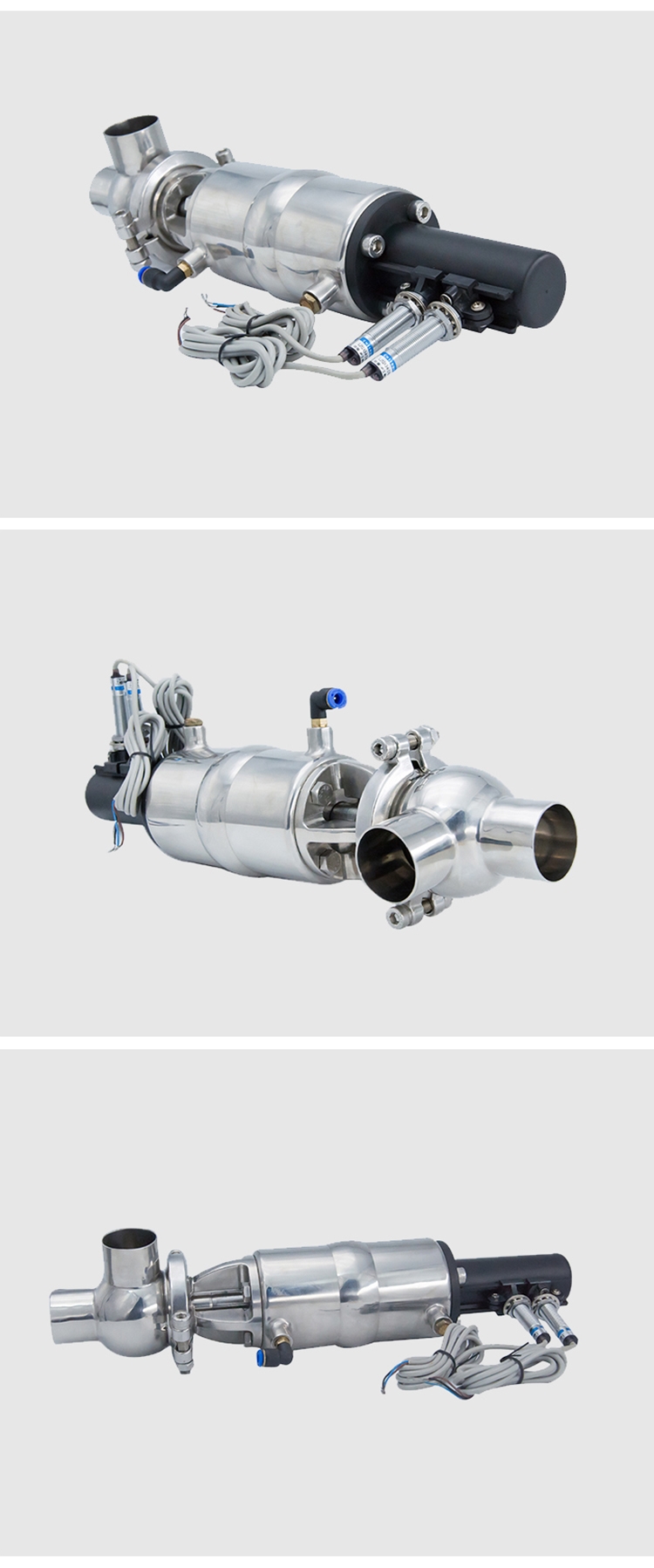

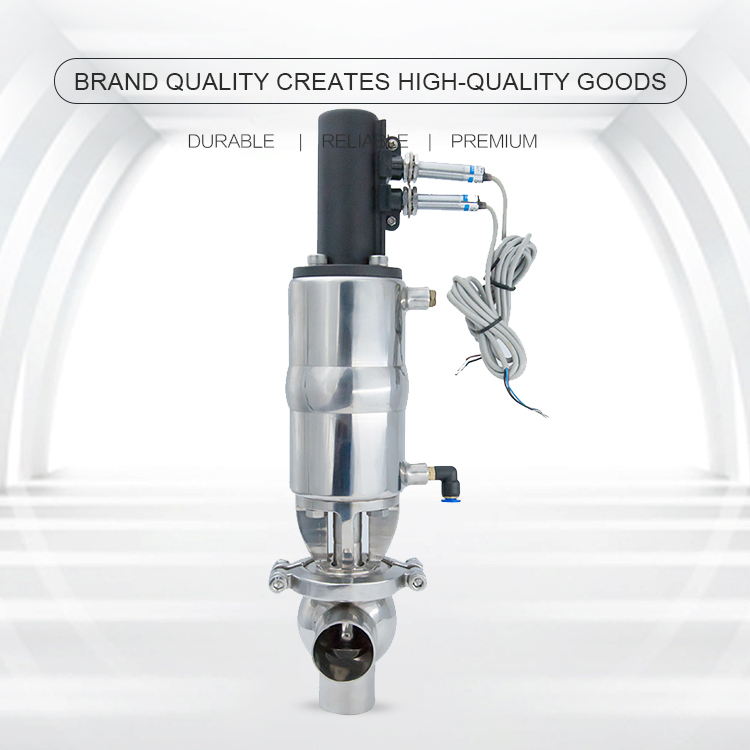

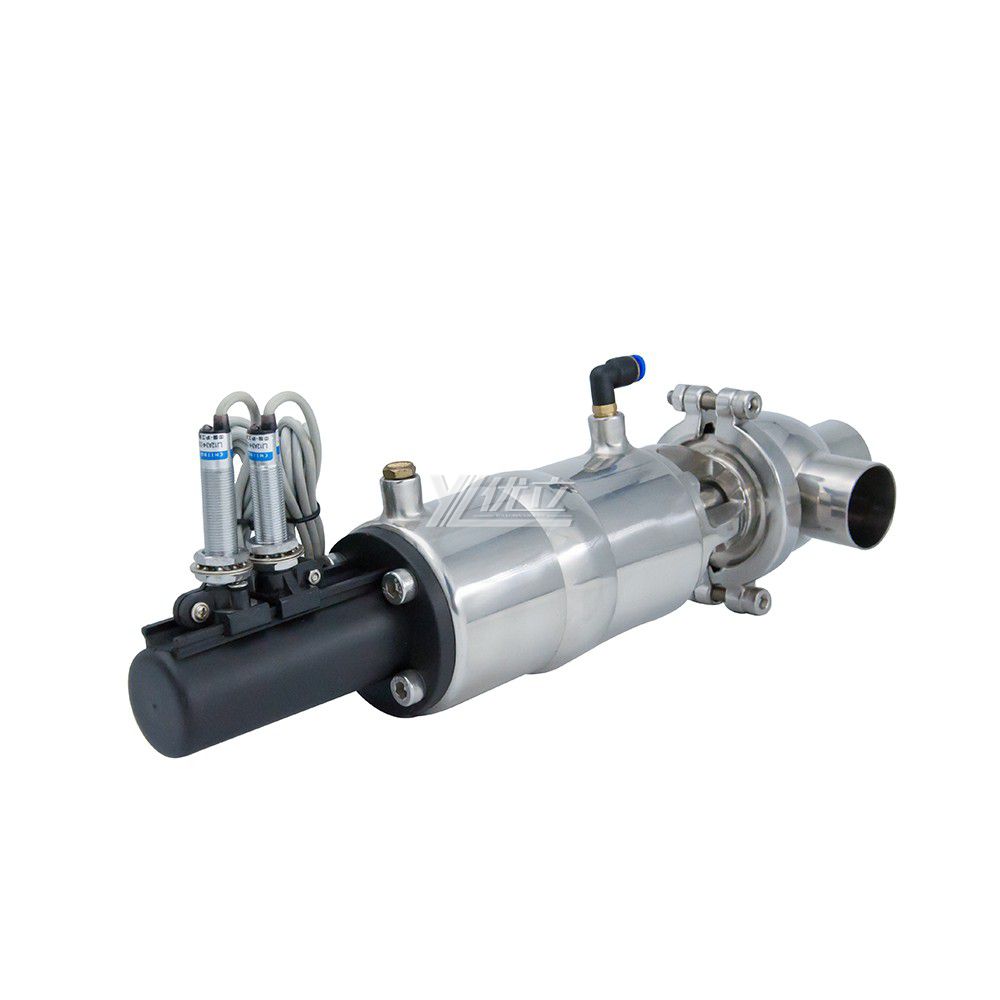

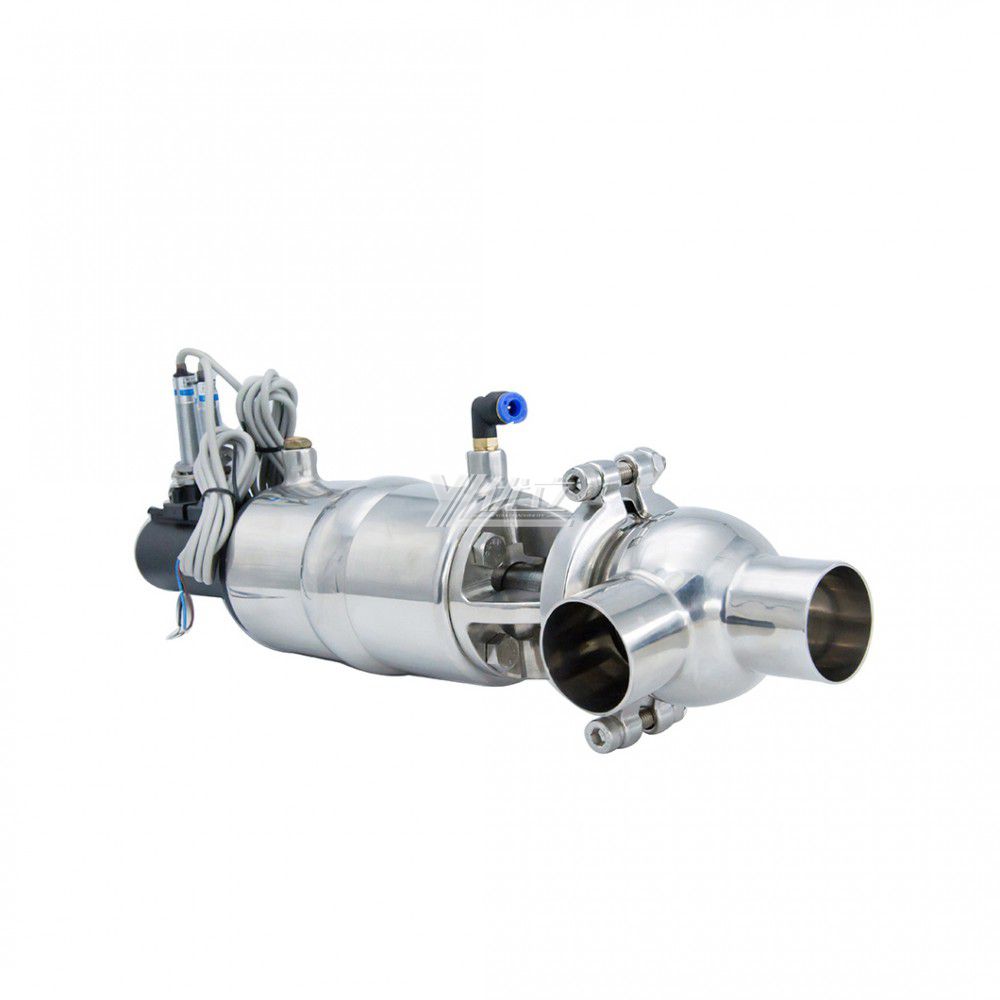

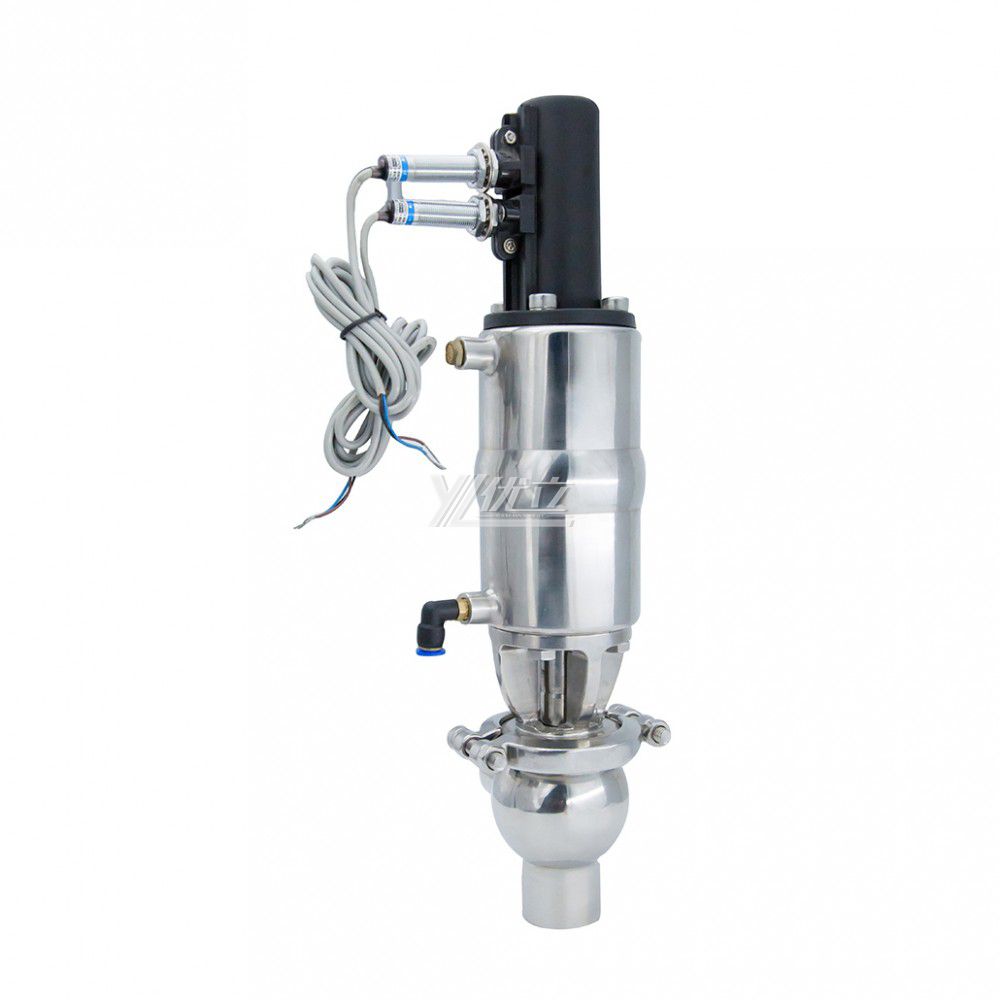

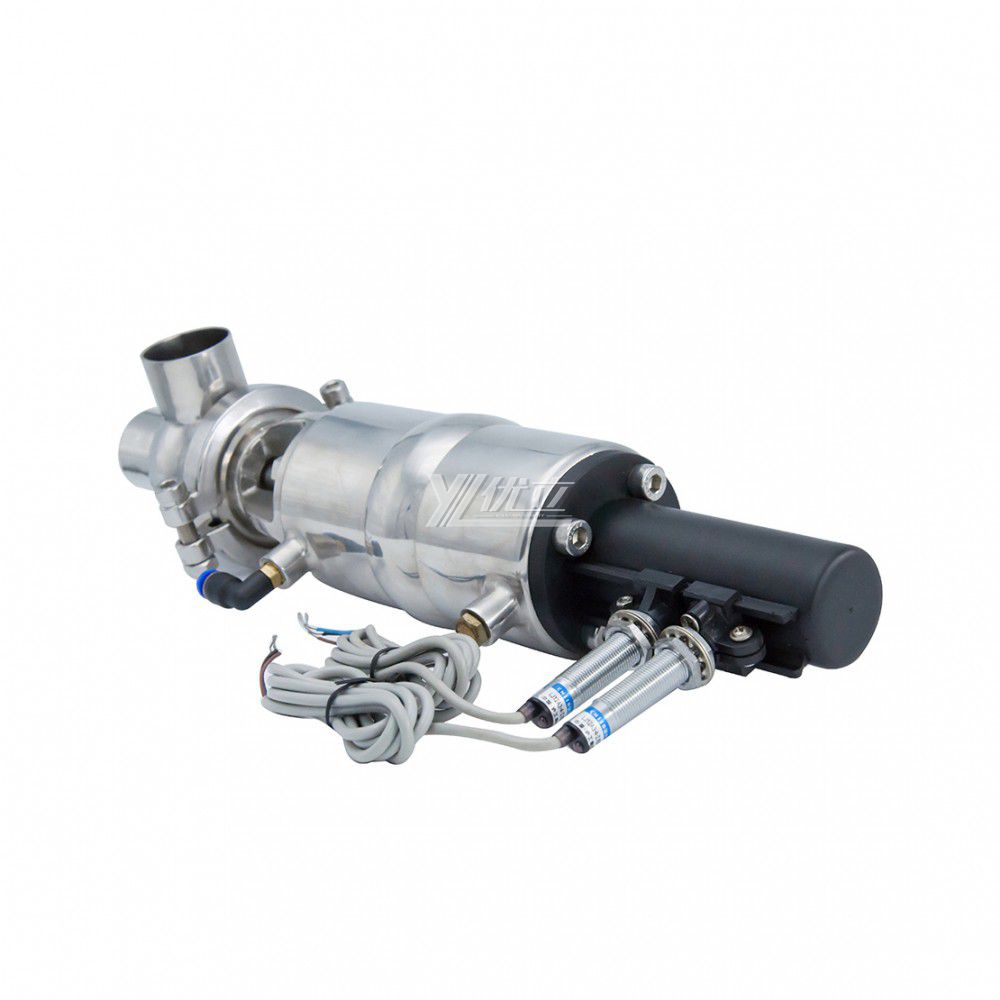

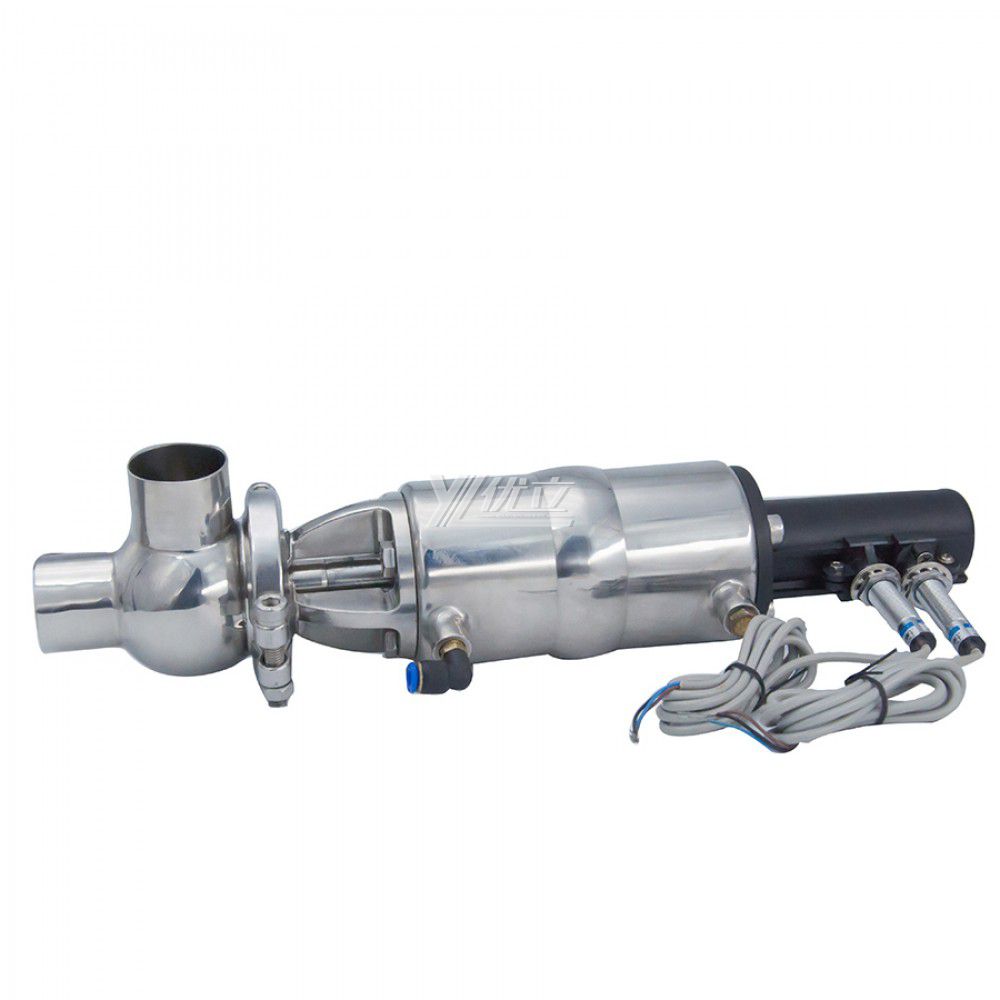

Products Name: Stainless Steel Hygienic SS304 Pneumatic Flow Diversion Valve
Stainless Steel SS304 Pneumatic Flow Diversion Valve
Stainless Steel Hygienic SS304 Pneumatic Diversion Valve

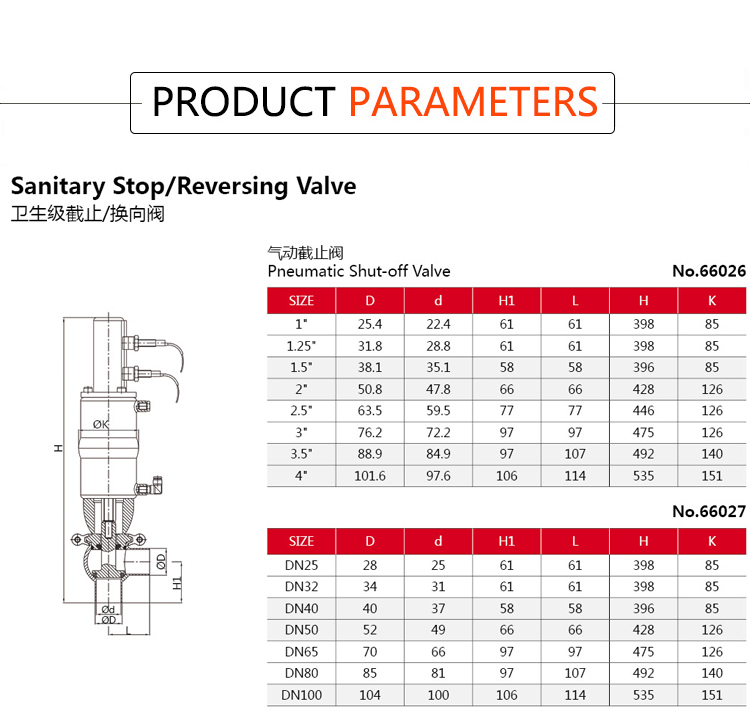

Technical Parameter
| Size available | 1/2"~4",DN10~DN100 |
| Max. working pressure | 147psi (10bar) |
| Control air pressure | 70 ~ 116psi (5 ~ 8bar) |
| Working temperature range | EPDM:-20 ~ 135°C |
| Sterilization temperature | 150°C, Max. 20 min |
| Pneumatic connection | R1/8" (BSP) |
| Finish Surface | <32Ra (<0.8um); Other finishes available upon request. |
| End connections | butt welded,tri clamp,male and female |
| Standard | DIN, 3A, SMS, RJT, IDF or others upon request |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.
Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
Sanitary reversing valve can
be installed with smart controller.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
