Model NO.:D001004002002D
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:1000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Actuator:Pneumatic
Connection:Threaded Triclamp, Welded
Material:Stainless Steel
Structure:Through Way Diaphragm Valve
Pressure:Ordinary Pressure
Flow Direction:Unidirection
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D001004002002D
FunctionSolenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type
UsageFlow Control
StandardDIN, GB, ANSI, BSW, JIS
Valve Body MaterialSs316L
Availably Standard3A/Bpe/DIN/ISO/Idf/SMS
Seal MaterialPTFE + EPDM (Double Layer) / EPDM / Silicon / FPM
Availably Size1"-3", Dn20-Dn65
Availably ConnectionClamp/Weld/Thread/Special Connection
OperatedManual, Pneumatic for Pulse Jet Diaphragm Valve
Availably StructureStraight, Tee, U-Type, Tank Bottom
Max. Working Pressure10bar
Max. Working Temperature120 Degree C
Application ScopeDairy, Food, Beverage, Pharmacy, Cosmetic, etc
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

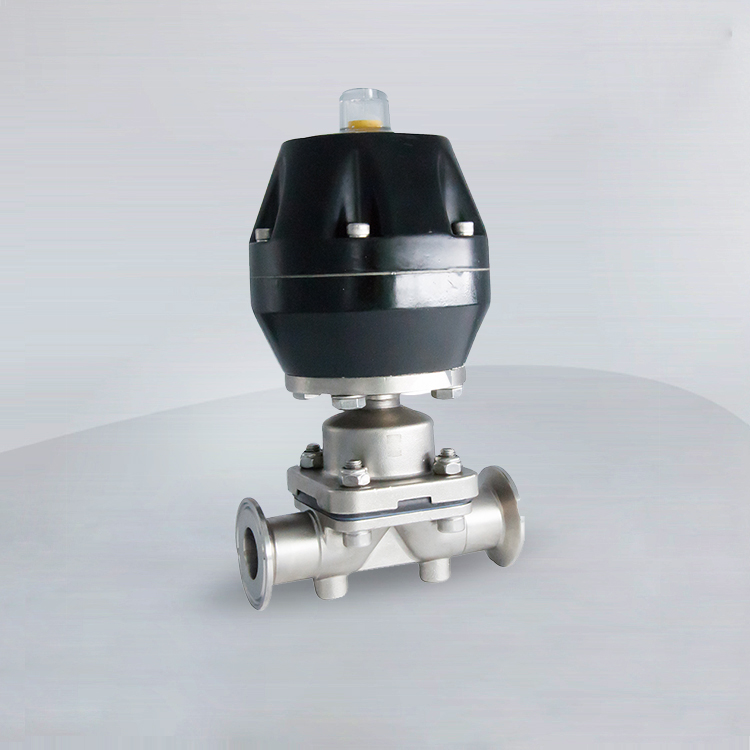

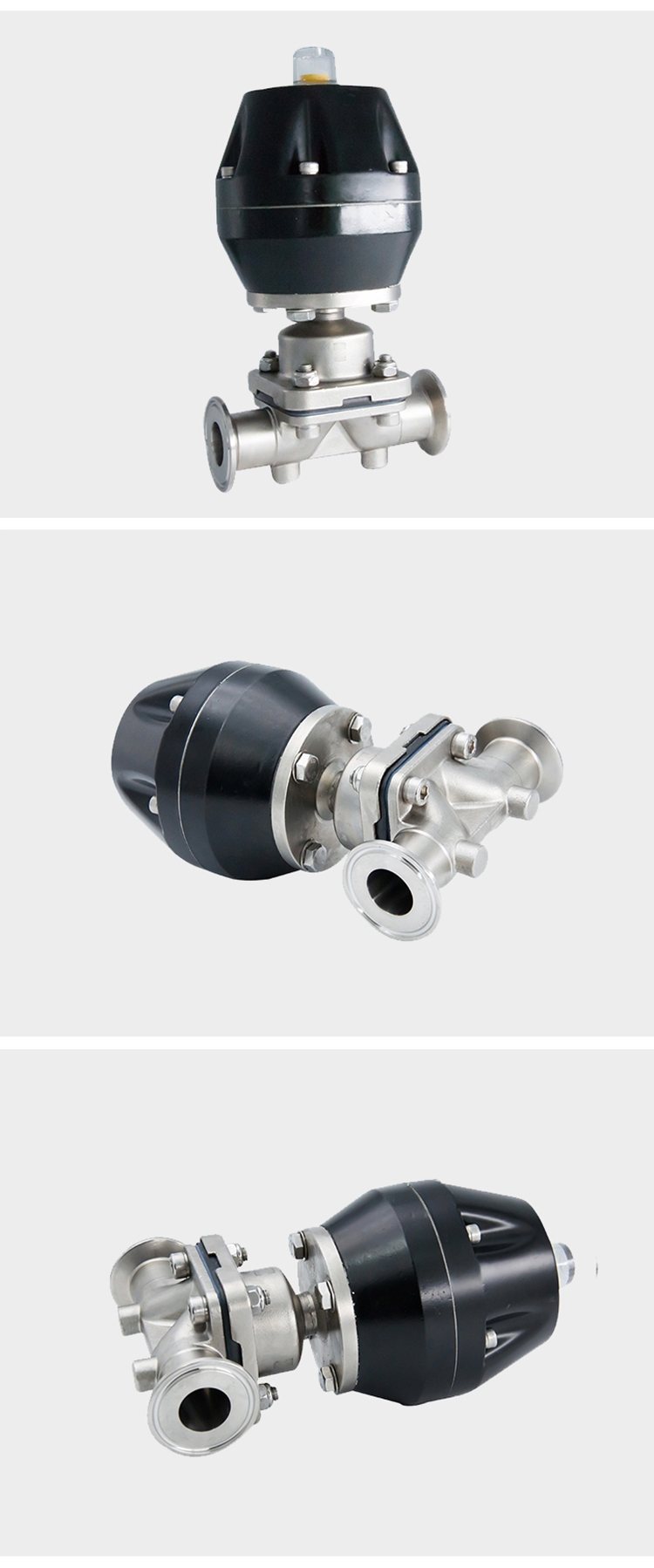

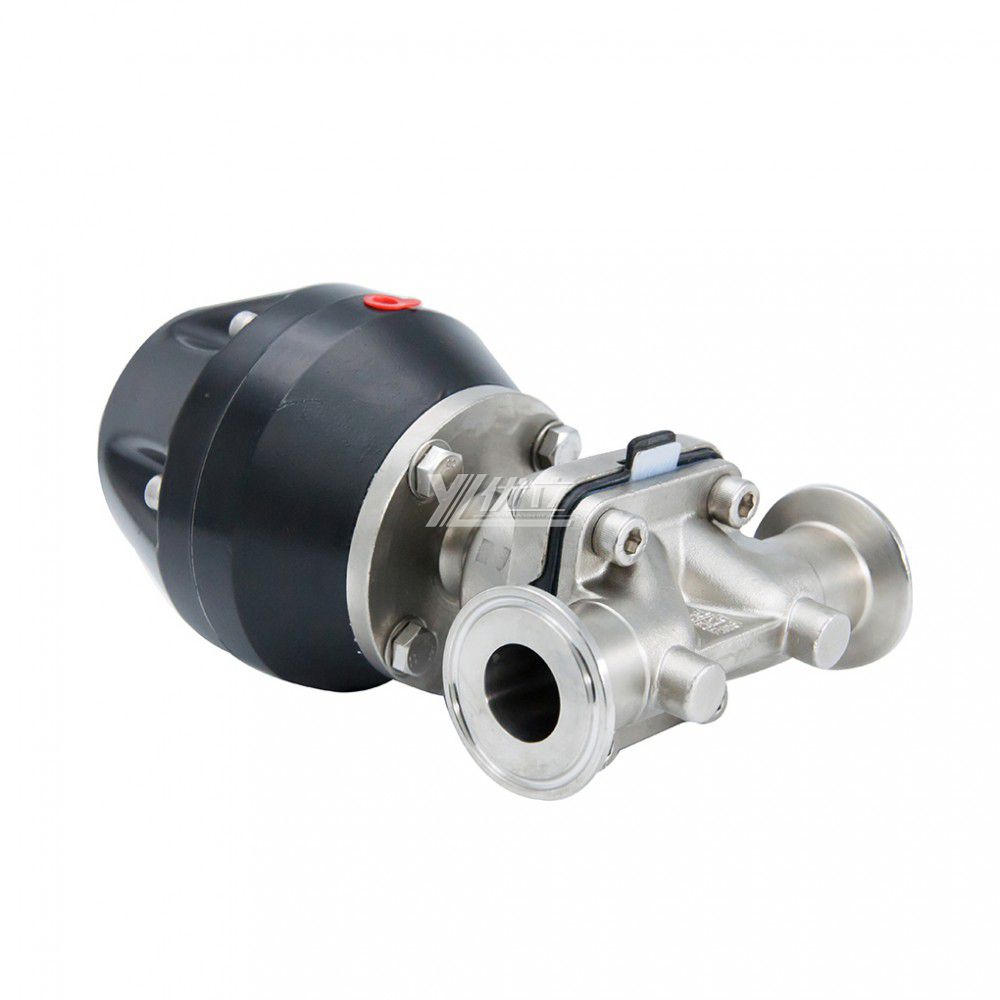

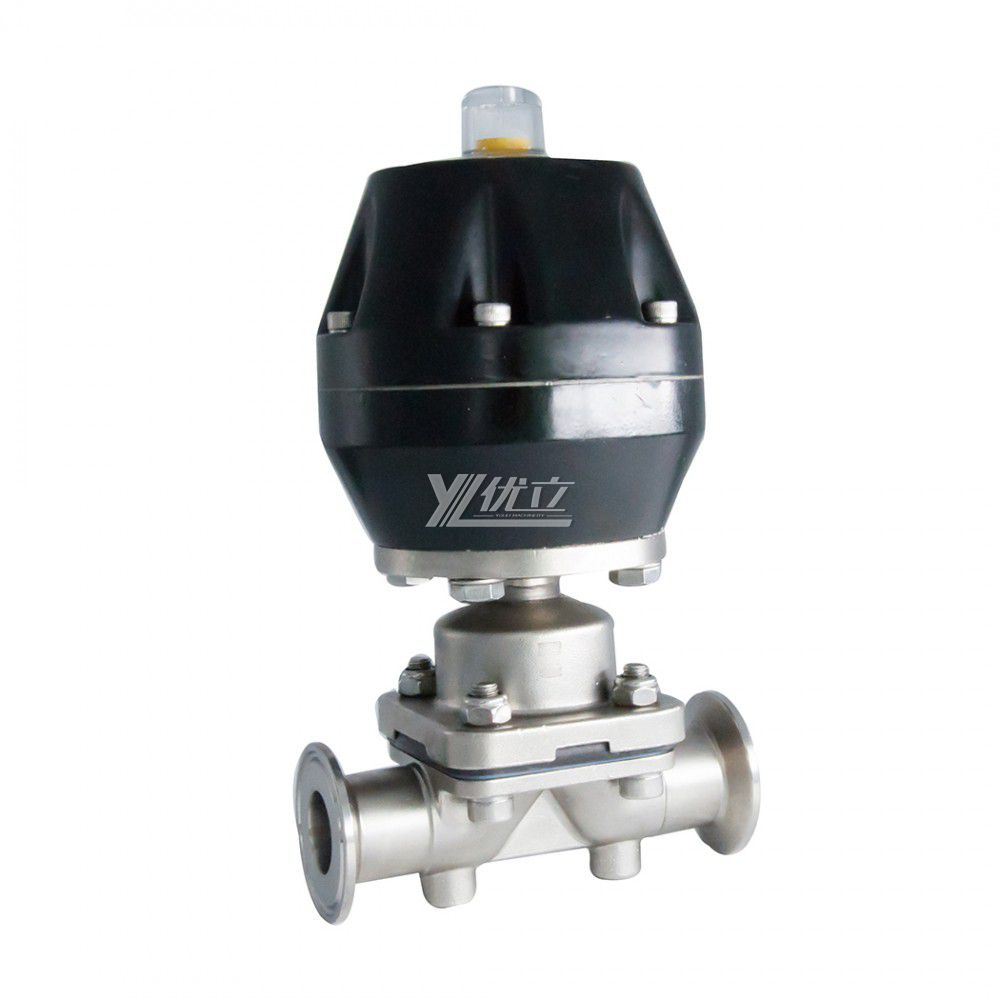

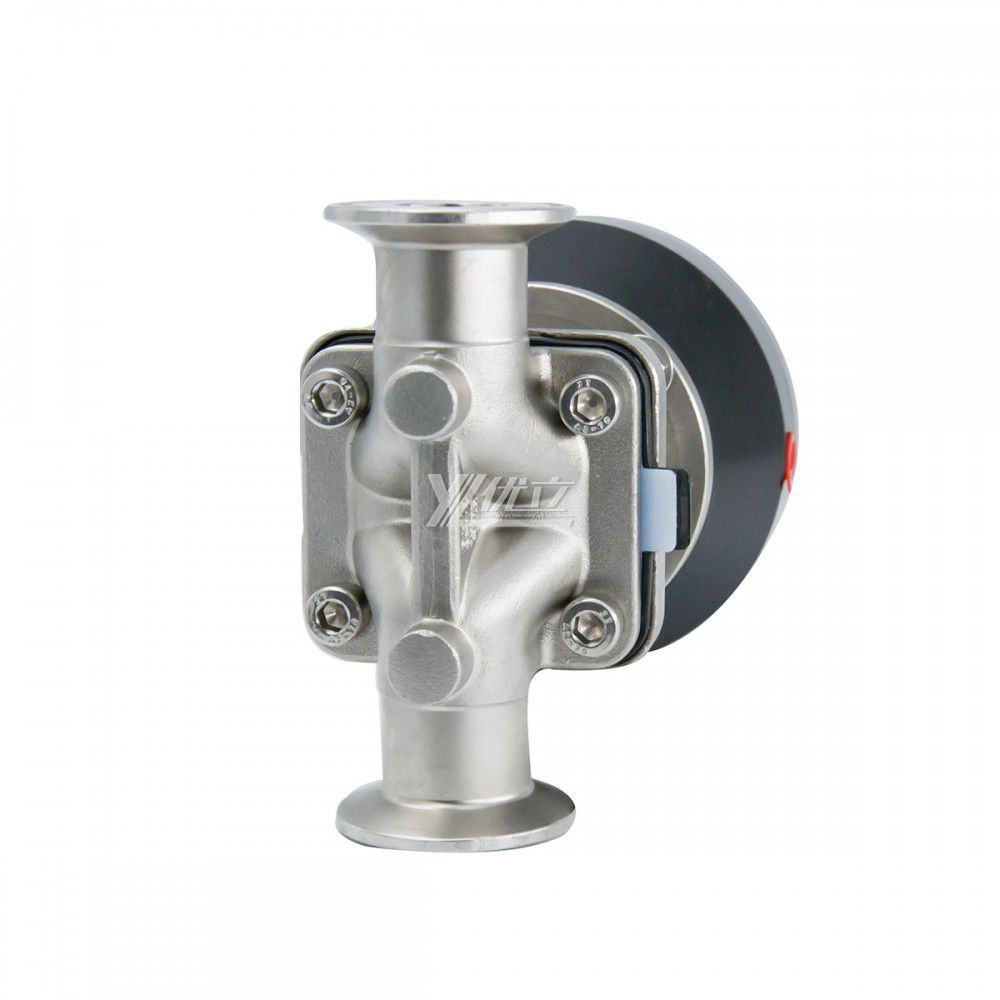

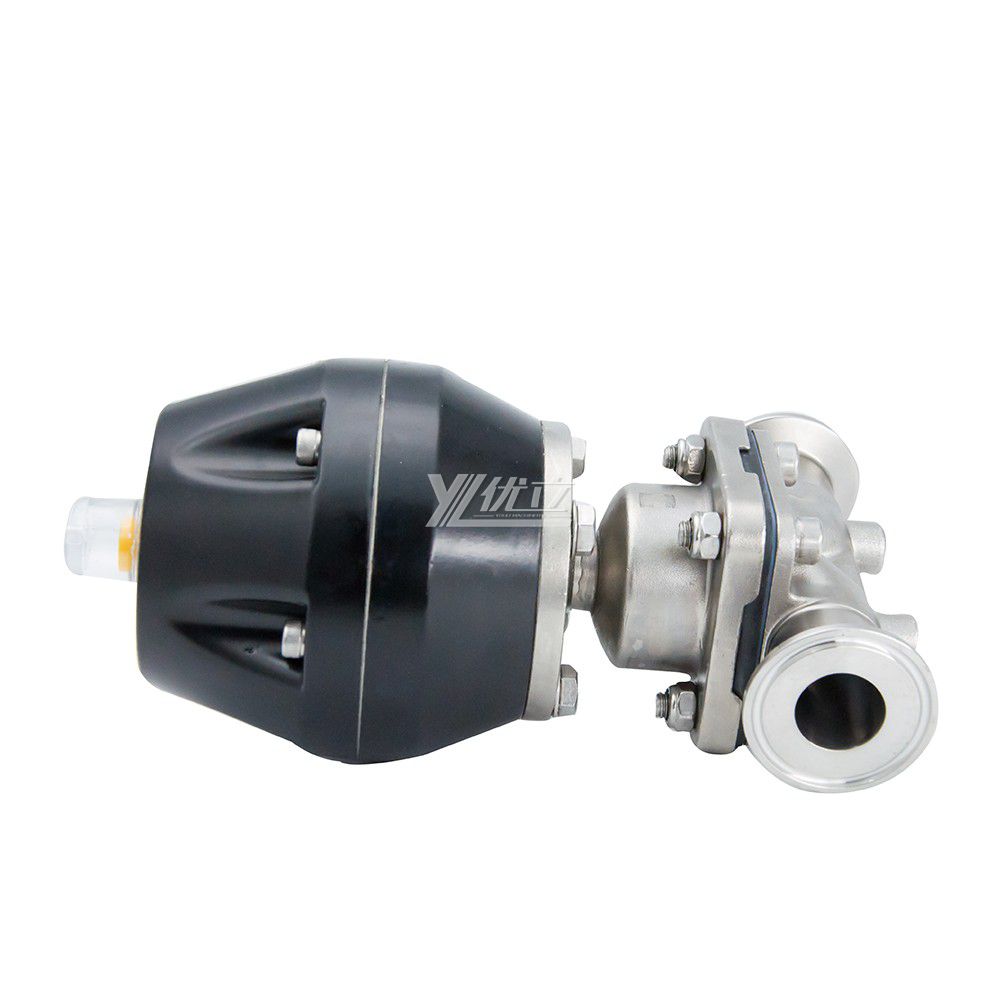

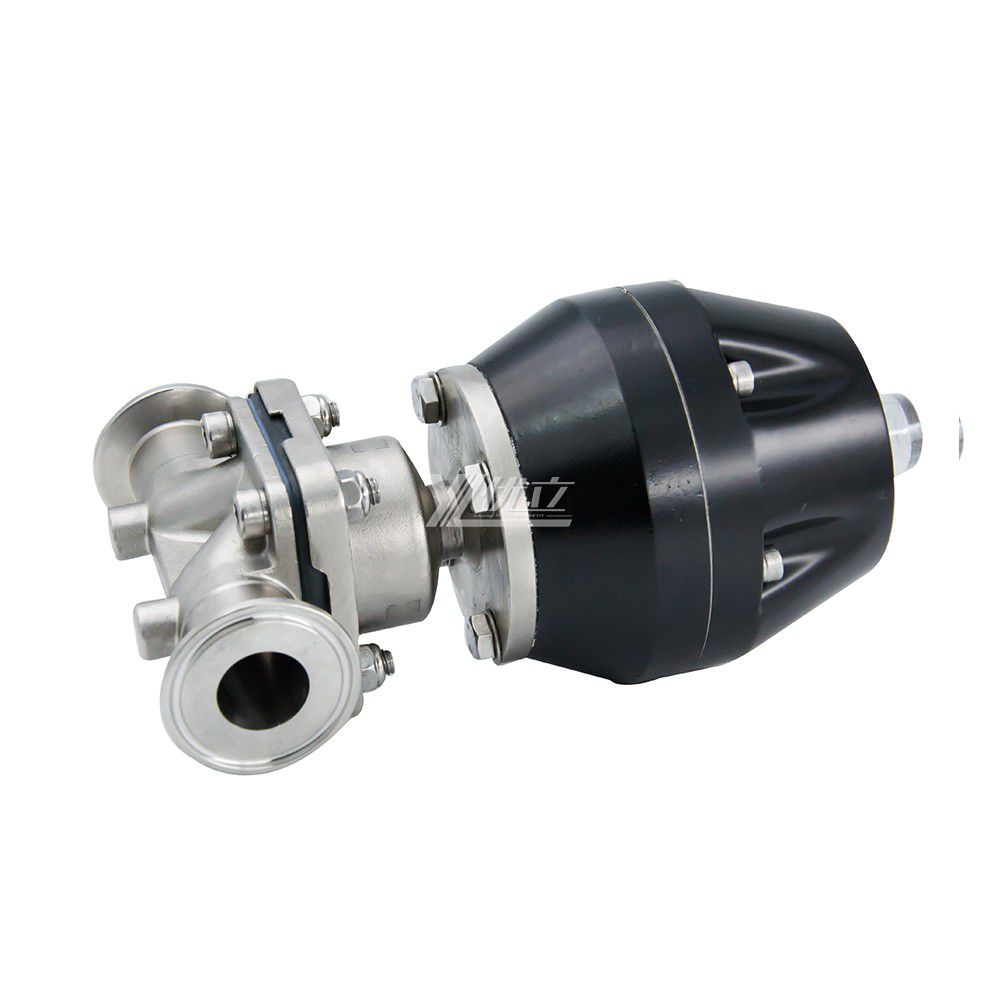

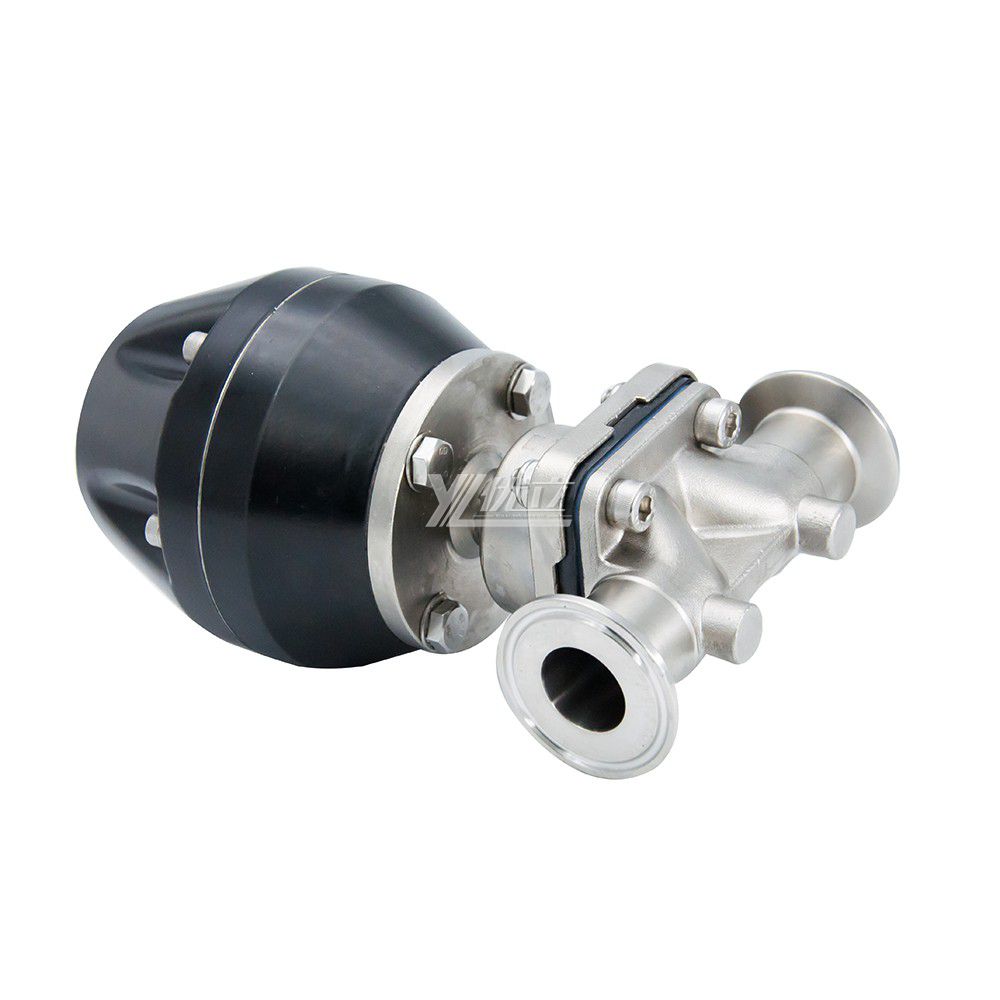

Products Name:Stainless Steel SS316L Pneumatic Diaphragm Valve with Plastic Actuator
Pneumatic Diaphragm Valve with Plastic Actuator
Stainless Steel SS316L Pneumatic Diaphragm Valve

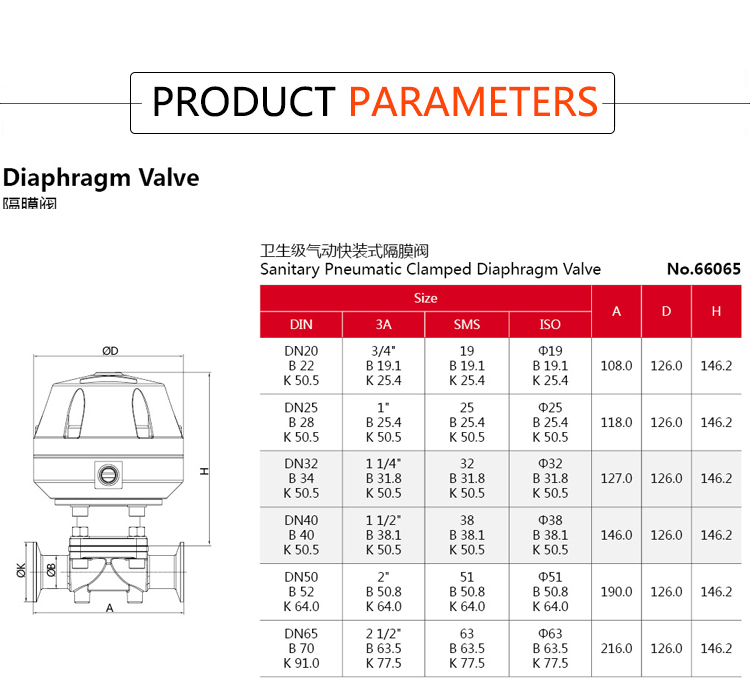

Technical Parameter
| Valve Body Material | SS316L |
| Availably standard | 3A/BPE/DIN/ISO/IDF/SMS |
| Availably size | 1"-3",DN20-DN65 |
| Seal Material | PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
| Availably connection | Clamp/weld/thread/special connection |
| Operated | Manual,Pneumatic |
| Max. Working Pressure | 10Bar |
| Availably structure | Straight, tee, U-type, tank bottom |
| Max. Working Temperature | 120 degree C |
| Application scope | Dairy,food, beverage, pharmacy, cosmetic, etc |
Applications
It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
