Model NO.:D001001002003D
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Driving Mode:Pneumatic
Connection Form:Threaded
Structure:Centre Sealing
Seal Form:Force Sealed
Valve Stem:Normal
Work Pressure:Low Pressure (Pn<1.6mpa)
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D001001002003D
Working TemperatureNormal Temperature (-40°C-120°C)
Material of Seal SurfaceSoft Sealed
Valve BodyForge Welding
ApplicationIndustrial Usage, Water Industrial Usage, Household Usage, Milk, Beer, Juice, Phramacy
Connection StandardDIN, 3A, SMS, Rjt
Flow Medium Parts304, 304L, 316L (1.4301, 1.4307, 1.4404)
Port SizeDn10-150 or 1/2"-150
Way of ConnectionWeld, Male, Clamp, Flange
GasketSilicone, EPDM, Viton, NBR
Kinds of HandlePull Handle, Gripper Hanle/Fiber Handle.
Pressure Range0bar~0bar
Temperature Range-20 Degree Celsius to 120 Degree Celsius
Processing MachineForge Processing, Advance CNC Machine
Working PrincipleRemote-Controlled Operation by The Driving Gear or
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

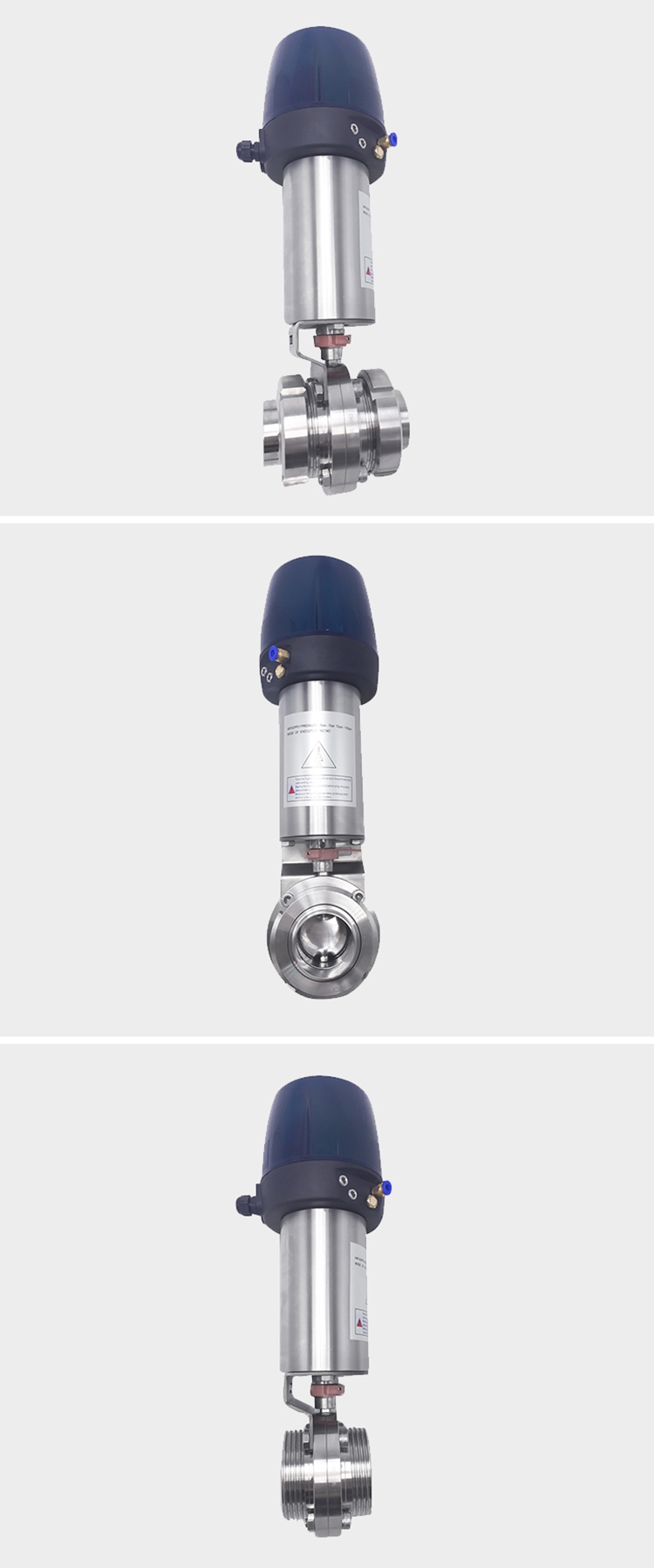

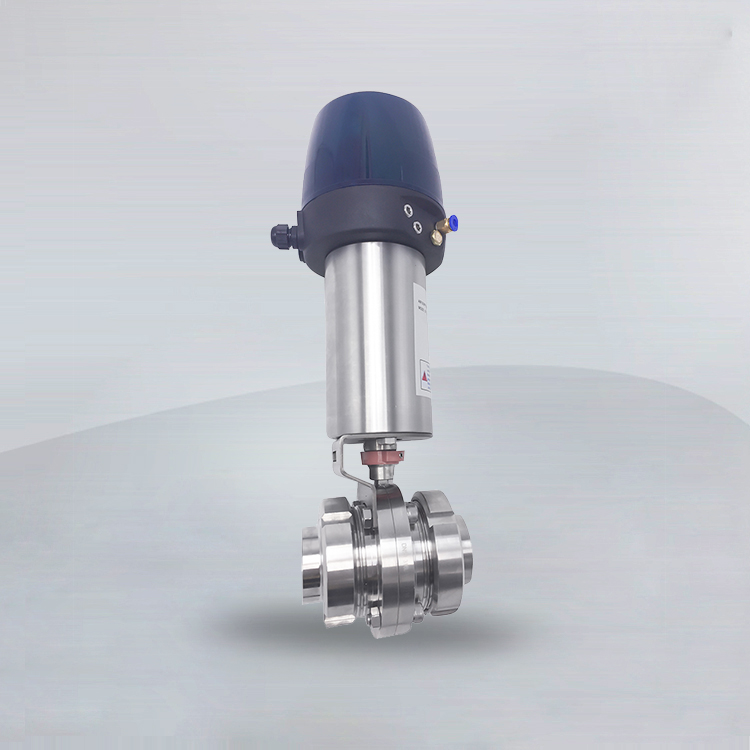

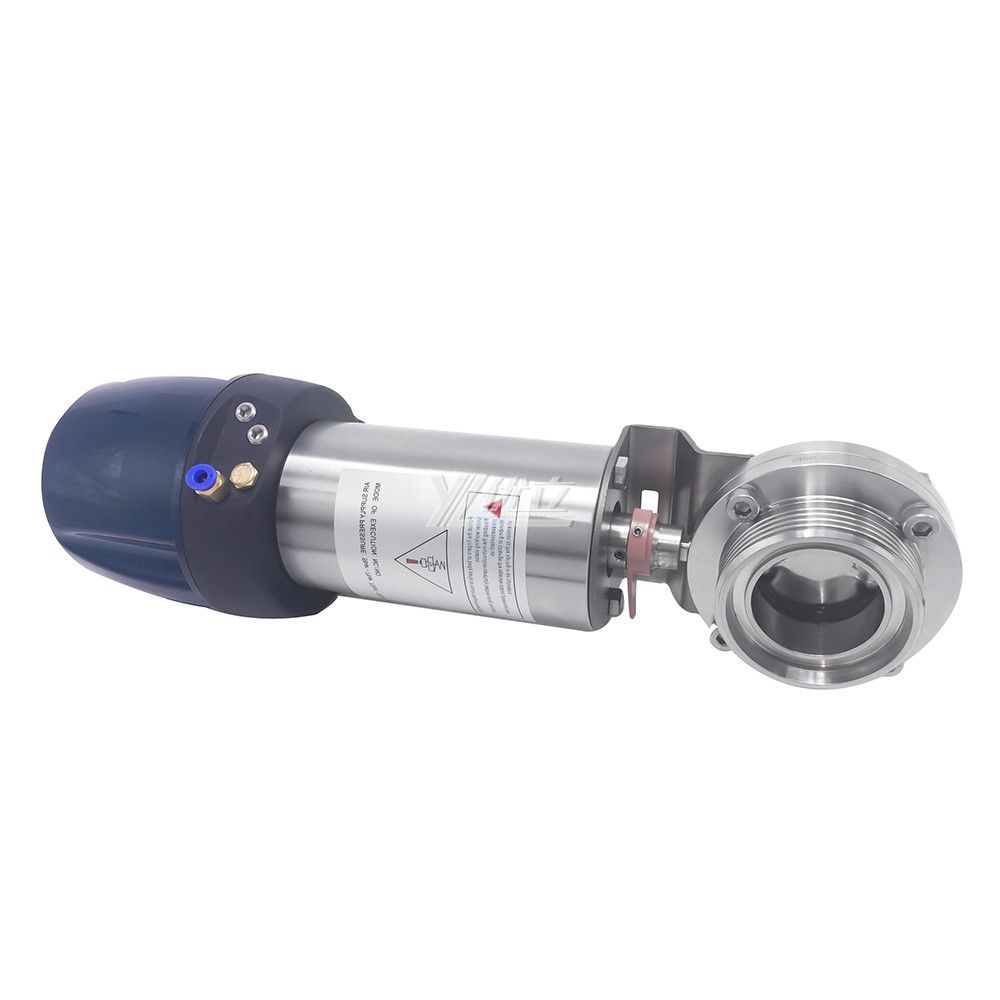

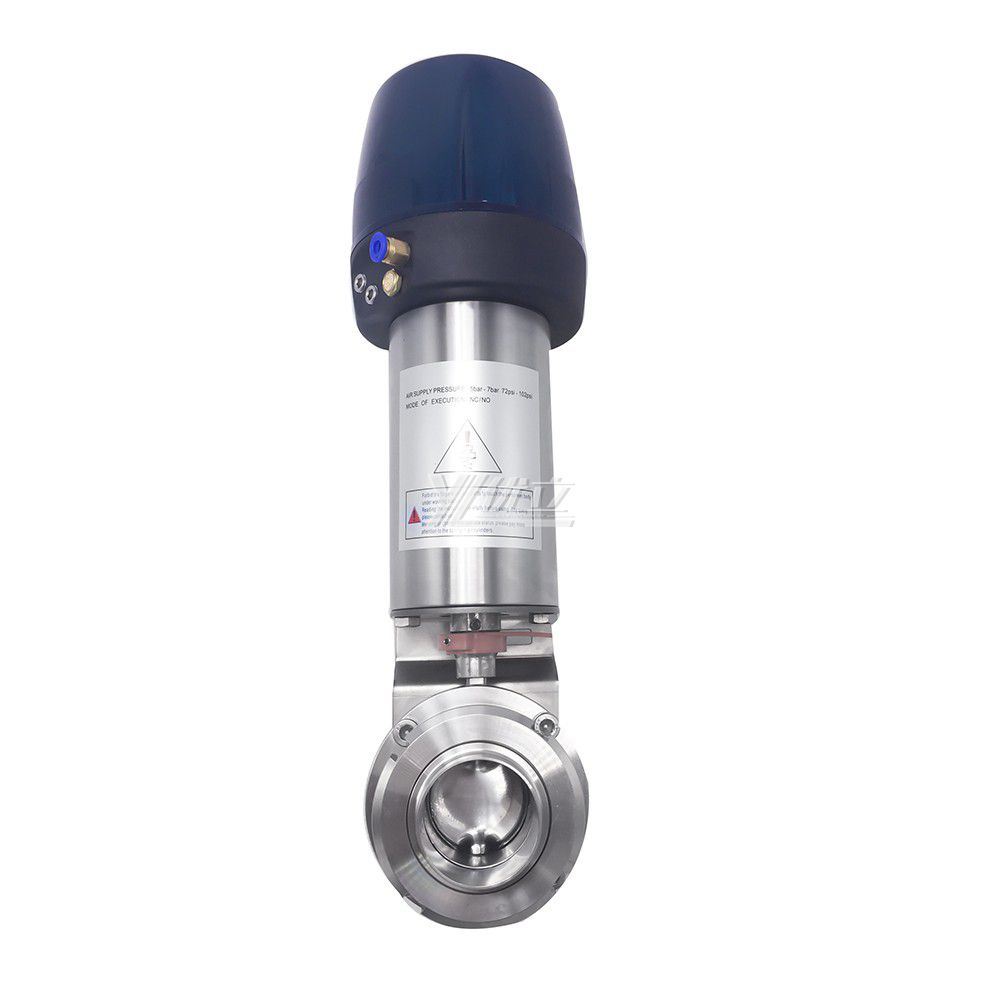

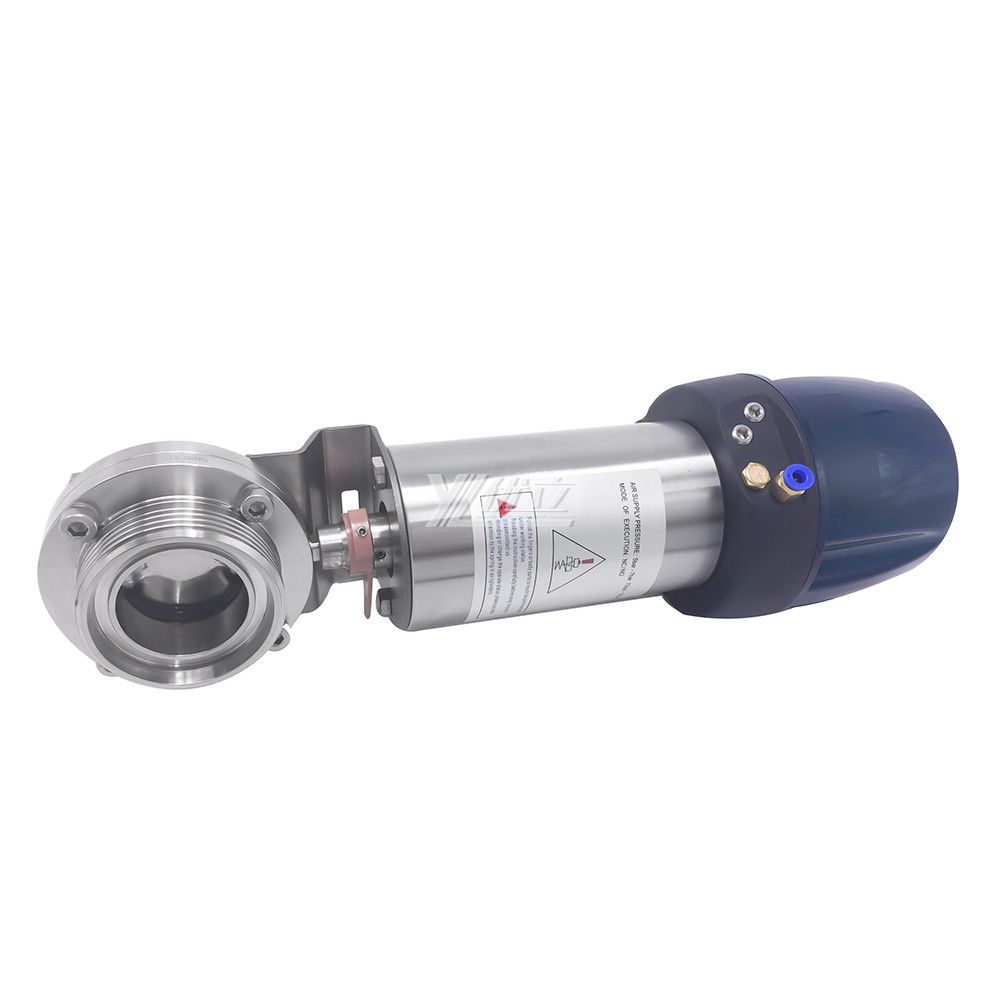

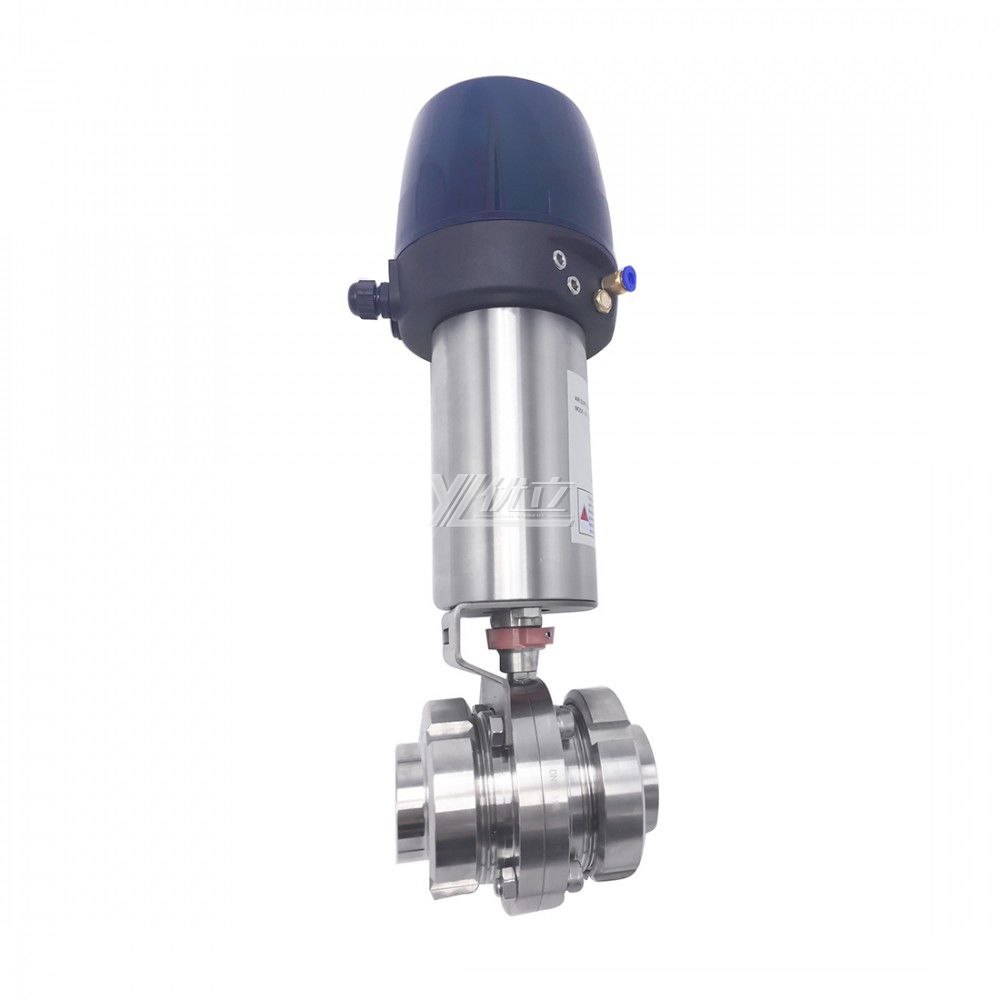

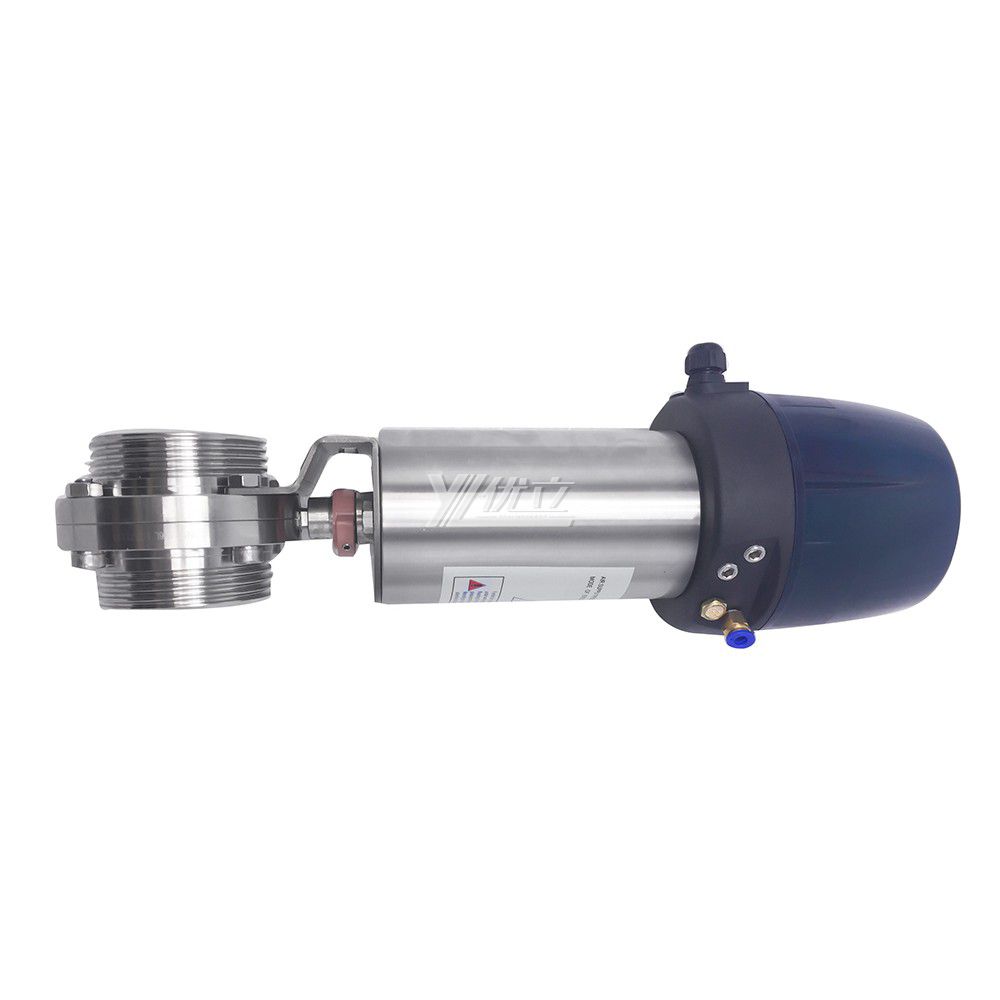

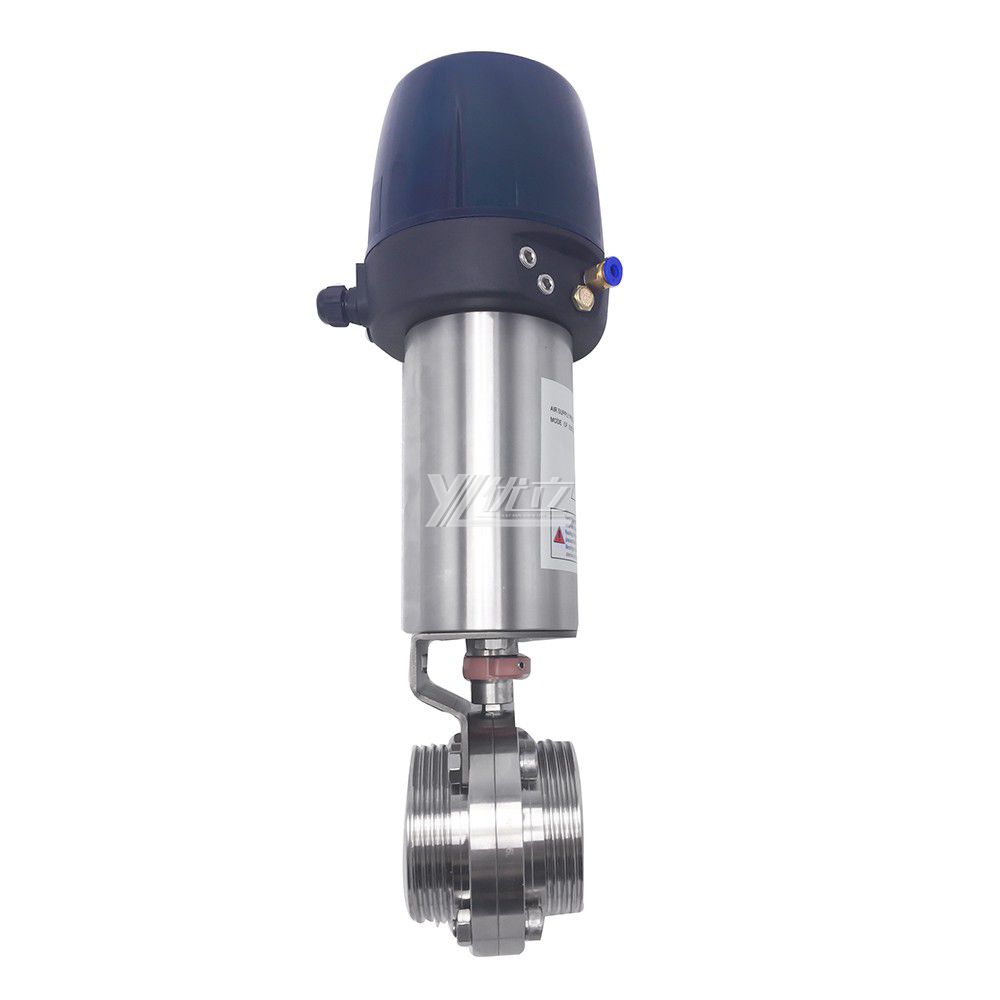

Product Name:DN25 Stainless Steel AISI304 Thread Butterfly Valves with Control Head
Thread Butterfly Valves with Control Head
AISI304 Thread Butterfly Valves with Control Head

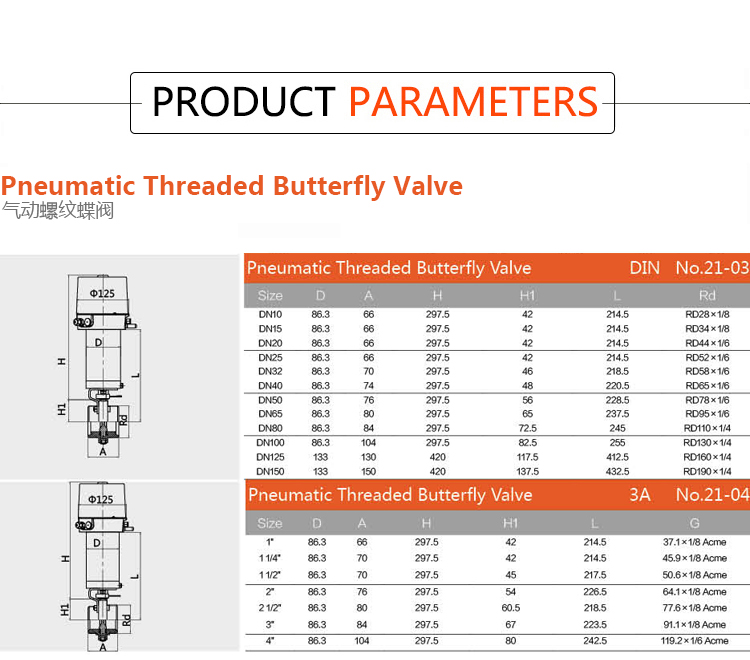

Technical Parameter
| Standard | DIN, 3A, SMS, RJT |
| Flow Medium Parts | 304, 304L, 316L(1.4301, 1.4307, 1.4404) |
| Port Size | Dn10-150 or 1/2"-150 |
| Way of Connection | Weld, Male, Clamp, Flange |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Application | It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms | Normally closed, normally opened and opened and closed by two air flues seperately. |
| Handle | Metal handle, reinforced nylon handle |
| Adjustable handle, built to order according to users' request. | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use |
Applications
It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
