Model NO.:D001008005D
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:1000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Quality:SS304,SS316L
Connection Form:DIN,3A,SMS,ISO
Size:Dn15-Dn50,3/4"-2 1/2",19mm-63mm
Working Pressure:6bar
Connection Ends:Male Ends,Tri Clamp Ends,Welded Ends
Pressure Control Range:0.5-6 Bar
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D001008005D
SealingFood Rubber
Medium Temperature-10 Celsius Degree-+120 Celsius Degree
MediumLiquid Material,Gas
Surface TreatmentRa 0.8um
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

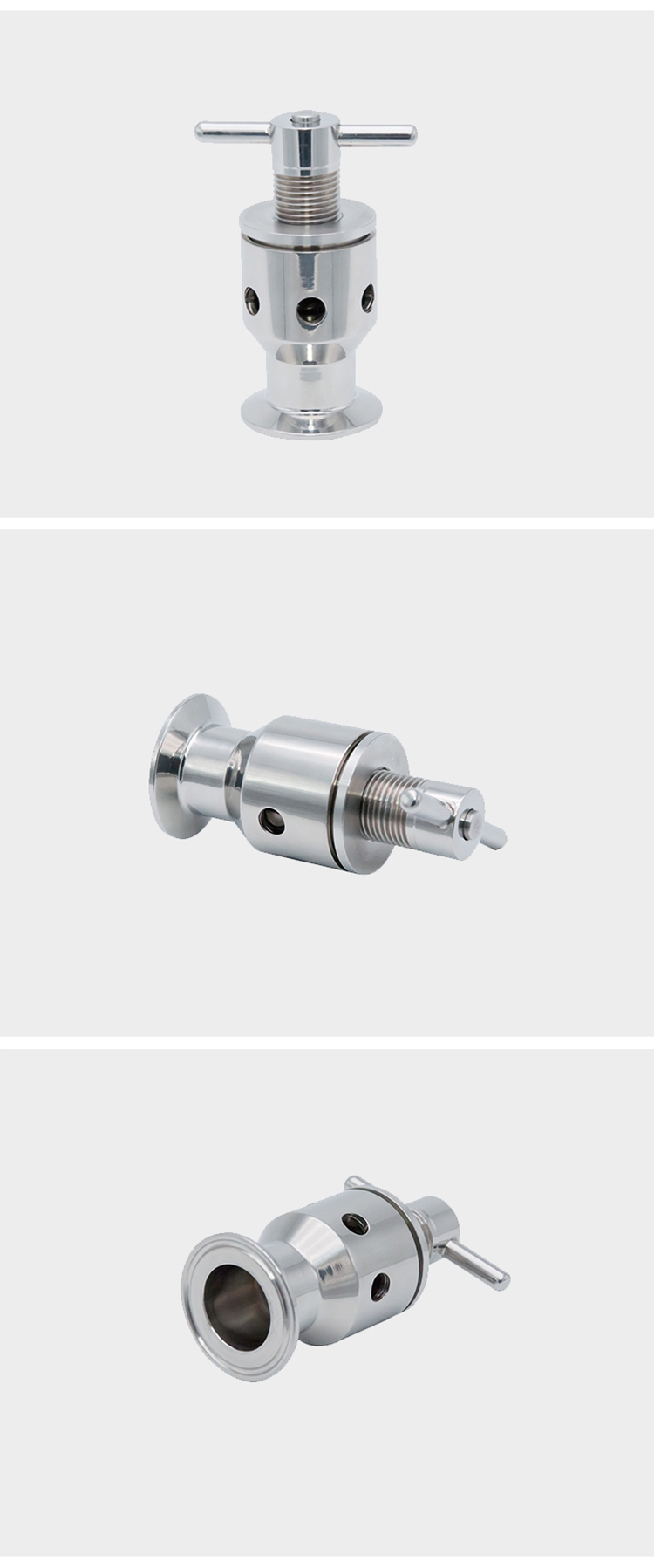

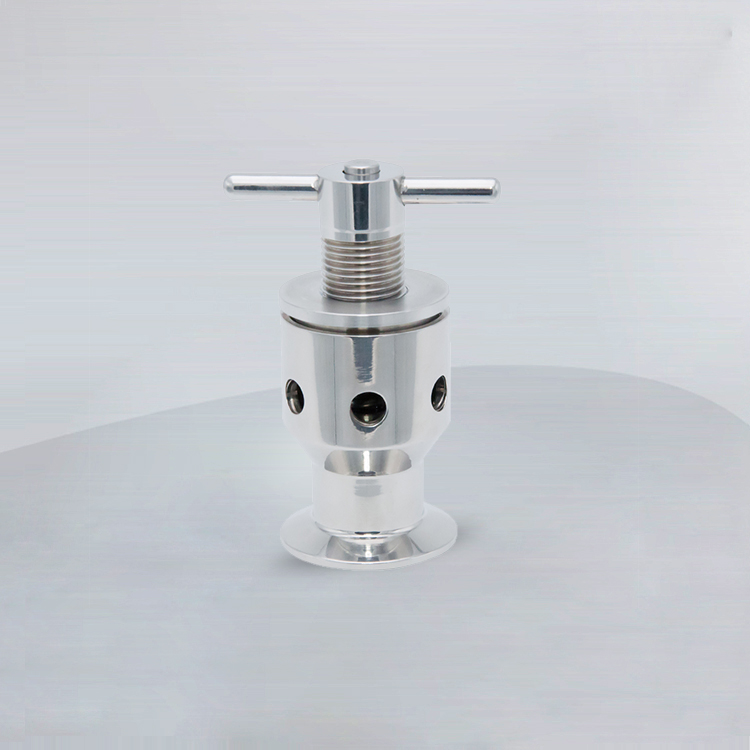

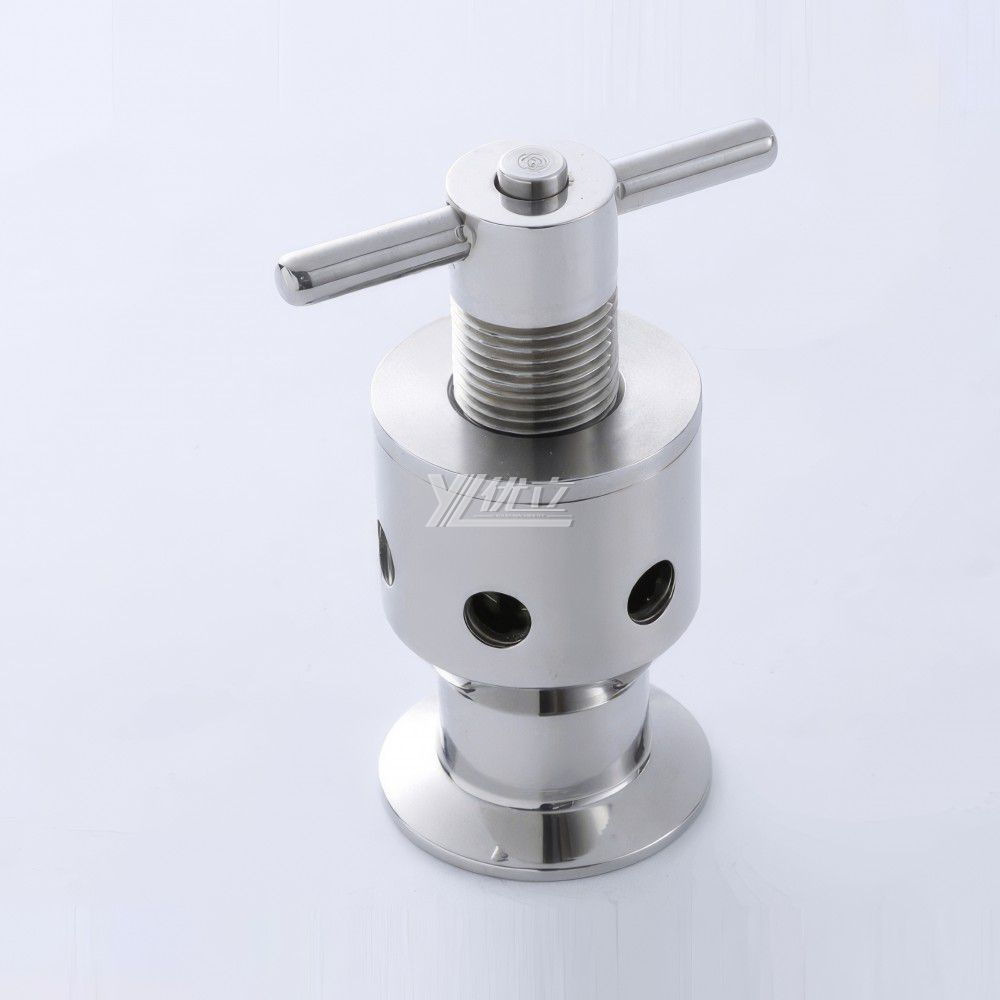

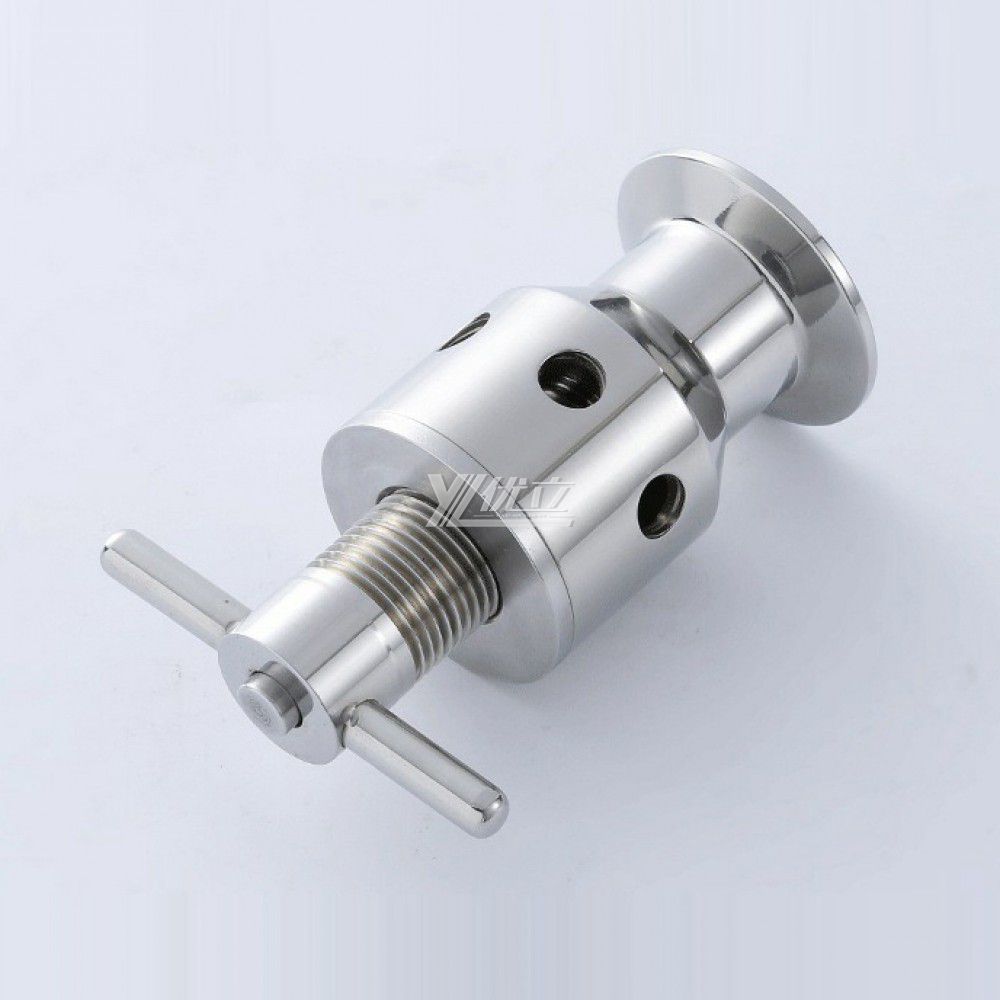

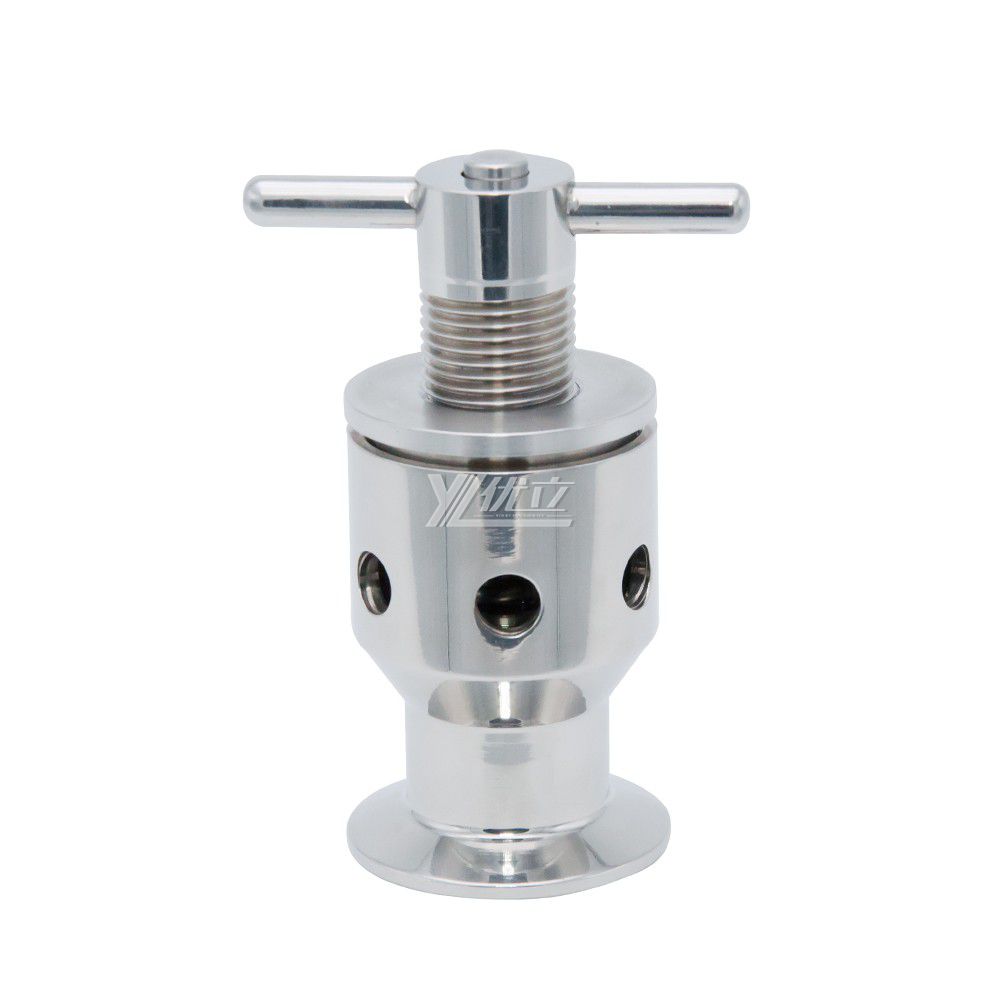

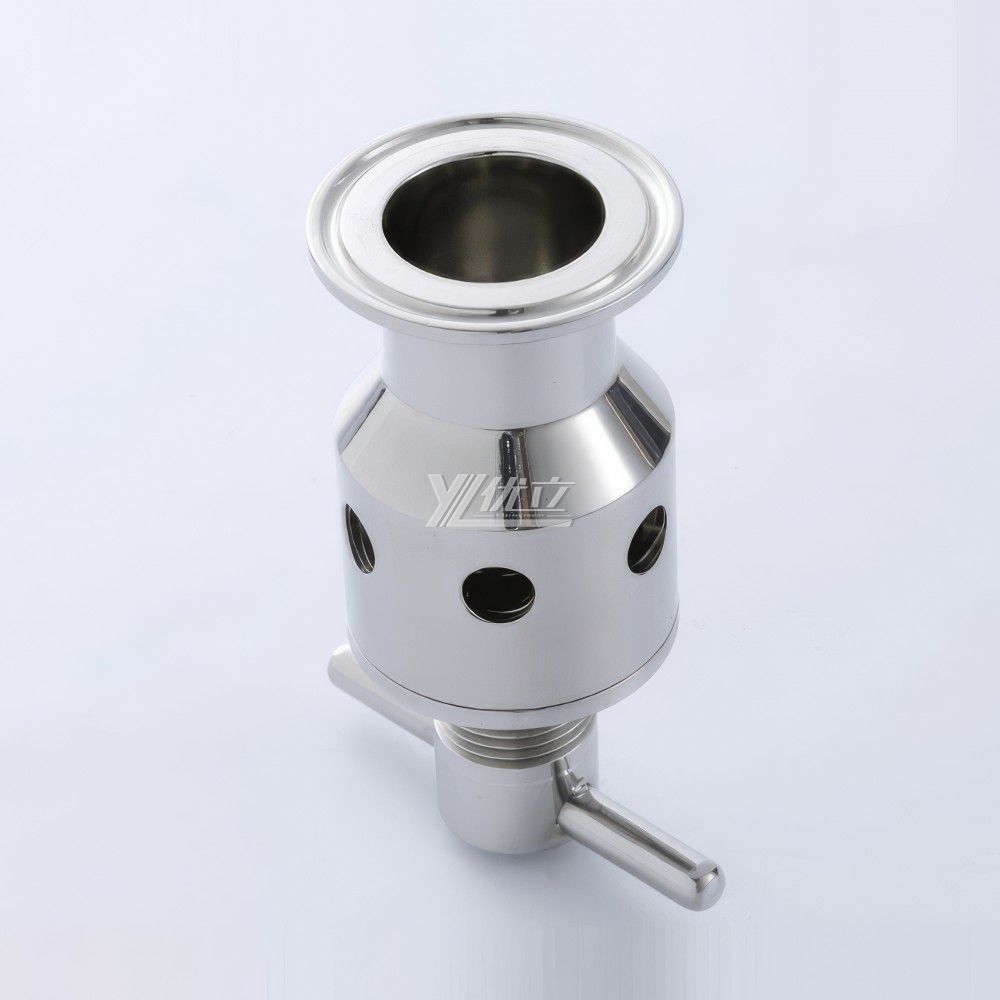

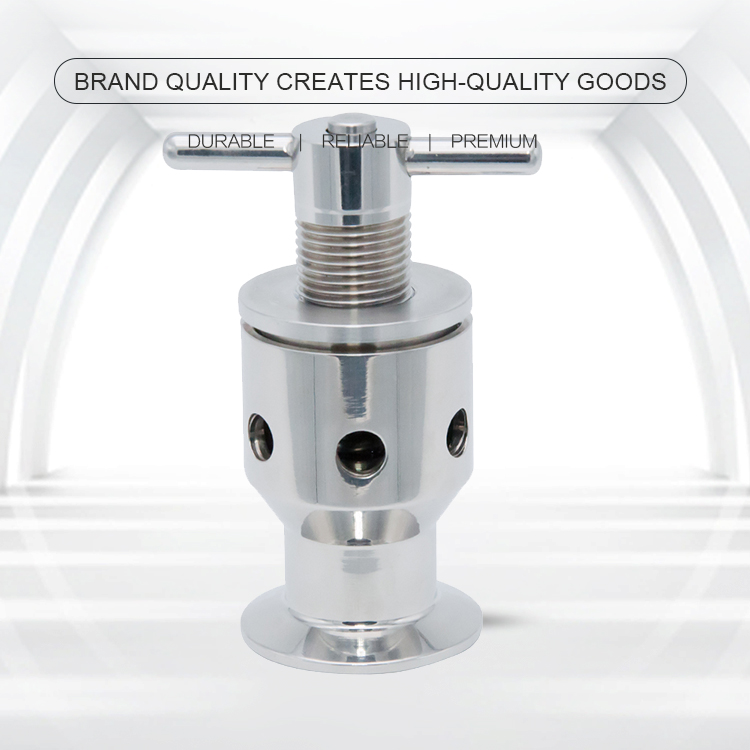

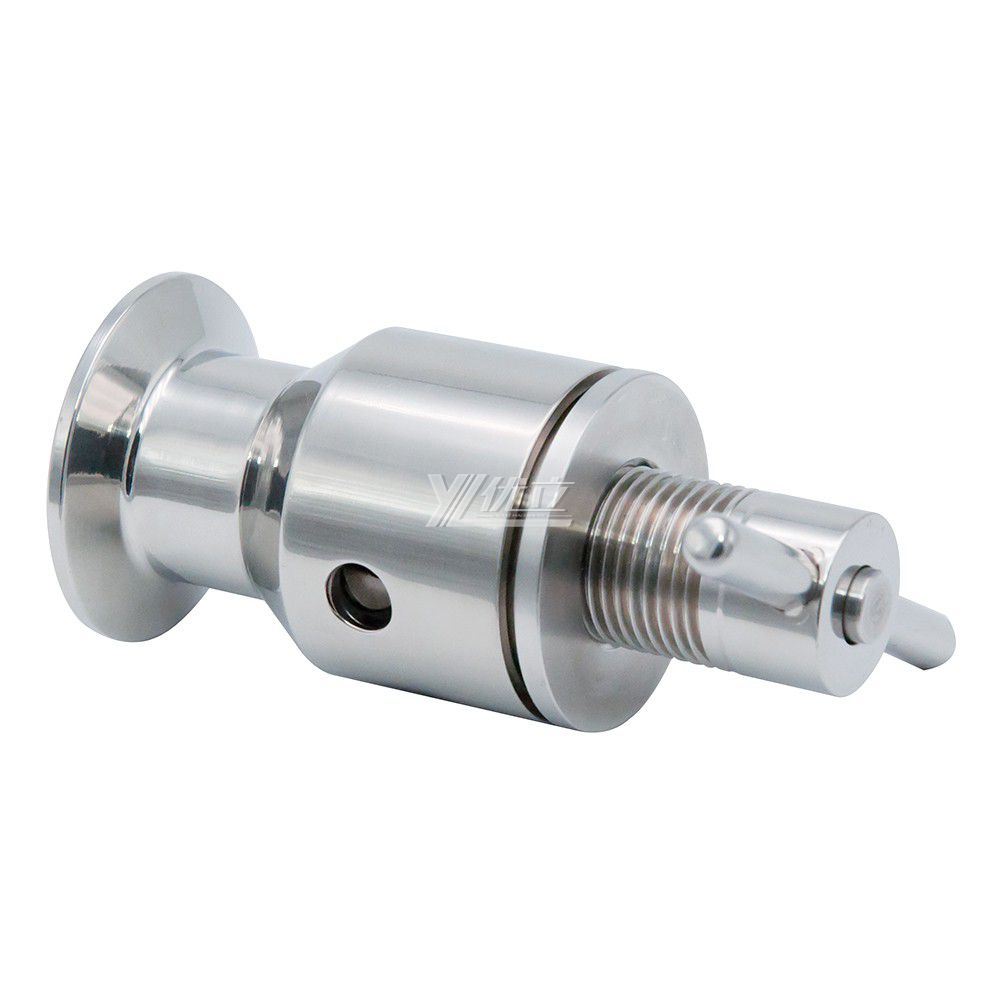

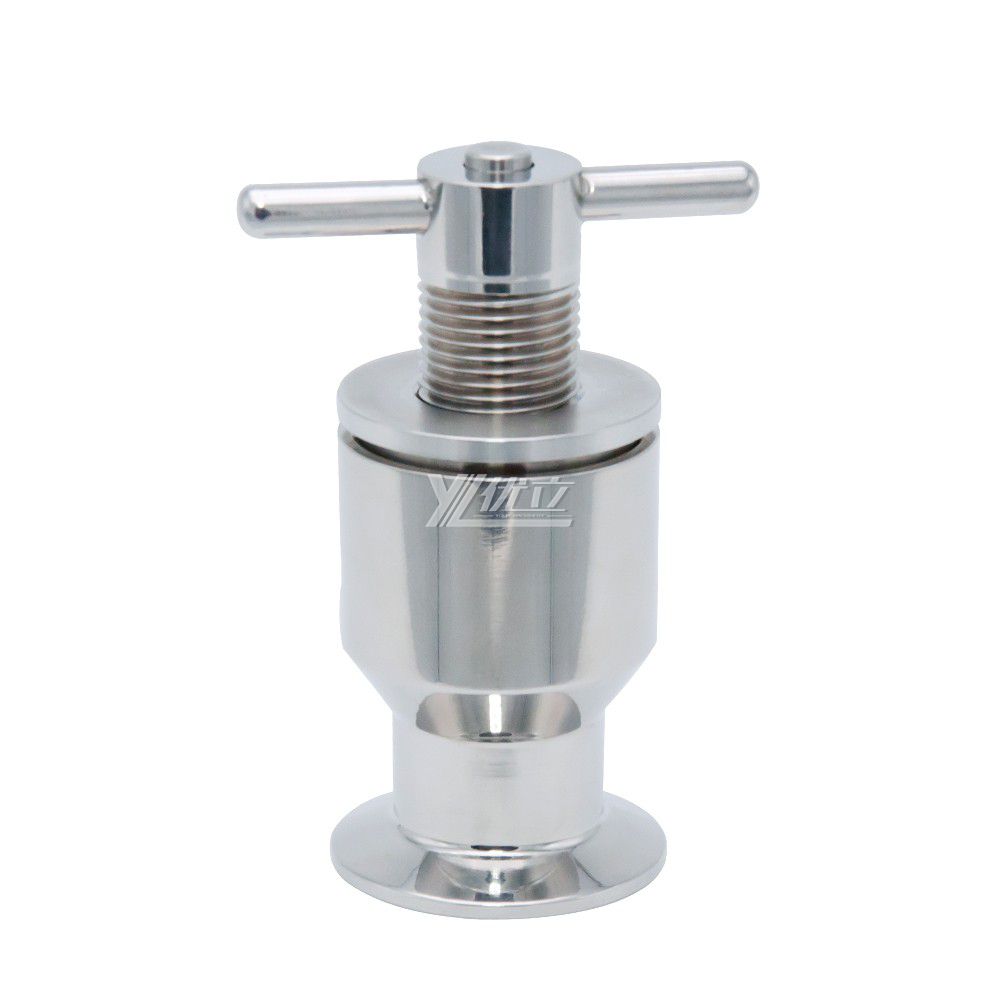

Products Name:Stainless Steel SS304 SS316L Adjustable Breather Valve
Stainless Steel Sanitary Pressure Relief Valve
Stainless Steel Sanitary Pressure Relief Valve

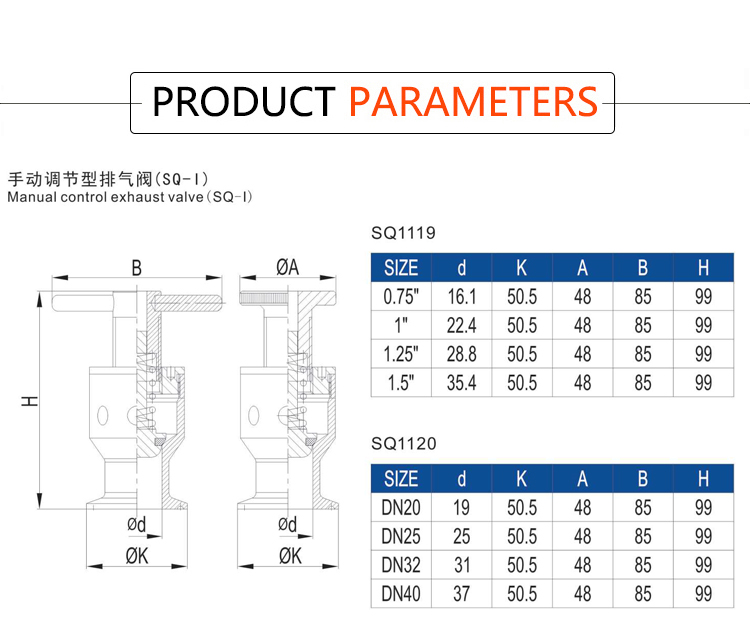

Technical Parameter
| Material | SS304 |
| Standard: | DIN,SMS,ISO,IDF,3A |
| Size: | 1"-3"/DN25-50 |
| Connection Way: | Weld, Clamp,Thread,Union |
| Temperature of Media: | Normal Temperature |
| Pressure: | 1-6Bar |
| Operated: | Pneumatic |
Features
Stainless Steel Sanitary Tri Clamp Pressure Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.
Applications
It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
