Model NO.:D001006002001DX002
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material:Stainless Steel
Connection Form:Weld Male Clamp Flange thread
Driving Mode:Pnumatic
Nominal Pressure:0~10bar ,0~0.1MPa
Channel:Straight Through Type
Structure:Flexible Ball Valve
HS Code:8481804090
Trademark:YOULI
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D001006002001DX002
TypeFlexible Ball Valve
FunctionBypass-Valve
TemperatureNormal Temperature
ApplicationMilk,Juice
Material QualitySS304,SS316L
Available StandardISO, DIN, 3A,SMS etc
SizeDn25-100 & 1"-4"
ConnectionWelded, Clamped, Threaded, Flanged
Working PrincipalManual Operation or Driving Device Operation
Body Construction3-Piece Precision Cast Body
Flow PatternStraight
Seat MaterialPTFE, PCTFE, Peek or Upon Your Request
Working Pressure8bar,0.08MPa
Temperature Range-20degree Celsius~135degree Celsius
HS Code8481804090
TrademarkYOULI
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

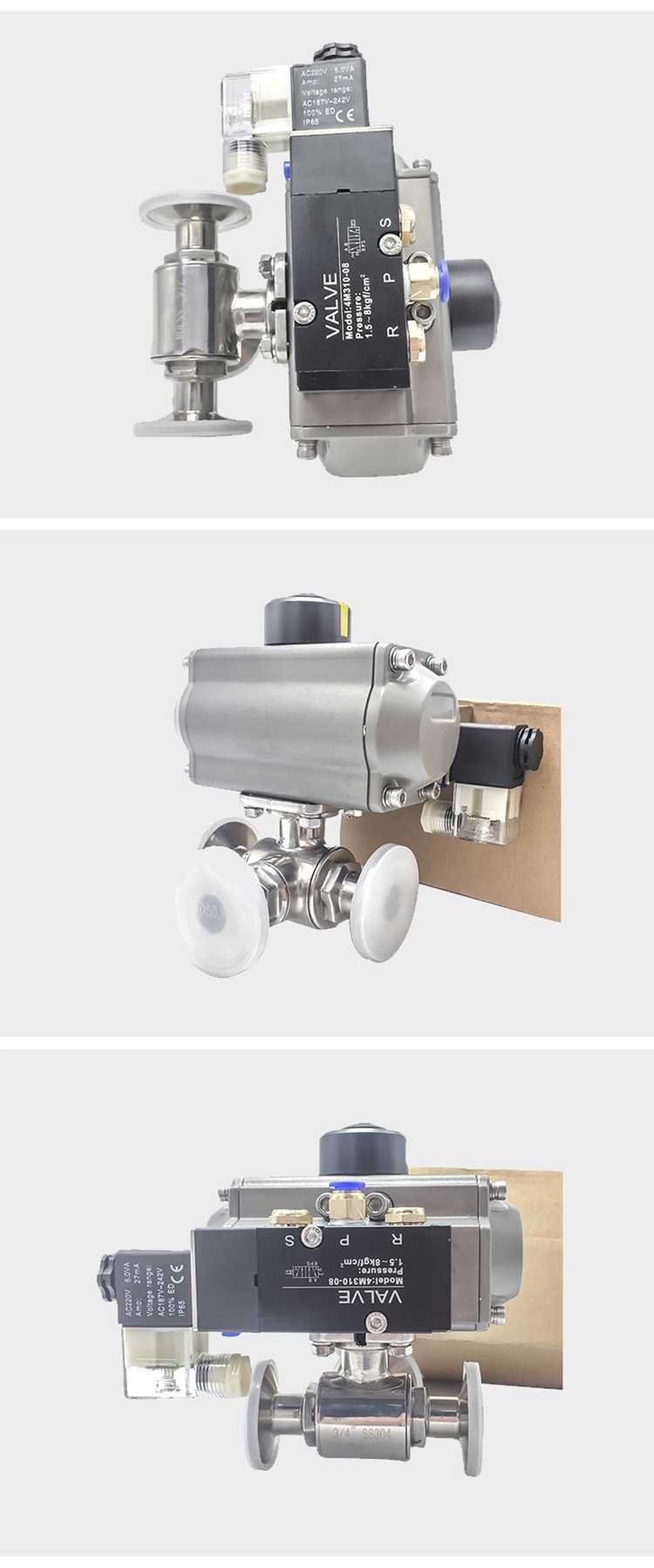

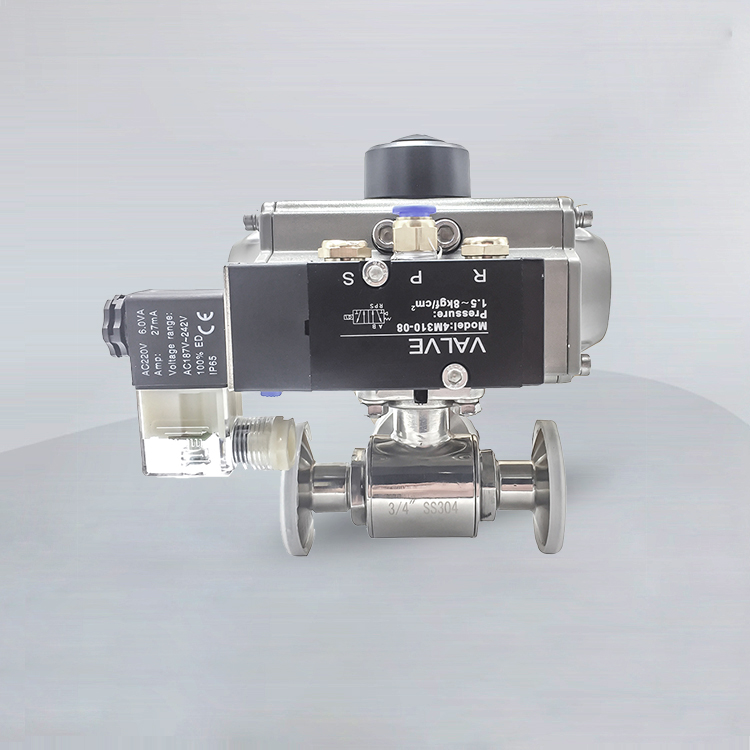

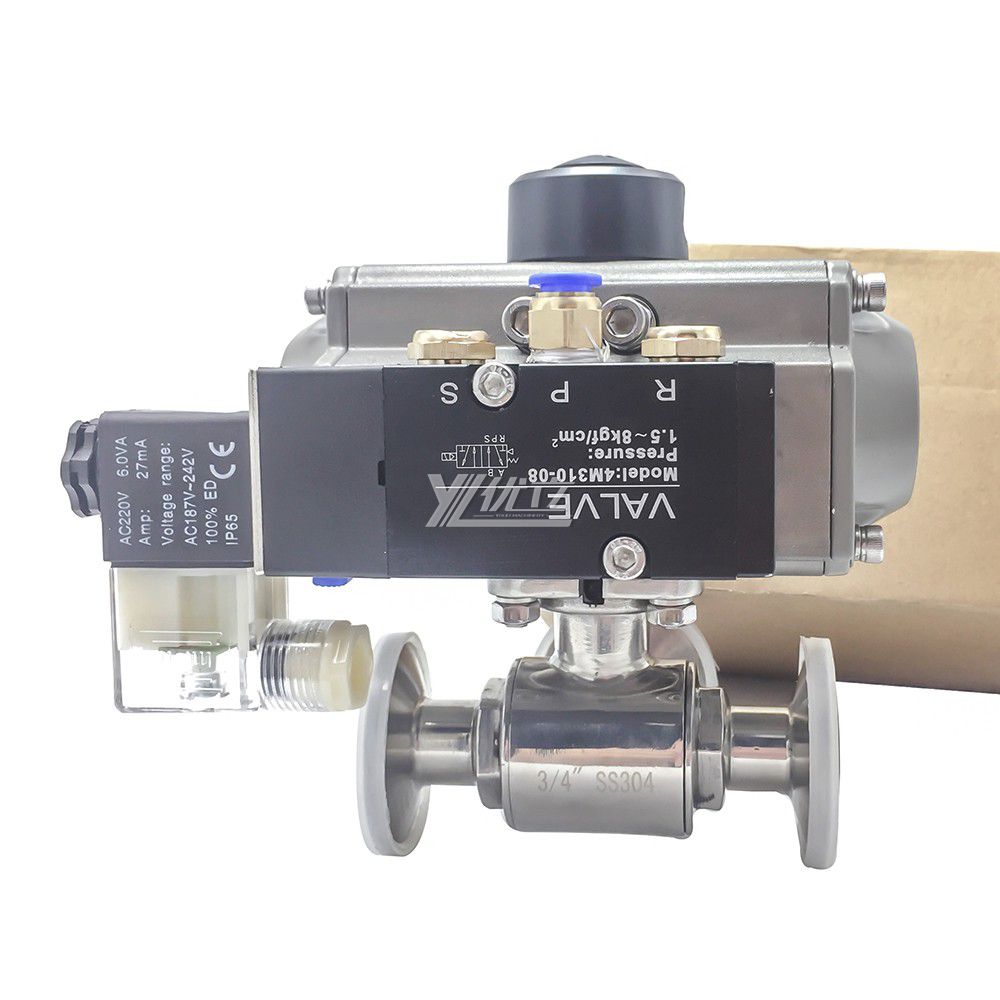

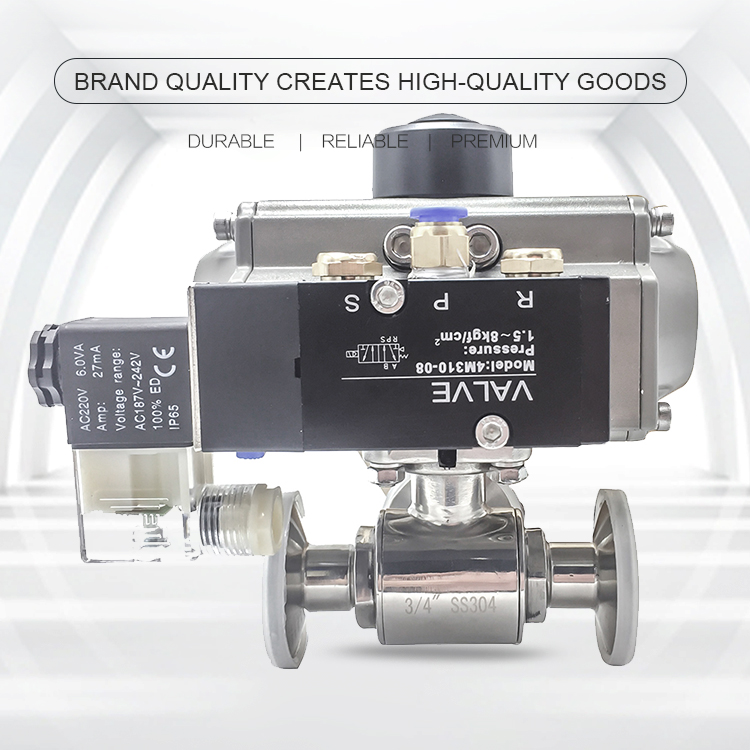

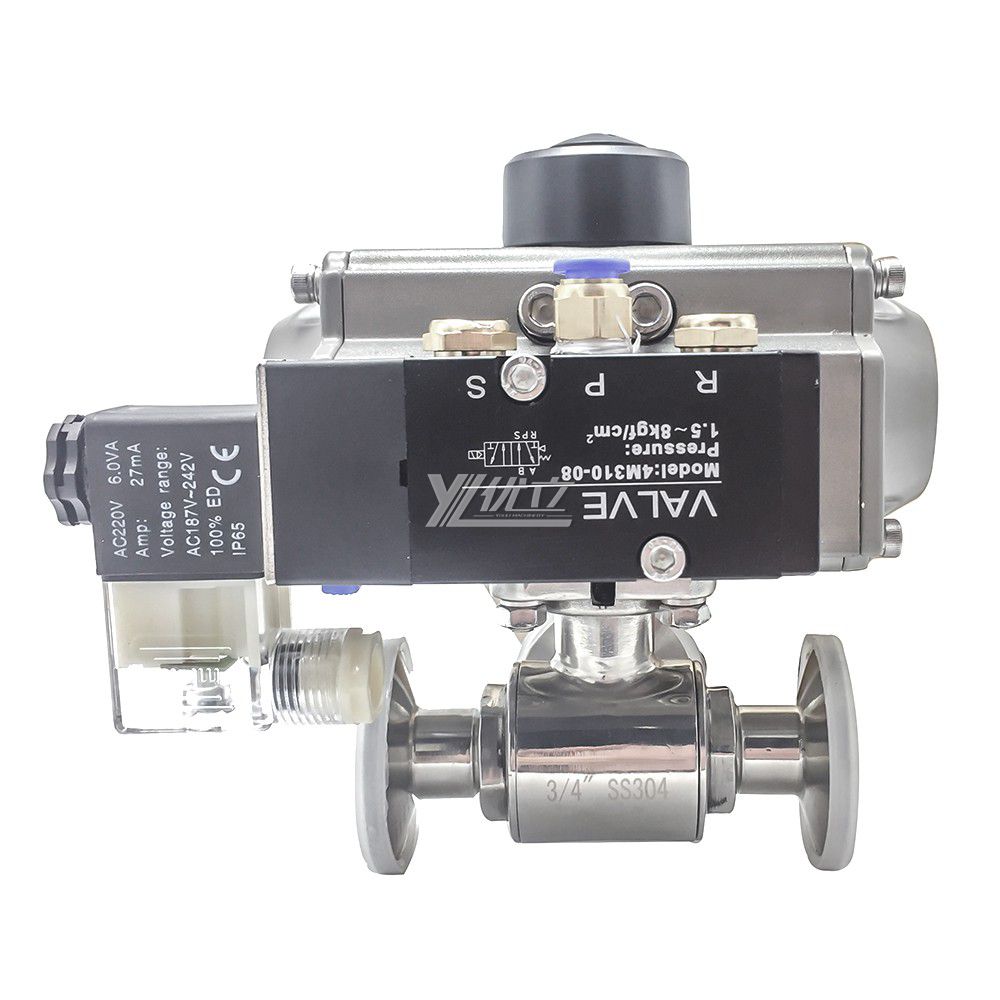

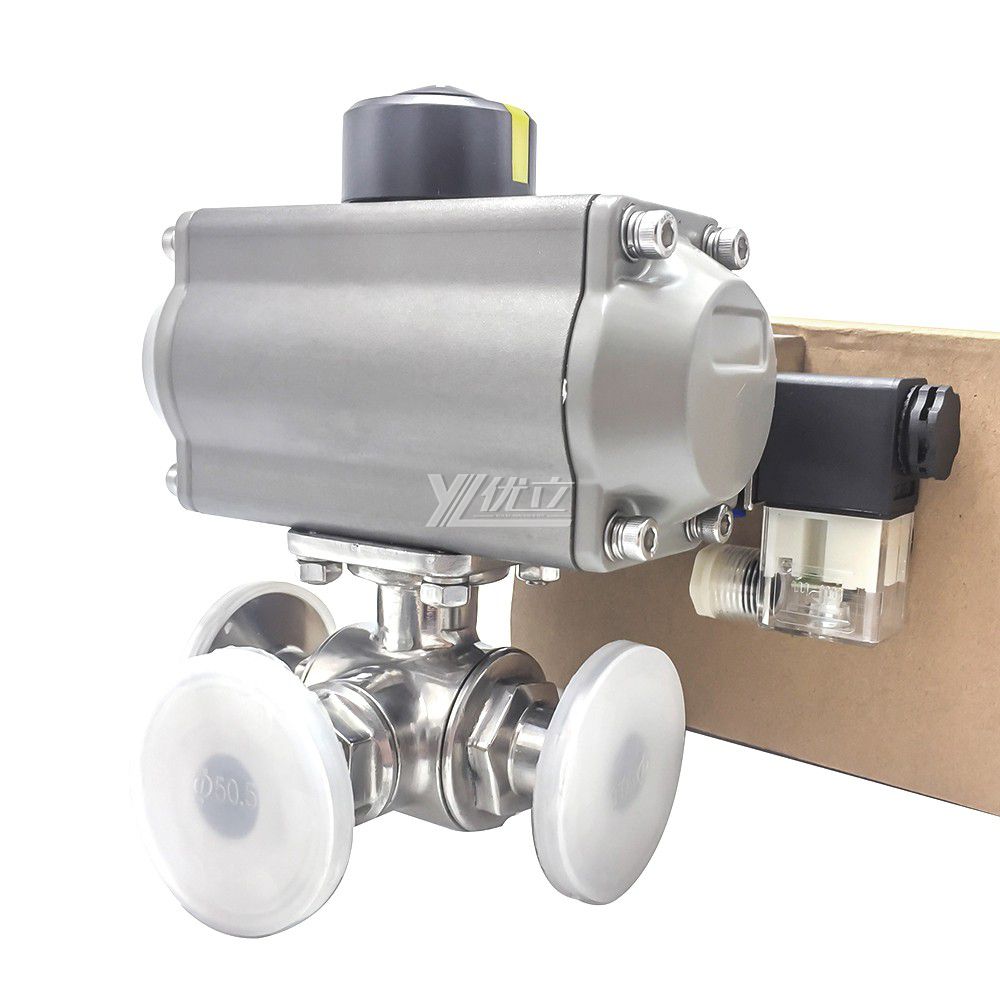

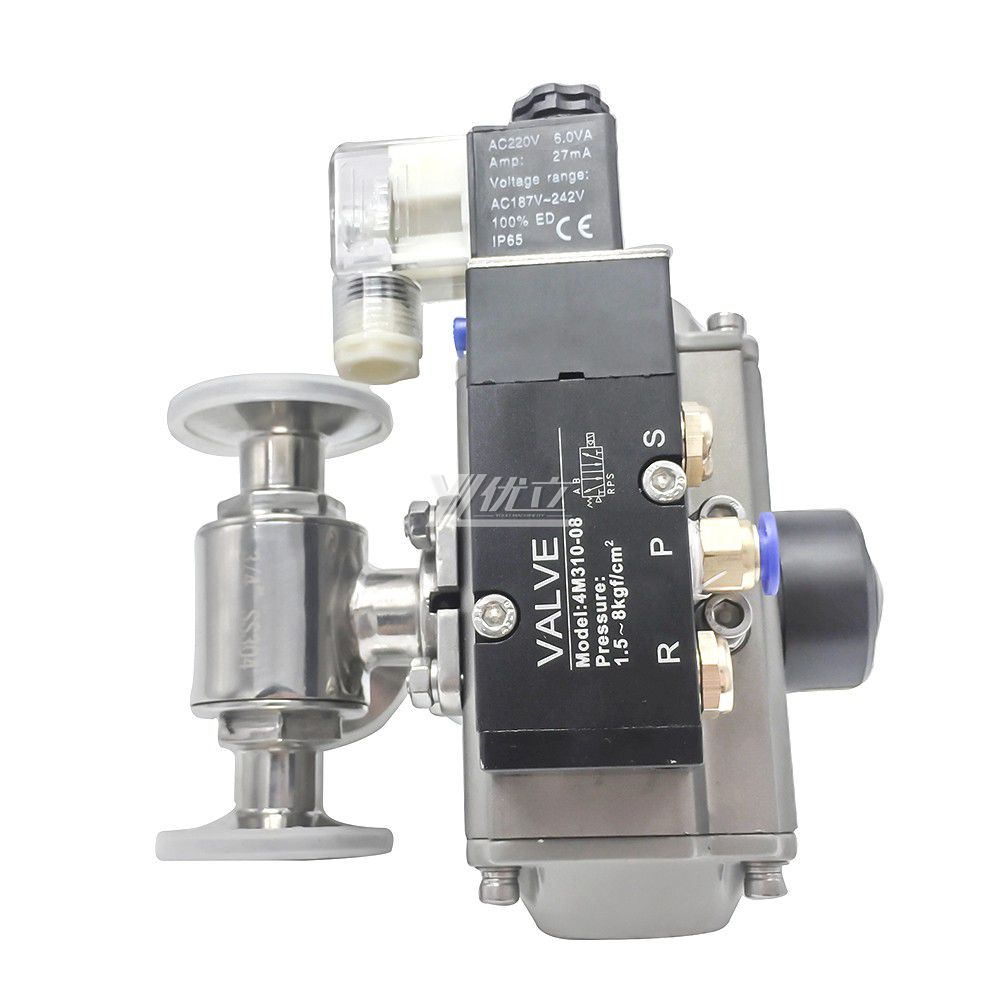

Sanitary Three Ways Tri Clamp Ball Valves with Pnumatic Actuator and Solenoid Valve
Ball Valves with Pnumatic Actuator and Solenoid Valve
Sanitary Three Ways Tri Clamp Ball Valves
Technical Parameter
| Standard | SMS,DIN,3A,IDF,ISO |
| SMS,DIN,3A,IDF,ISO | SS304,SS304L,SS316,SS316L |
| Size | 3/4"~6",DN19~DN150 |
| Seal ring of stem | EPDM. VITON OR SILICON is required |
| Connection ends | Butt-welded,clamped,male ends,union ends |
| External surface | Bright gloss,dull gloss |
| Bright gloss,dull gloss | Manual |
| Working temperature | -20Celsius degree~+135Celsius degree |
| Max. working pressure | 10Bar |
Applications
Sanitary three piece ball valve is widely applied to pipeline and equipment control.It is widely used in brewing industry.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
