Stainless Steel Hygienic SS304 Pneumatic Flow Diversion Valve

Model NO.:D001002002002D

Pur Qty. / Ref FOB Price

1 PieceUS $5.8-43.48 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:100sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Size:1/2"~4",Dn10~Dn100

Flow Medium Parts:304,304L,316L (1.4301,1.4307,1.4404)

Connection Ends:Butt-Welded,Tri Clamp,Male and Female Threa

Actuator:Pneumatic Ss Actuatorelectric Actuator,Manual

Continuous Working Temperature:-20 ~ 135degree Celsius(EPDM)

Working Pressure:0~10bar (Standard)

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001002002002D

    Position Sensor24V DC,NPN/PNP Position Sensor (2)

    Flow TypeL,L/L,T/L,T,L/T,T/T

    Connection StandardDIN, 3A, SMS, Rjt, Idf

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

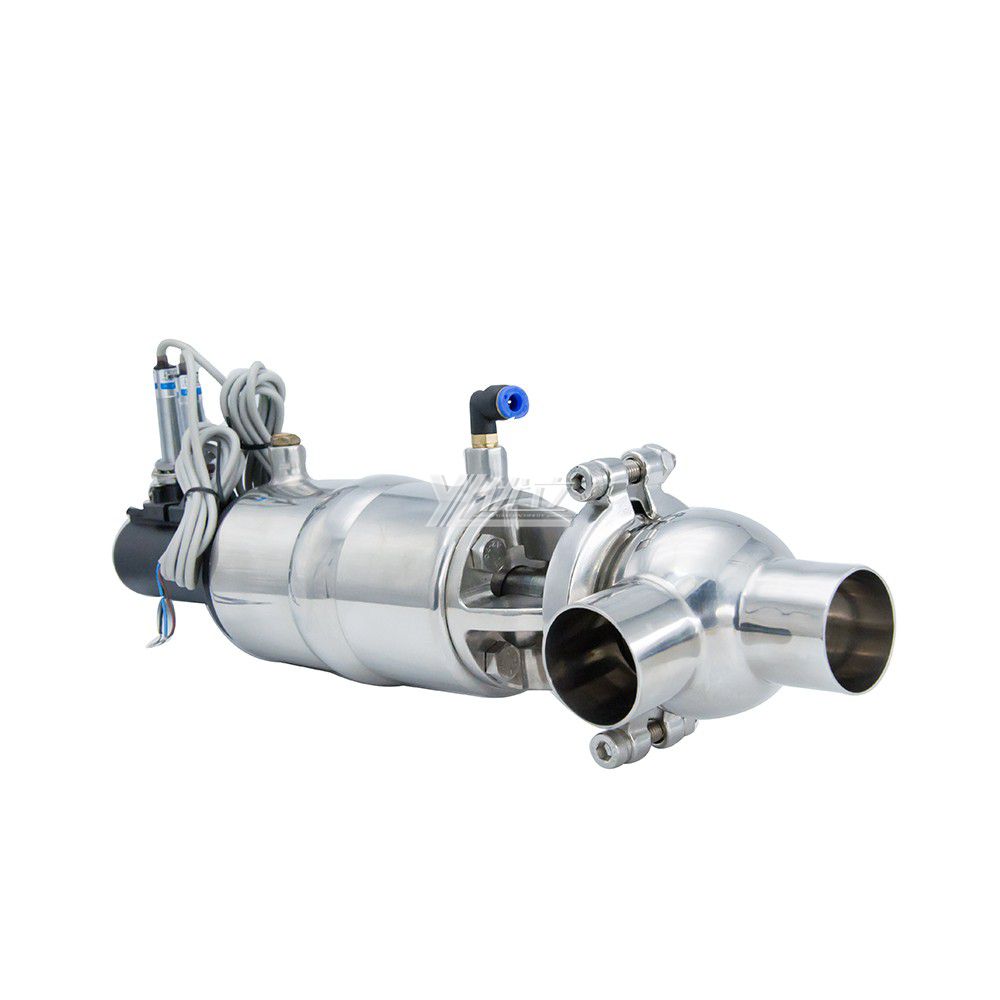

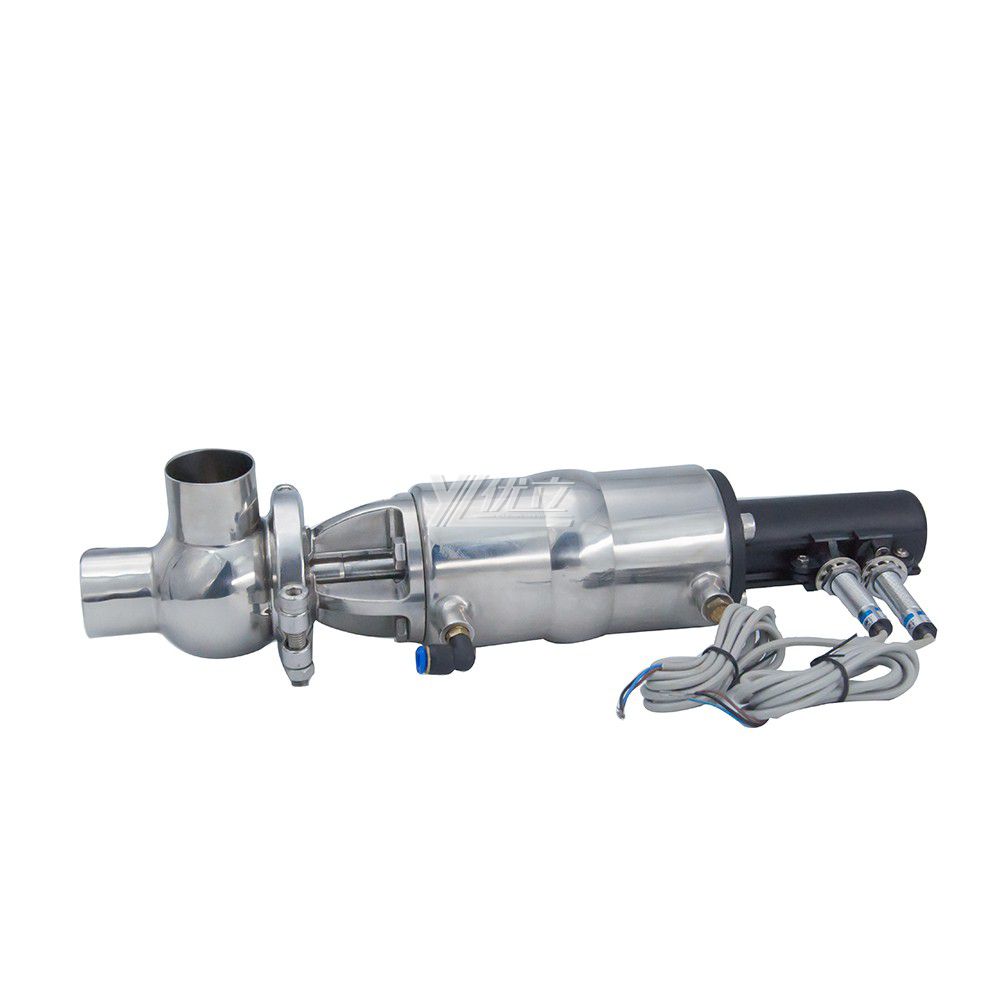

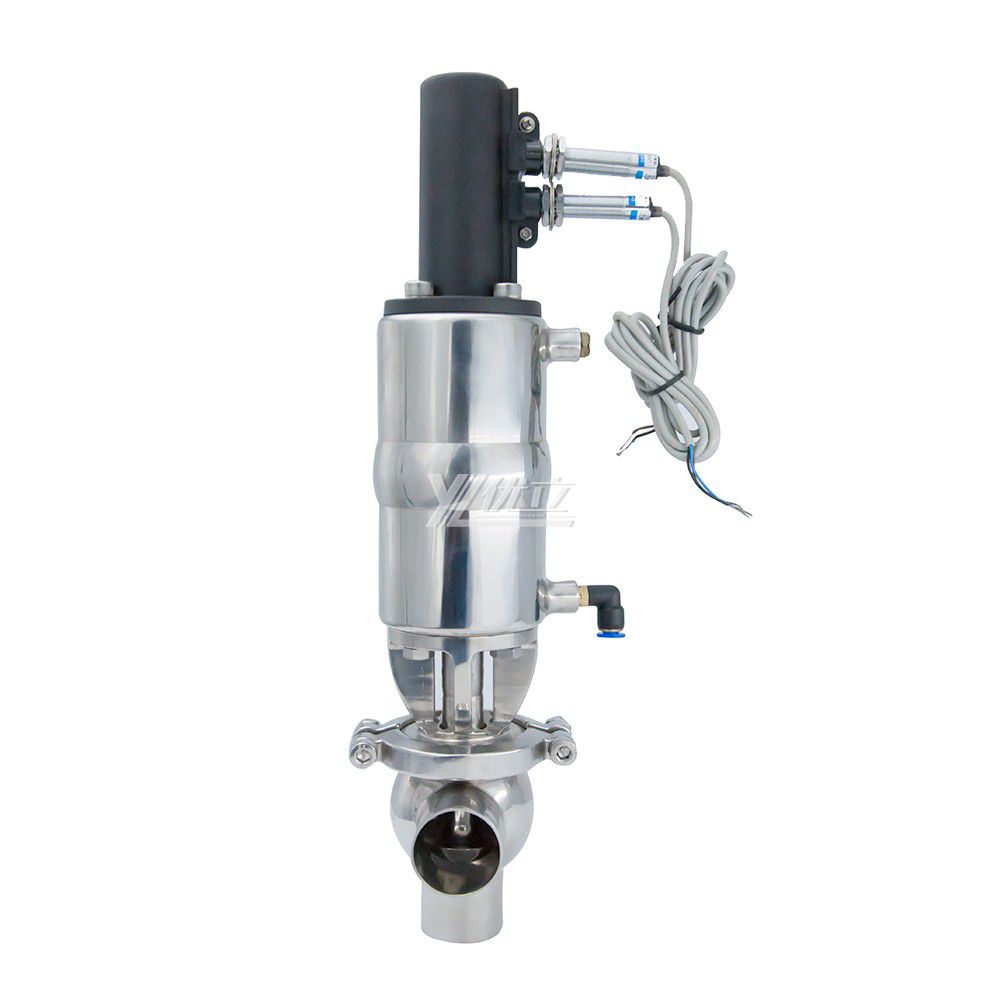

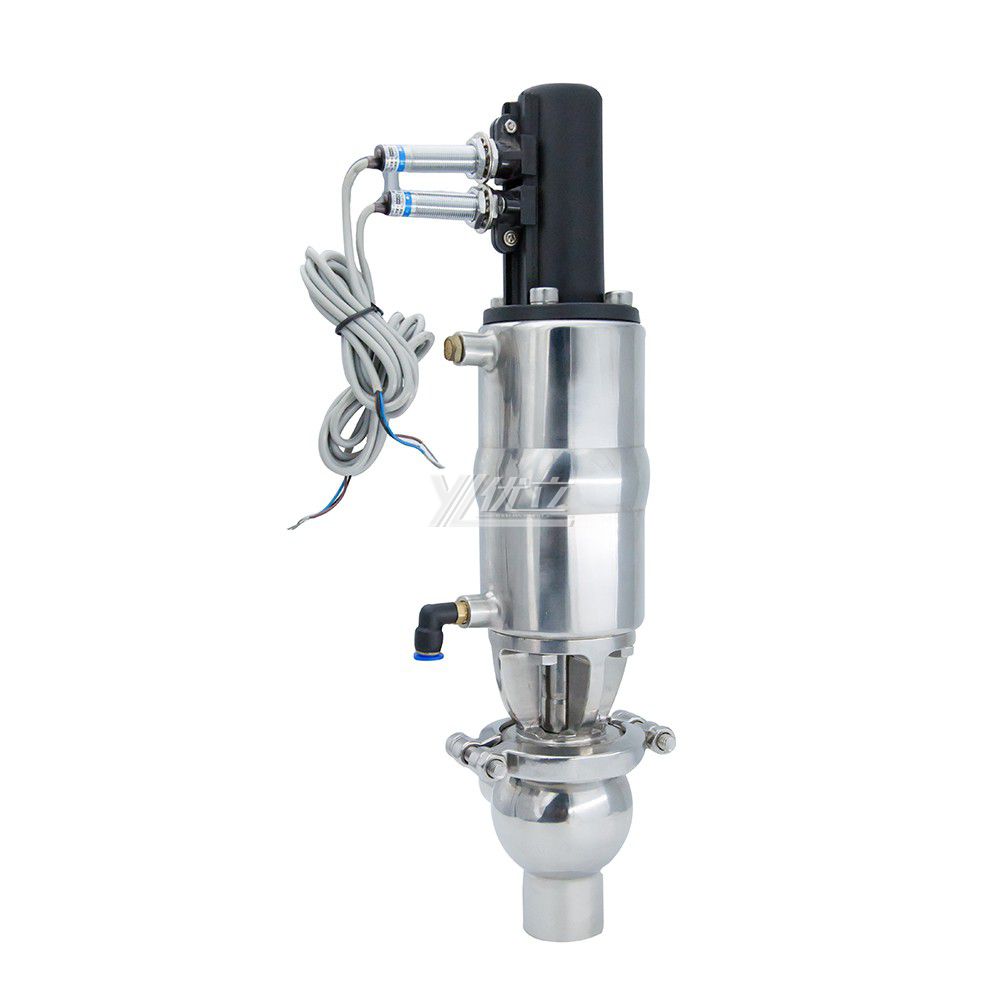

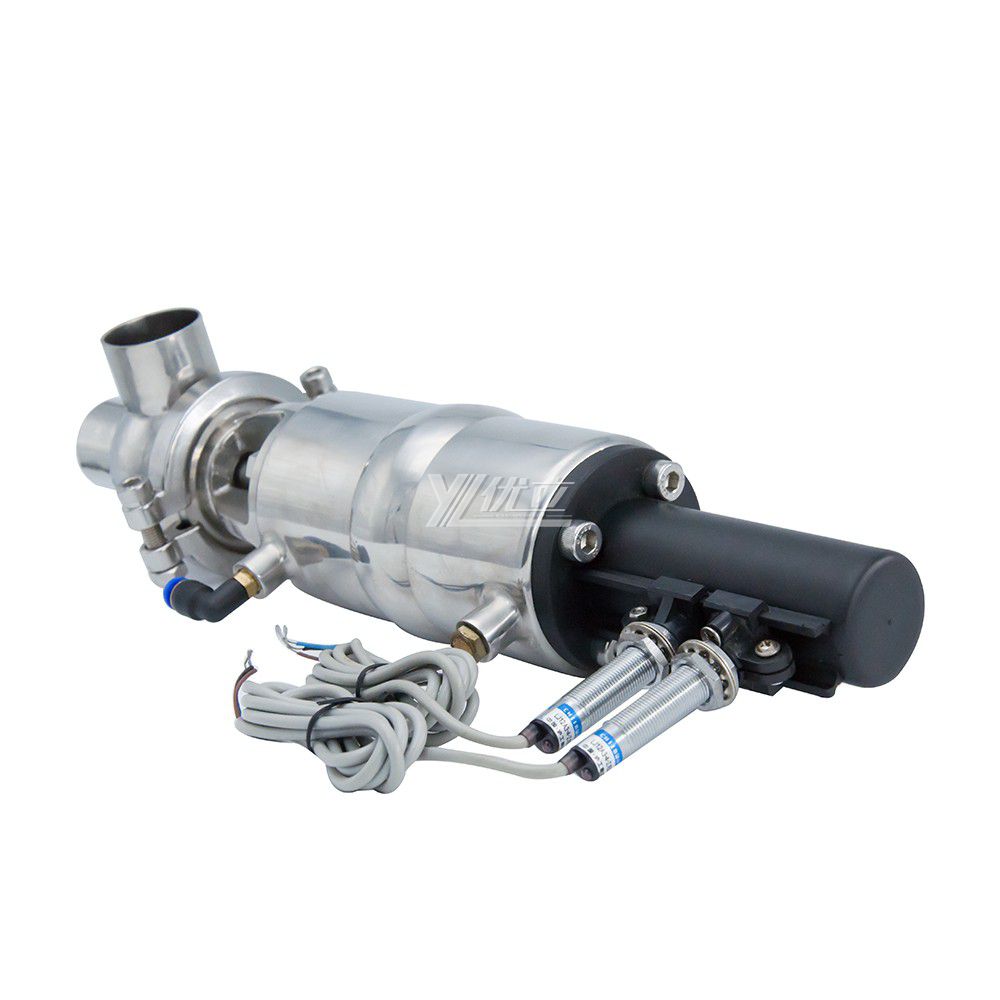

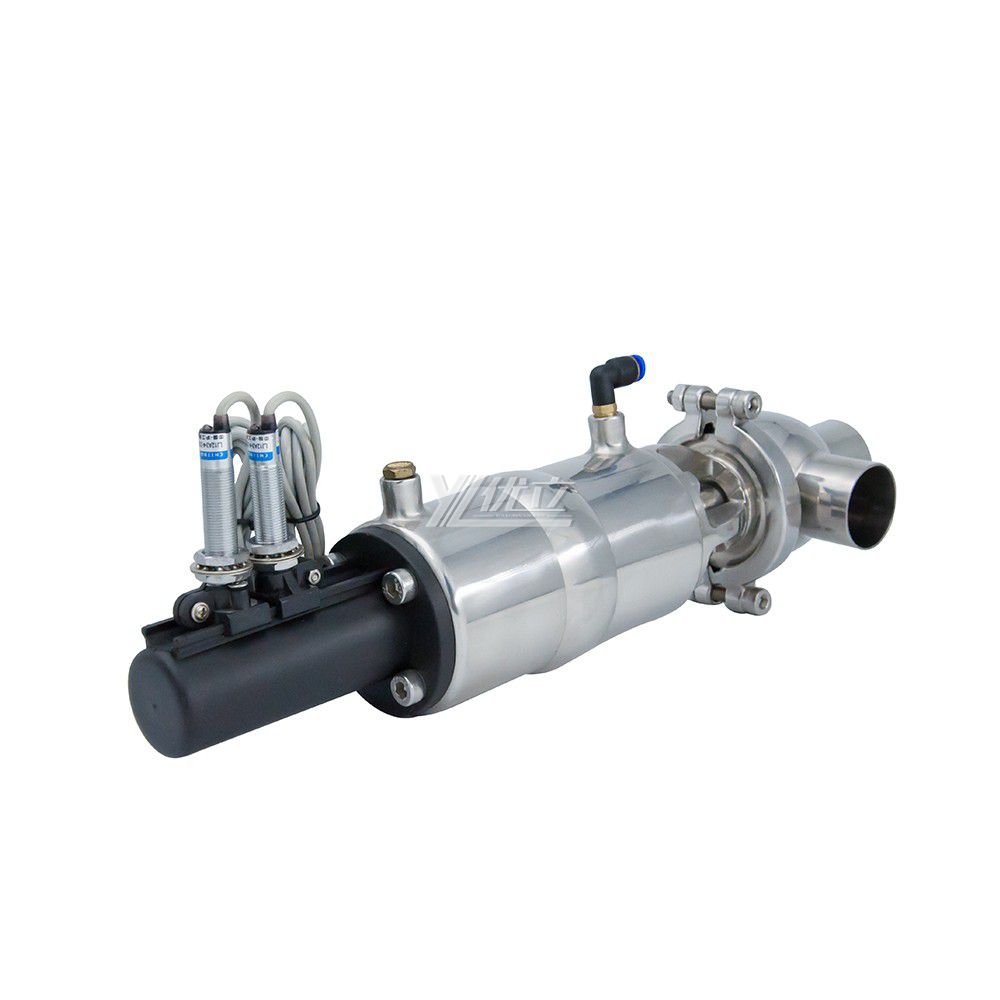

    Products Name: Stainless Steel Hygienic SS304 Pneumatic Flow Diversion Valve

    Stainless Steel SS304 Pneumatic Flow Diversion Valve
    Stainless Steel Hygienic SS304 Pneumatic Diversion Valve



    Technical Parameter

    Size available 1/2"~4",DN10~DN100
    Max. working pressure 147psi (10bar)
    Control air pressure 70 ~ 116psi (5 ~ 8bar)
    Working temperature range EPDM:-20 ~ 135°C
    Sterilization temperature 150°C, Max. 20 min
    Pneumatic connection R1/8" (BSP)
    Finish Surface <32Ra (<0.8um); Other finishes available upon request.
    End connections butt welded,tri clamp,male and female
    Standard DIN, 3A, SMS, RJT, IDF or others upon request
    Flow Medium Parts 304,304L,316L (1.4301,1.4307,1.4404)



    Applications

    Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.



    Operating Principle

    Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
    position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
    Sanitary reversing valve can
    be installed with smart controller.
