Stainless Steel Food Grade Pneumatic Flow Diverting Valve

Model NO.:D001002002003D

Pur Qty. / Ref FOB Price

1 PieceUS $5.8-43.48 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:1000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Size:1/2"~4",Dn10~Dn100

Flow Medium Parts:304,304L,316L (1.4301,1.4307,1.4404)

Connection Ends:Butt-Welded,Tri Clamp,Male and Female Threa

Actuator:Pneumatic Ss Actuatorelectric Actuator,Manual

Continuous Working Temperature:-20 ~ 135degree Celsius(EPDM)

Working Pressure:0~10bar (Standard)

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001002002003D

    Position Sensor24V DC,NPN/PNP Position Sensor (2)

    Flow TypeL,L/L,T/L,T,L/T,T/T

    Connection StandardDIN, 3A, SMS, Rjt, Idf

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Products Name: Stainless Steel Hygienic Welding Diversion Valve With NC Sensor Limit Switch

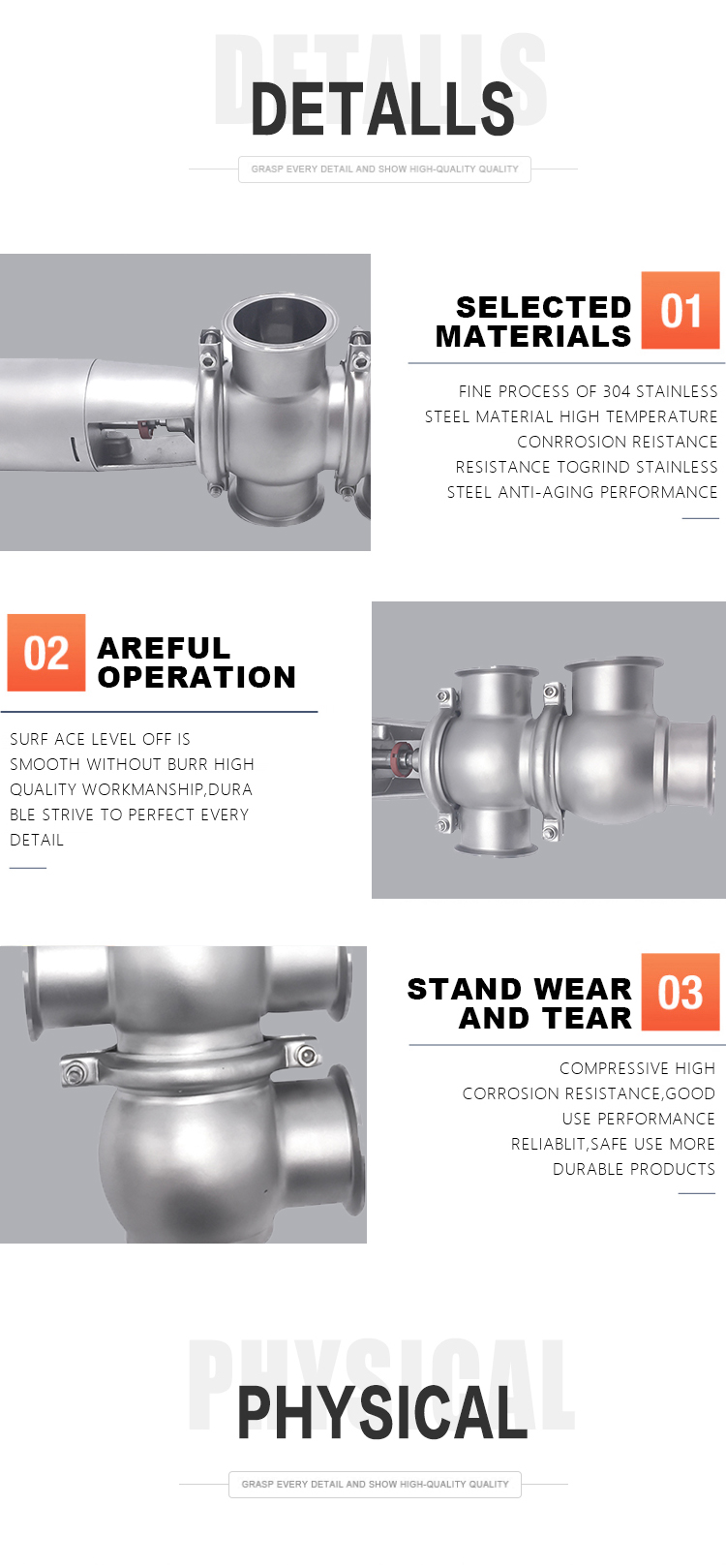

    Stainless Steel Hygienic Welding Diversion Valve
    Diversion Valve With NC Sensor Limit Switch



    Technical Parameter

    Size available 1/2"~4",DN10~DN100
    Max. working pressure 147psi (10bar)
    Control air pressure 70 ~ 116psi (5 ~ 8bar)
    Working temperature range EPDM:-20 ~ 135°C
    Sterilization temperature 150°C, Max. 20 min
    Pneumatic connection R1/8" (BSP)
    Finish Surface <32Ra (<0.8um); Other finishes available upon request.
    End connections butt welded,tri clamp,male and female
    Standard DIN, 3A, SMS, RJT, IDF or others upon request
    Flow Medium Parts 304,304L,316L (1.4301,1.4307,1.4404)



    Applications

    Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.



    Operating Principle

    Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
    position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
    Sanitary reversing valve can
    be installed with smart controller.





    Product application

    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
