Stainless Steel SS304 SS316L Adjustable Breather Valve

Model NO.:D001008005D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:1000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Quality:SS304,SS316L

Connection Form:DIN,3A,SMS,ISO

Size:Dn15-Dn50,3/4"-2 1/2",19mm-63mm

Working Pressure:6bar

Connection Ends:Male Ends,Tri Clamp Ends,Welded Ends

Pressure Control Range:0.5-6 Bar

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001008005D

    SealingFood Rubber

    Medium Temperature-10 Celsius Degree-+120 Celsius Degree

    MediumLiquid Material,Gas

    Surface TreatmentRa 0.8um

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

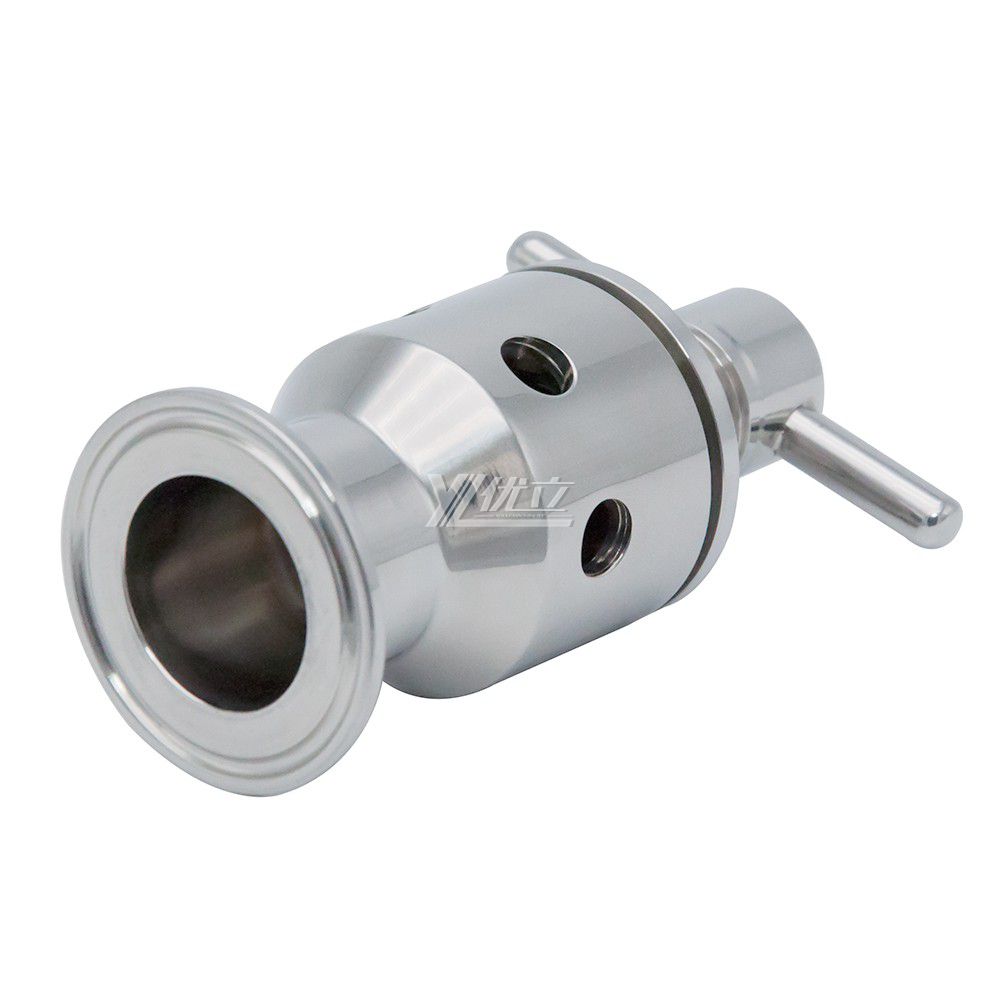

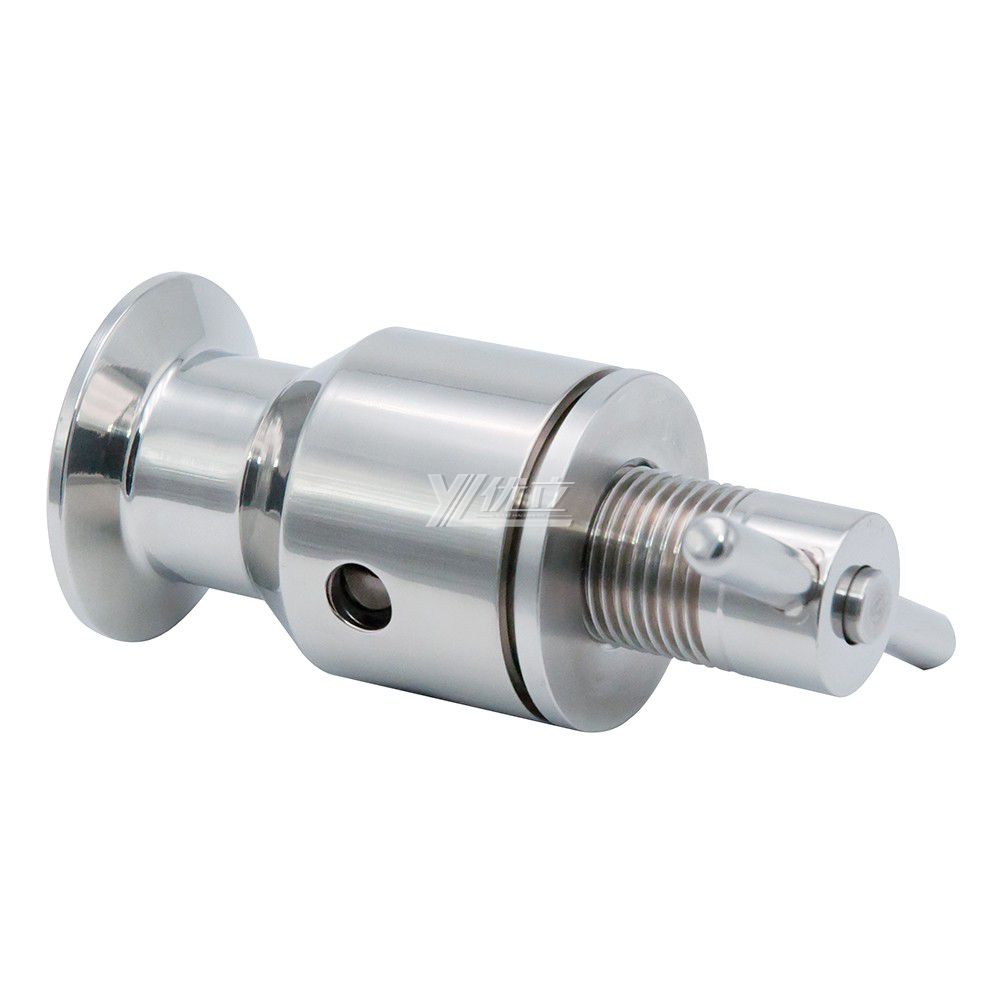

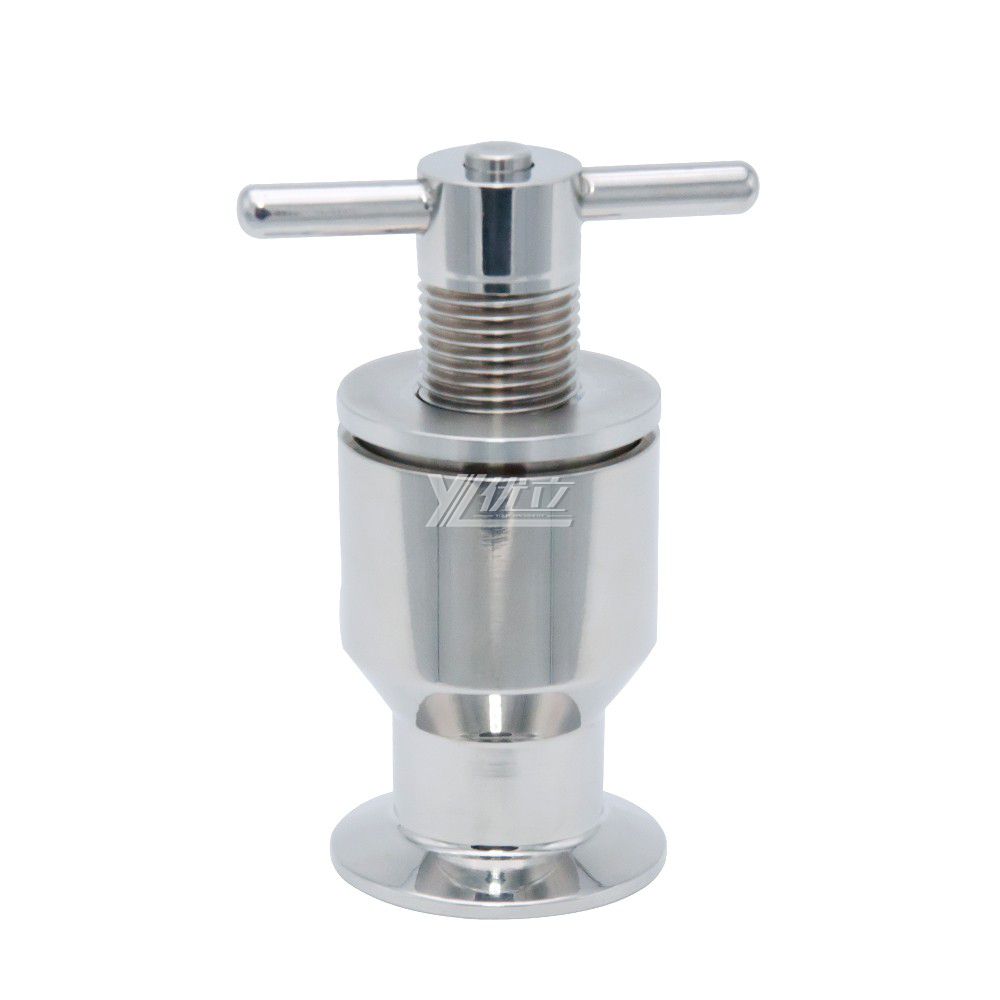

    Products Name:Stainless Steel SS304 SS316L Adjustable Breather Valve

    Stainless Steel Sanitary Pressure Relief Valve
    Stainless Steel Sanitary Pressure Relief Valve



    Technical Parameter

    Material  SS304
     Standard:  DIN,SMS,ISO,IDF,3A
     Size:  1"-3"/DN25-50
     Connection Way:  Weld, Clamp,Thread,Union
     Temperature of Media:  Normal Temperature
     Pressure:  1-6Bar
     Operated:  Pneumatic



    Features

    • Available in dead weight or spring loaded design
    • Fast acting, quick opening
    • Gas tight design
    • Choice of materials as per the fluid medium.
    • From 1 ½" to 2" size
    • Economically priced



    Stainless Steel Sanitary Tri Clamp Pressure Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.





    Applications

    It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
