SS304/SS316L Sanitary Union Exhaust Air Release Valve with Glass

Model NO.:D001008003D

Pur Qty. / Ref FOB Price

1 PieceUS $4.35-20.29 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:1000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Media:Liquid Material, Gas

Standard:ISO, 3A, SGS, Ce

Certification:CCC, ISO, CE

Temperature:Low Temperature

Connection:Thread

Pressure:Adjustable

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001008003D

    ClosedClosed

    StructureSpring

    MaterialStainless Steel

    Stainless SteelSS304, SS316L

    SizeDn15-Dn50, 3/4"-2 1/2", 19mm-63mm

    Connection StandardTri Clamp(50.5mm, 64mm)

    Working Pressure6bar

    SealingFood Rubber

    Pressure Control Range0.5-6 Bar

    External SurfaceShot Blasting

    Connection EndsMale Ends, Tri Clamp Ends, Welded Ends

    Surface TreatmentRa 0.8um

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

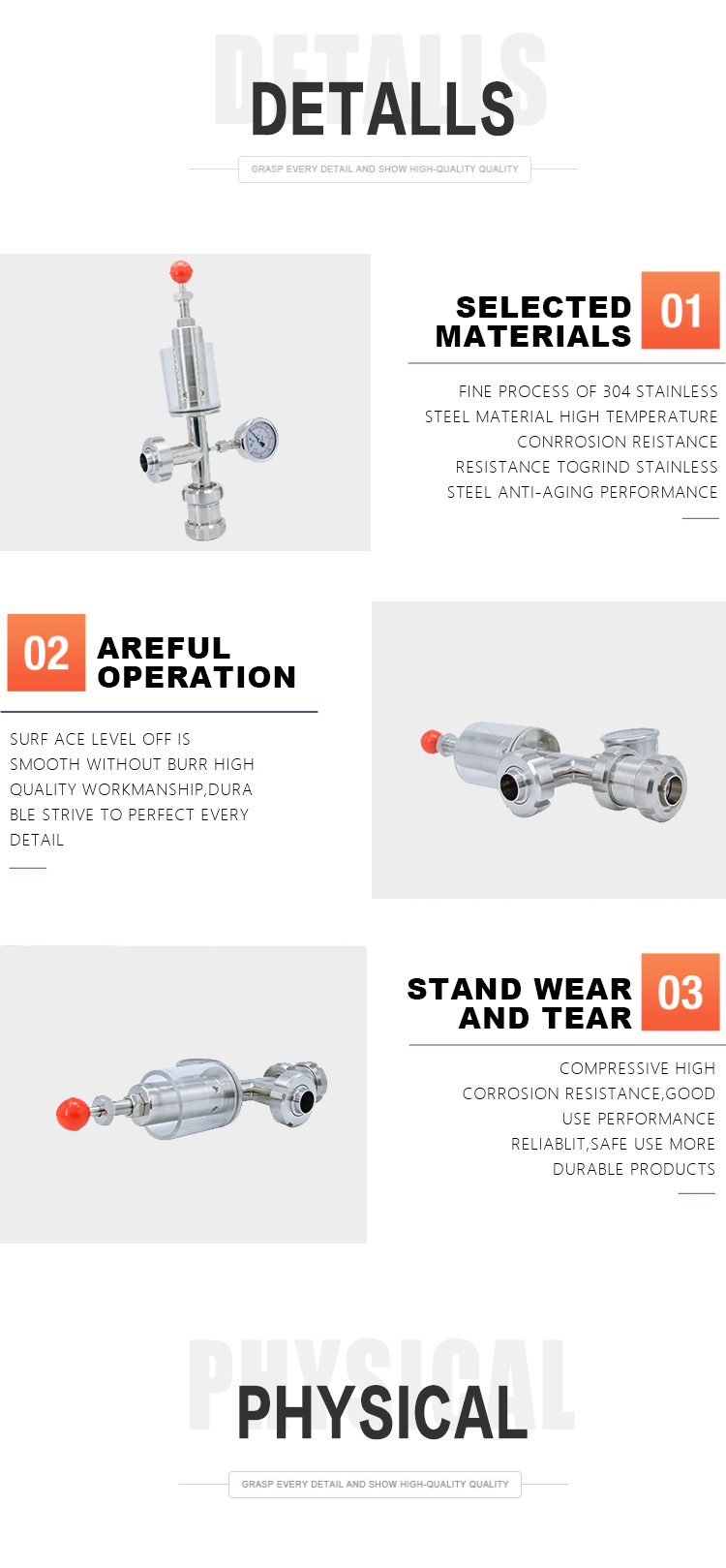

    Products Name:SS304/SS316L Sanitary Union Exhaust Air Release Valve with Glass

    Stainless Steel SS304 Hygienic Tri Clamp Air Exhaust Valve Release Valve with Pressure Gauge
    Release Valve with Pressure Gauge



    Technical Parameter

    Material  SS304
     Standard:  DIN,SMS,ISO,IDF,3A
     Size:  1"-3"/DN25-50
     Connection Way:  Weld, Clamp,Thread,Union
     Temperature of Media:  Normal Temperature
     Pressure:  1-6Bar
     Operated:  Pneumatic



    Features

    • Available in dead weight or spring loaded design
    • Fast acting, quick opening
    • Gas tight design
    • Choice of materials as per the fluid medium.
    • From 1 ½" to 2" size
    • Economically priced



    Stainless Steel Sanitary Tri Clamp Pressure Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.





    Applications

    It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
