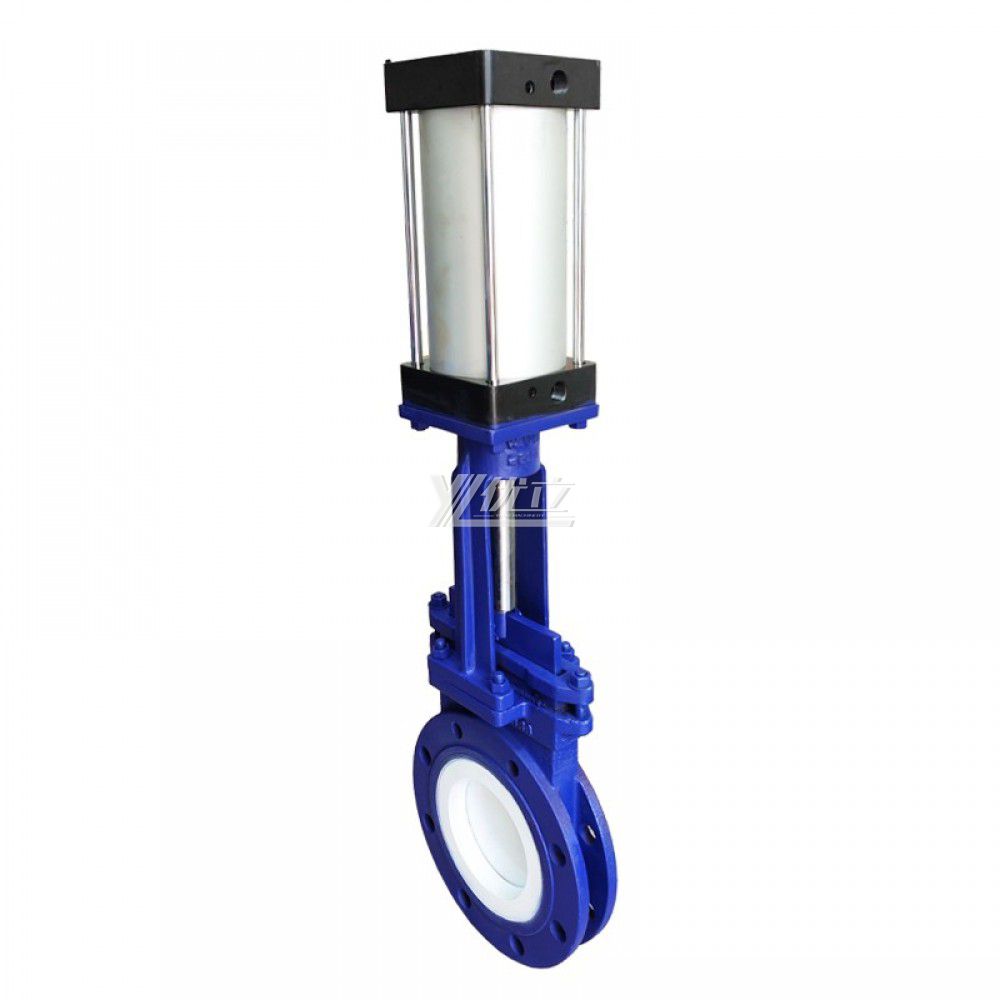

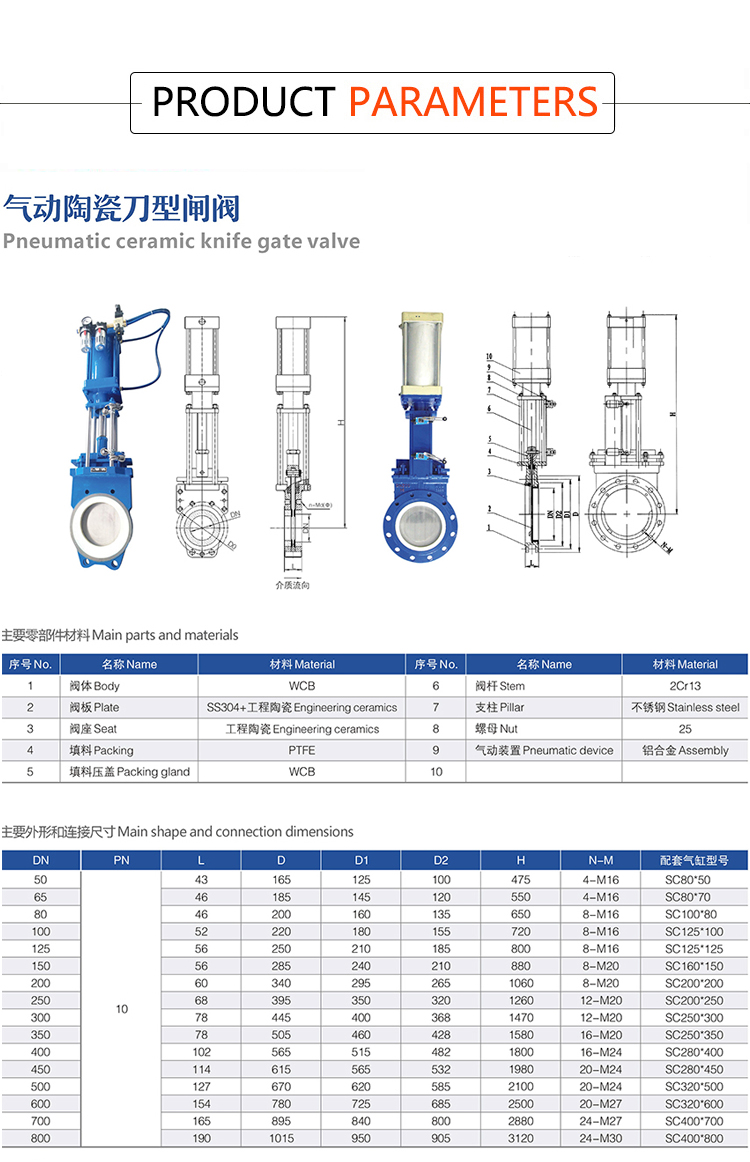

Products Name:YOULI High Temperature ANSI 150LB 304 316 JIS 10K 1.6mpa WCB Pneumatic Actuator Ceramics Flanged Knife Gate Valve
Pneumatic Knife Gate Valve

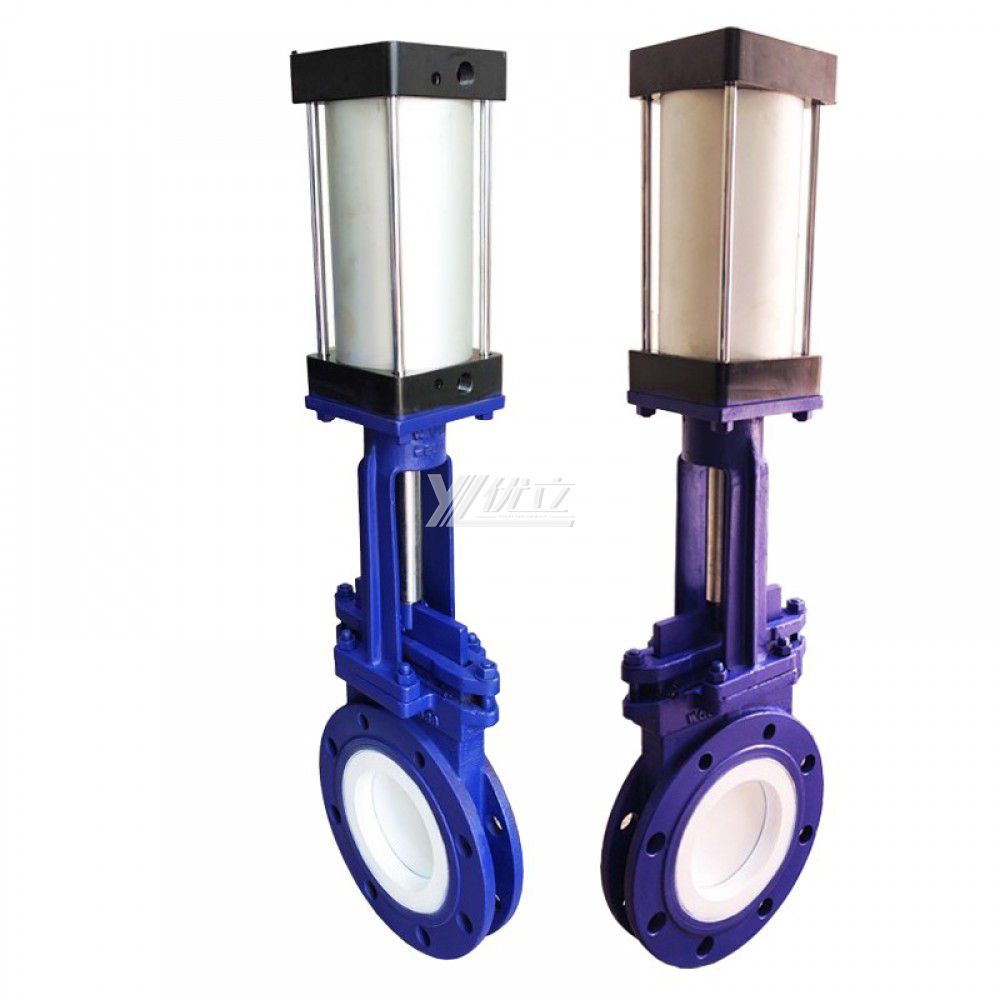

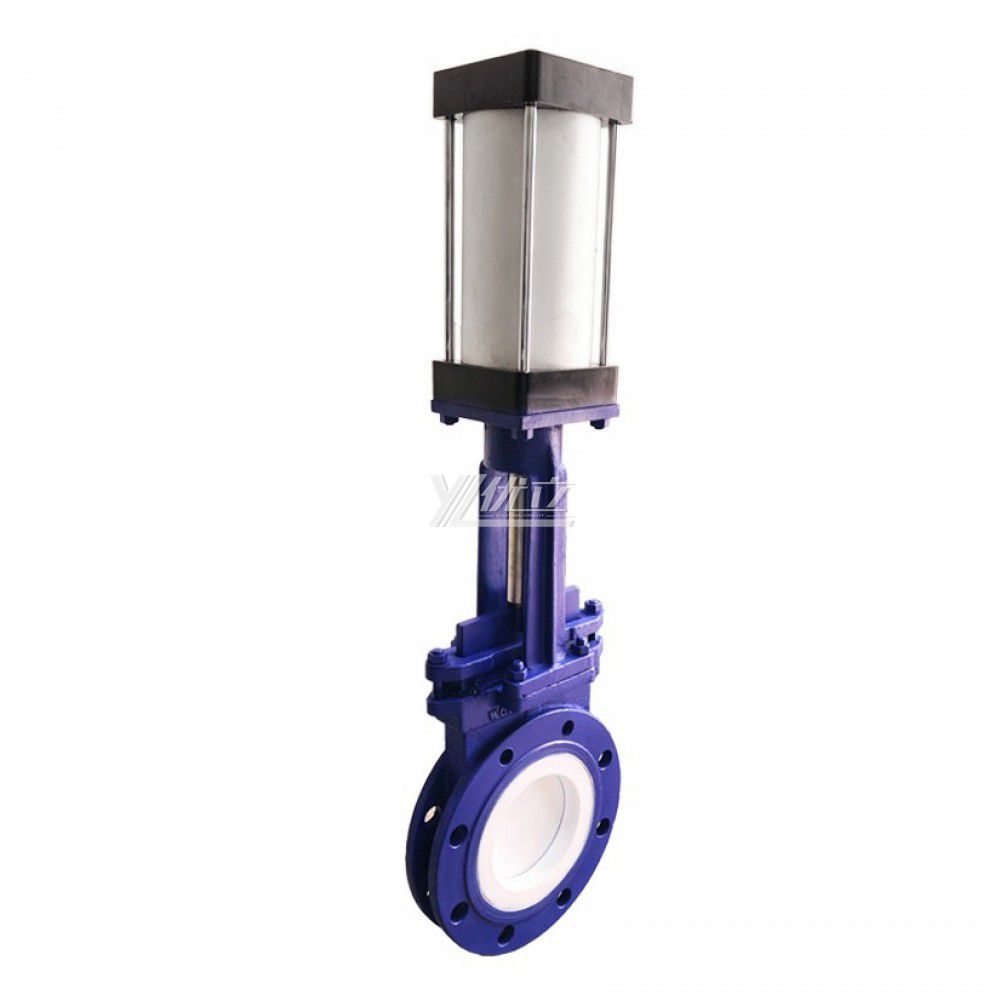

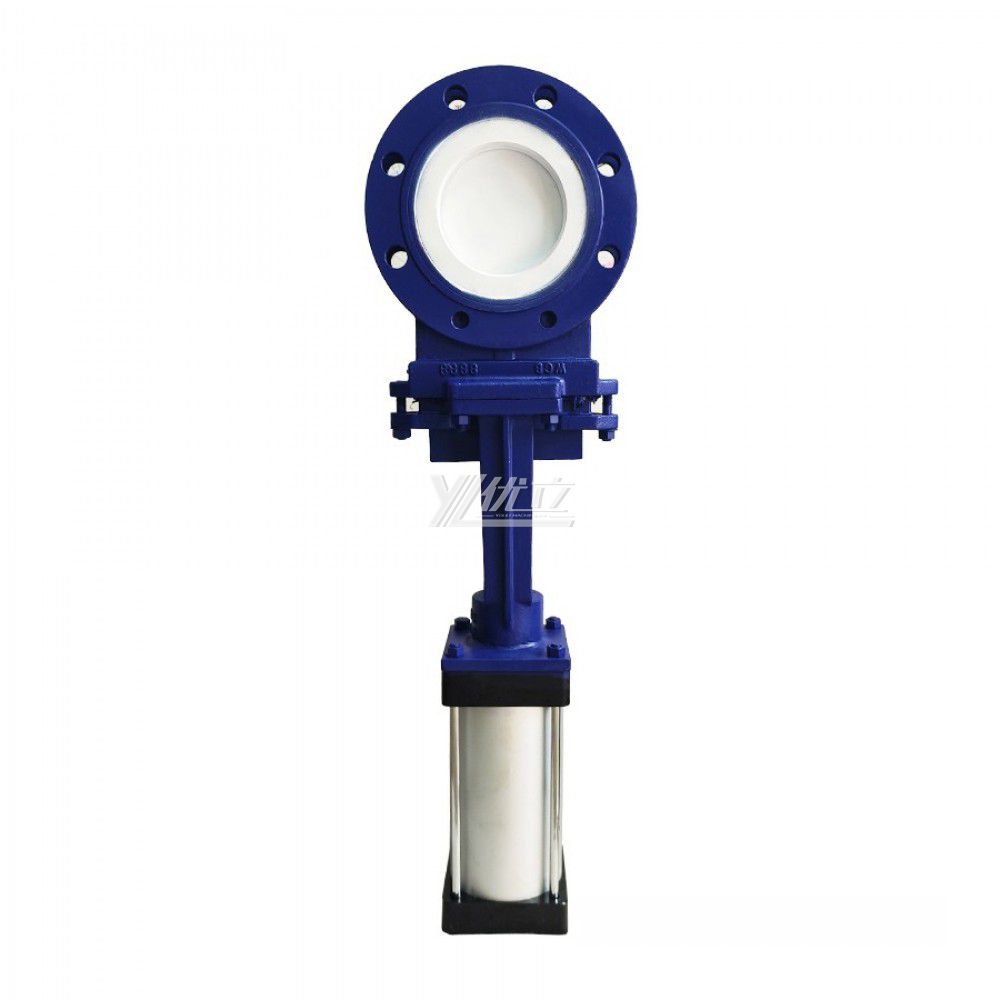

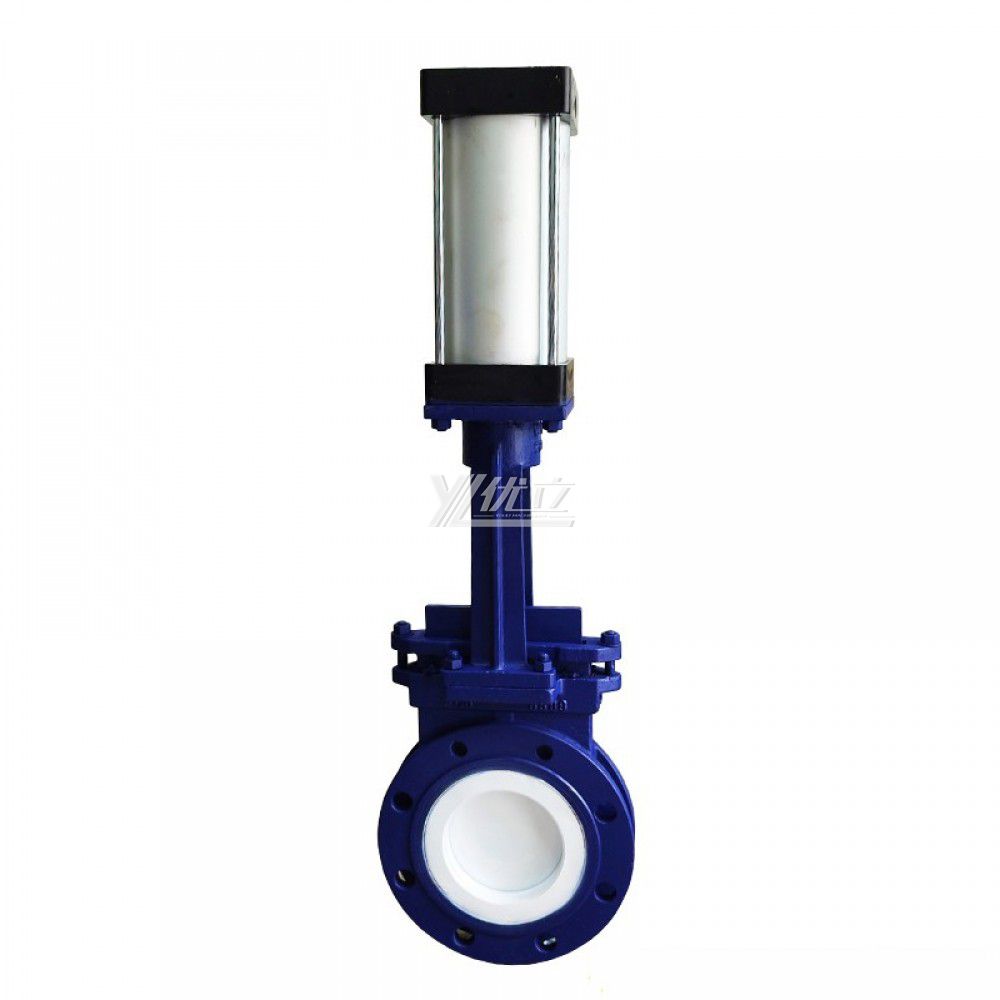

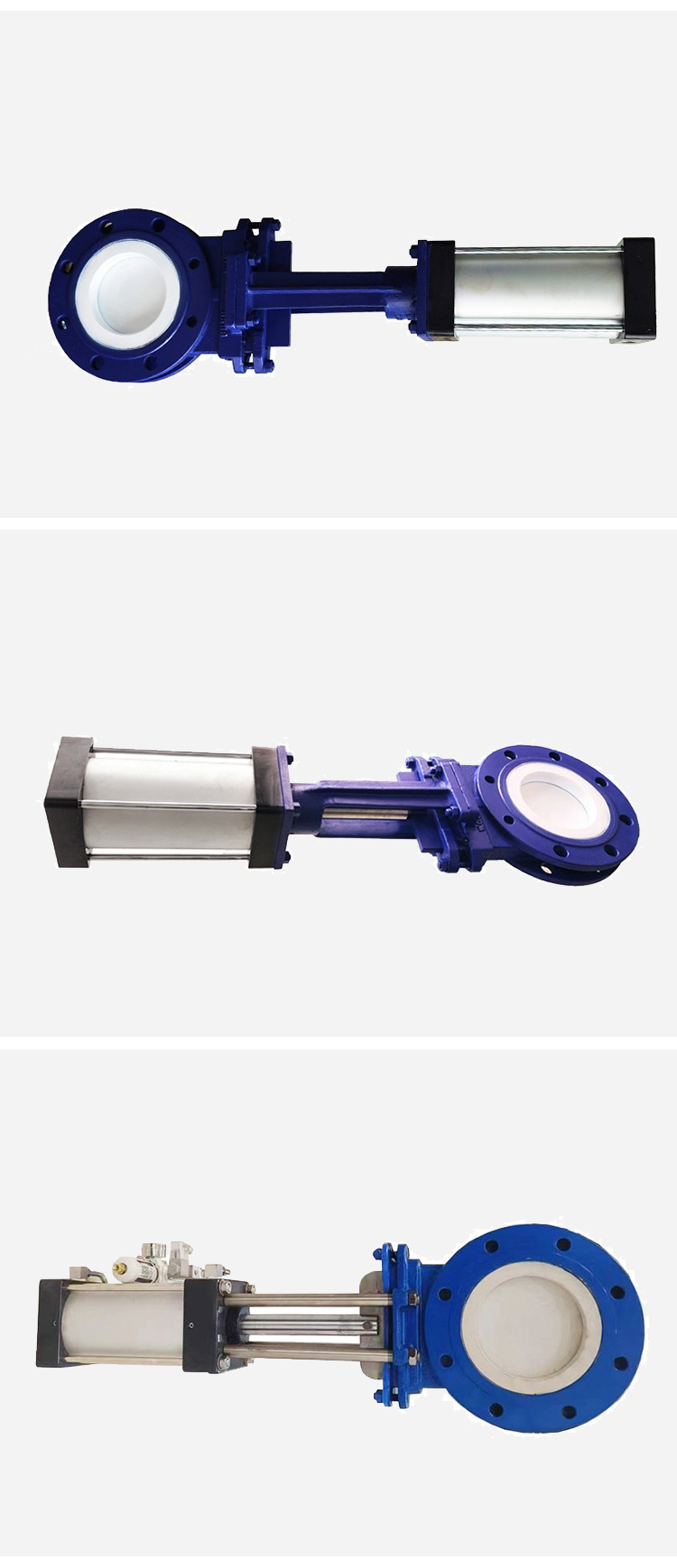

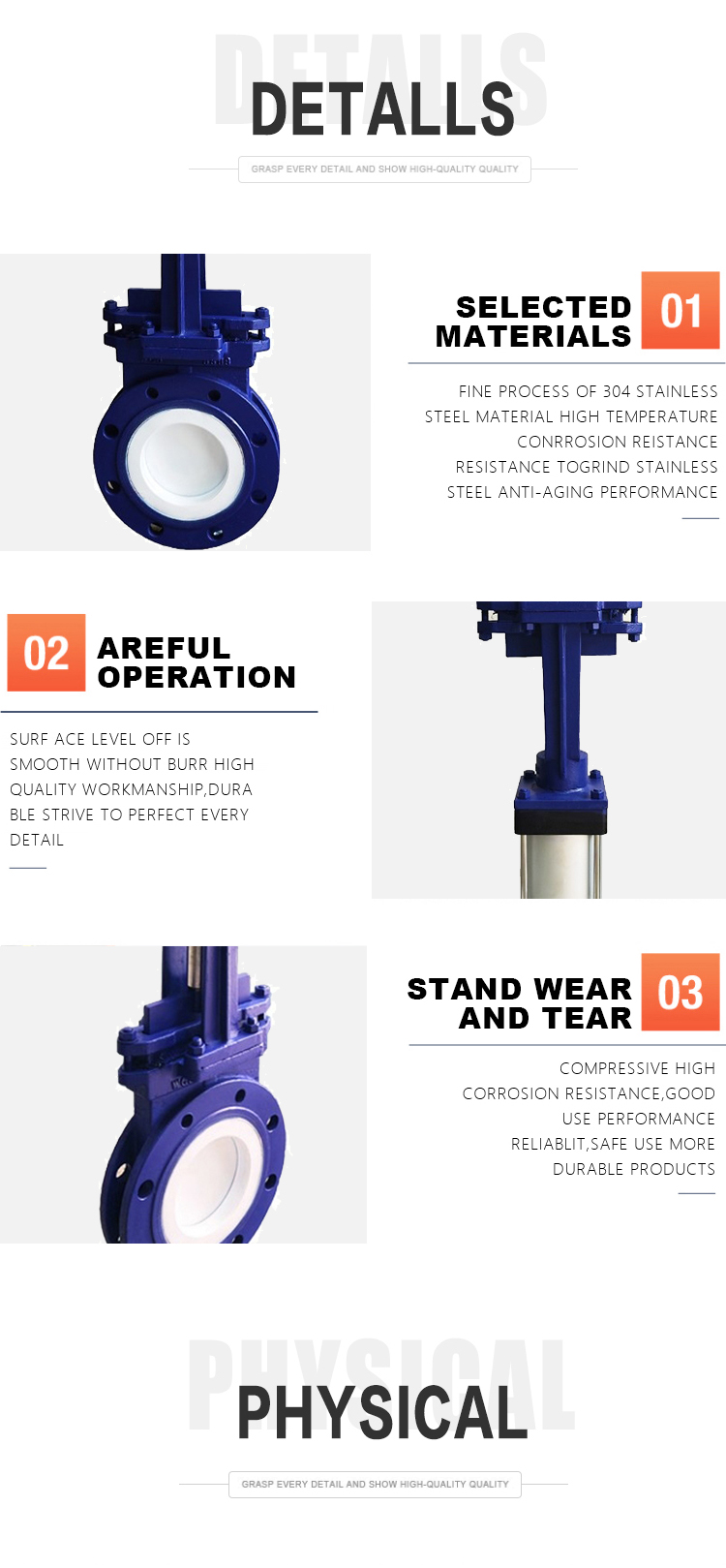

Pneumatic Ceramics Knife Gate Valve
| Body material |
WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M), etc. |
| Full port |
2"-12"(DN50-DN300) |
| Working pressure |
JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40 |
|
Medium temperature
|
- 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 425°C) |
| Connection type |
Weld,Thread,Socket,Clamped,Flanged |
| Thread Standard |
BSPT,Optional(NPT, BSP, BSPP) |
| Production type |
Casting |
| Sealing |
Metal,PTFE,RPTFE,PPL ETC |
| ISO 5211 Direct mounting pad |
Yes |
| Investment casting |
Yes |
| Blow-out proof stem |
Yes |
| Anti-static device |
option |
| AP1607 Fire safe |
option |
| Locking device handle |
option |
| Pneumatic actuator |
Double acting,option(Spring return ) |
| Solenoid valve |
option(DC24V,AC220V) |
| Filter |
option |
| Handwheel |
option |
| Limit switch |
option(APL210,APL410 explosion-proof,APL510 explosion-proof) |
| Positioner |
option(TY-1000,4-20ma Signal feedback) |
| Production process |
Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
| Capacity to produce |
10000PCS/Mouth |
| Certification |
CE, ISO, our factory has been inspected by leyon and TUV |
| MOQ |
1PC |
| HS Code |
8481804090 |
| Trademark |
YOULI |
| Application |
Suitable for water, oil, air and some corrosive liquid etc |
| Buyer's drawings or designs are available |
| Package |
Cartons without pallet |
| Cartons with pallet |
| Or as buyer's requirements |
| Delivery details |
According to the quantities and specifications of each order |
| Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle
The knife gate valve, also known as the knife gate valve, knife gate valve, slurry valve, and mud valve, has a gate plate as its opening and closing member. The direction of movement of the gate plate is perpendicular to the direction of fluid flow. The knife-shaped gate plate, which can cut fiber materials, is used to cut off the medium. The gate plate has two sealing surfaces. The most commonly used mode of gate valve has two sealing surfaces forming a wedge shape, and the wedge angle varies depending on the valve parameters, usually 5°. The knife gate valve can be made into a whole called a rigid gate plate, or it can be made into a gate plate that can produce slight deformation to improve its processability and compensate for deviations in the sealing surface angle during processing. This type of gate plate is called an elastic gate plate. The valve body actually does not have a chamber, and the gate plate rises and falls in a side guide slot and is pressed tightly against the valve seat by a lug at the bottom. If high media sealing is required, an O-shaped sealing valve seat can be used to achieve bidirectional sealing. The knife gate valve has a small installation space, low working pressure, and is not prone to accumulation of debris, and its price is relatively low.
When the knife gate valve is closed, the sealing surface can be sealed by the pressure of the medium only, that is, the sealing surface of the gate plate is pressed against the valve seat on the other side by the pressure of the medium to ensure the sealing of the sealing surface. This is self-sealing. Most gate valves use forced sealing, that is, when the valve is closed, external force is used to force the gate plate against the valve seat to ensure the sealing of the sealing surface. This type of valve should generally be installed vertically in the pipeline.
Applications
It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Our Service
| On Samples |
Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales |
Free replacement if there is any quality problem |
| On Delivery |
Never delay delivery time |
| On Materials |
Ensure material pure |
| Ensure material pure |
Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
