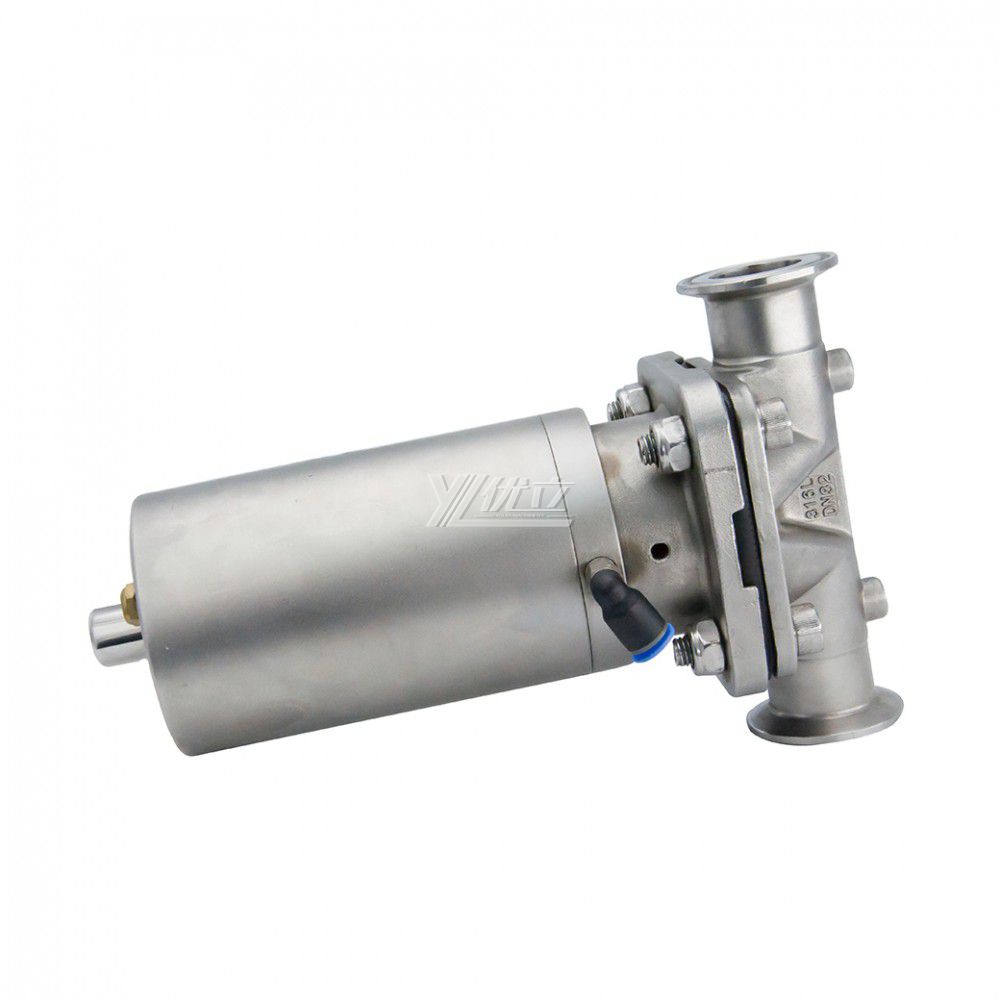

SS316L Clamping Diaphragm Valves with Stainless Steel Pneumatic Head

Model NO.:D001004002001D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:3000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Actuator:Pneumatic

Connection:Threaded Triclamp, Welded

Material:Stainless Steel

Structure:Through Way Diaphragm Valve

Pressure:Ordinary Pressure

Flow Direction:Unidirection

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001004002001D

    FunctionSolenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

    UsageFlow Control

    StandardDIN, GB, ANSI, BSW, JIS

    Valve Body MaterialSs316L

    Availably Standard3A/Bpe/DIN/ISO/Idf/SMS

    Seal MaterialPTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

    Availably Size1"-3", Dn20-Dn65

    Availably ConnectionClamp/Weld/Thread/Special Connection

    OperatedManual, Pneumatic for Pulse Jet Diaphragm Valve

    Availably StructureStraight, Tee, U-Type, Tank Bottom

    Max. Working Pressure10bar

    Max. Working Temperature120 Degree C

    Application ScopeDairy, Food, Beverage, Pharmacy, Cosmetic, etc

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

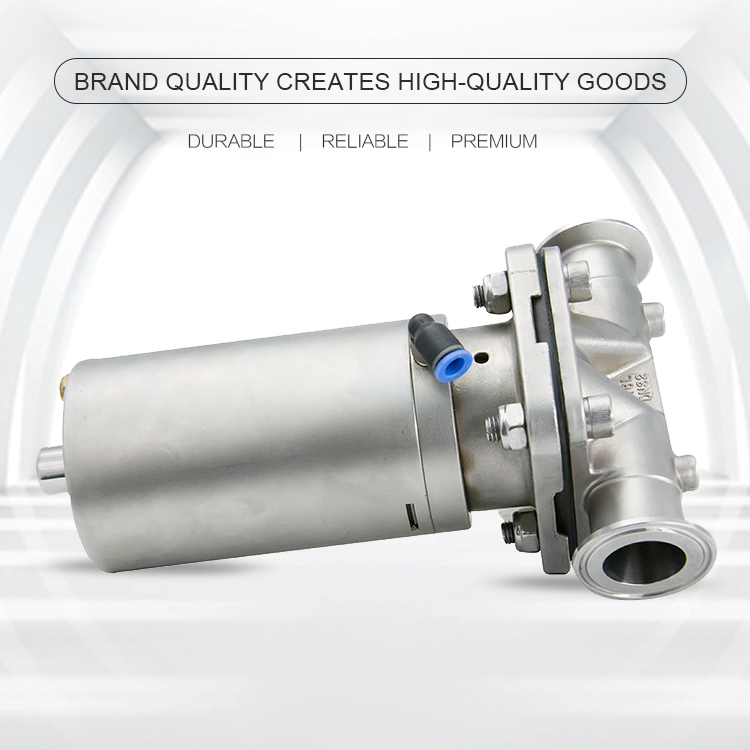

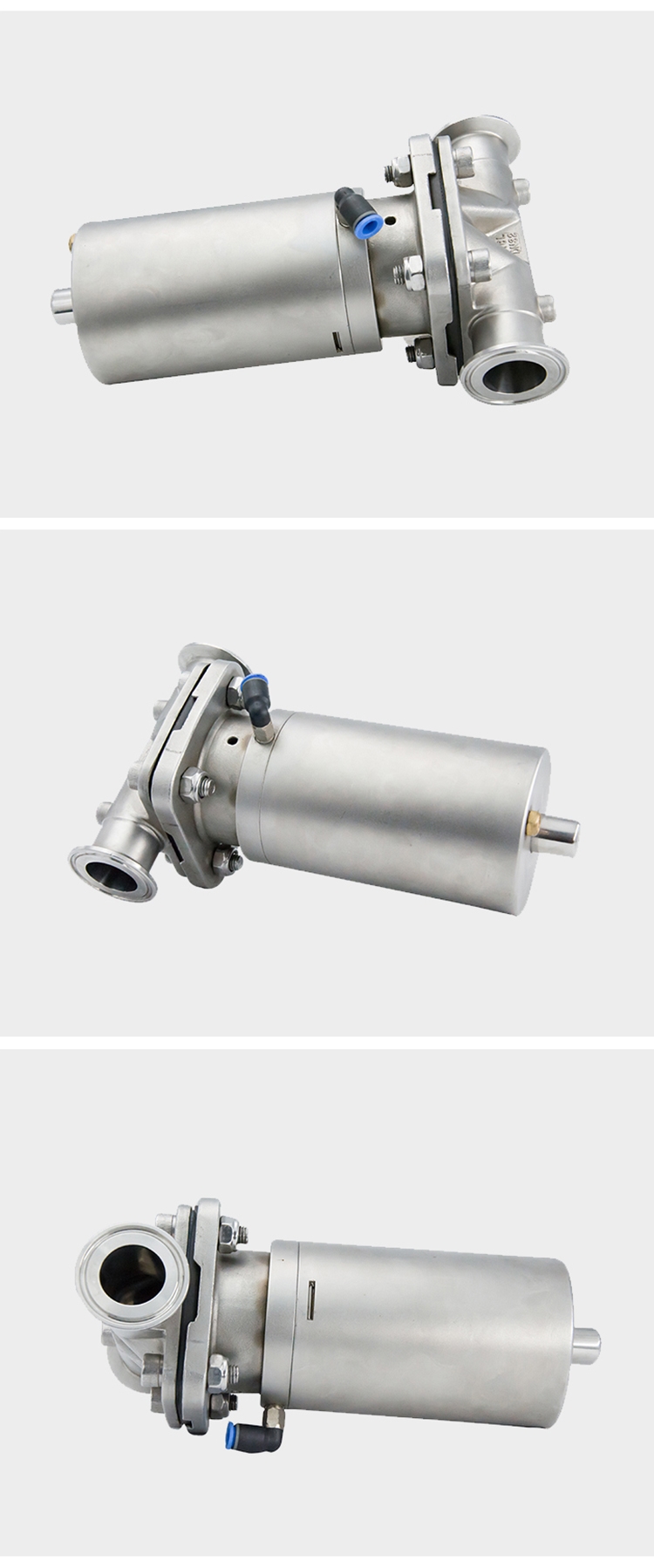

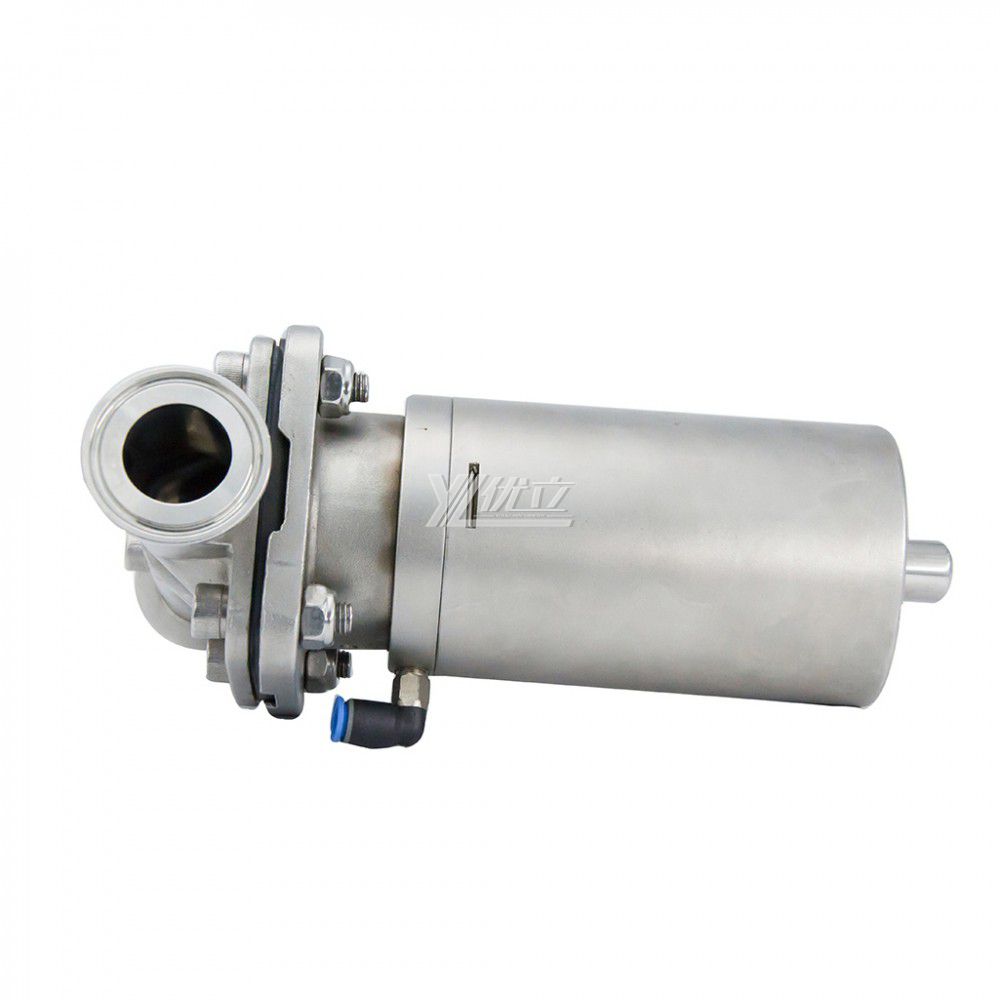

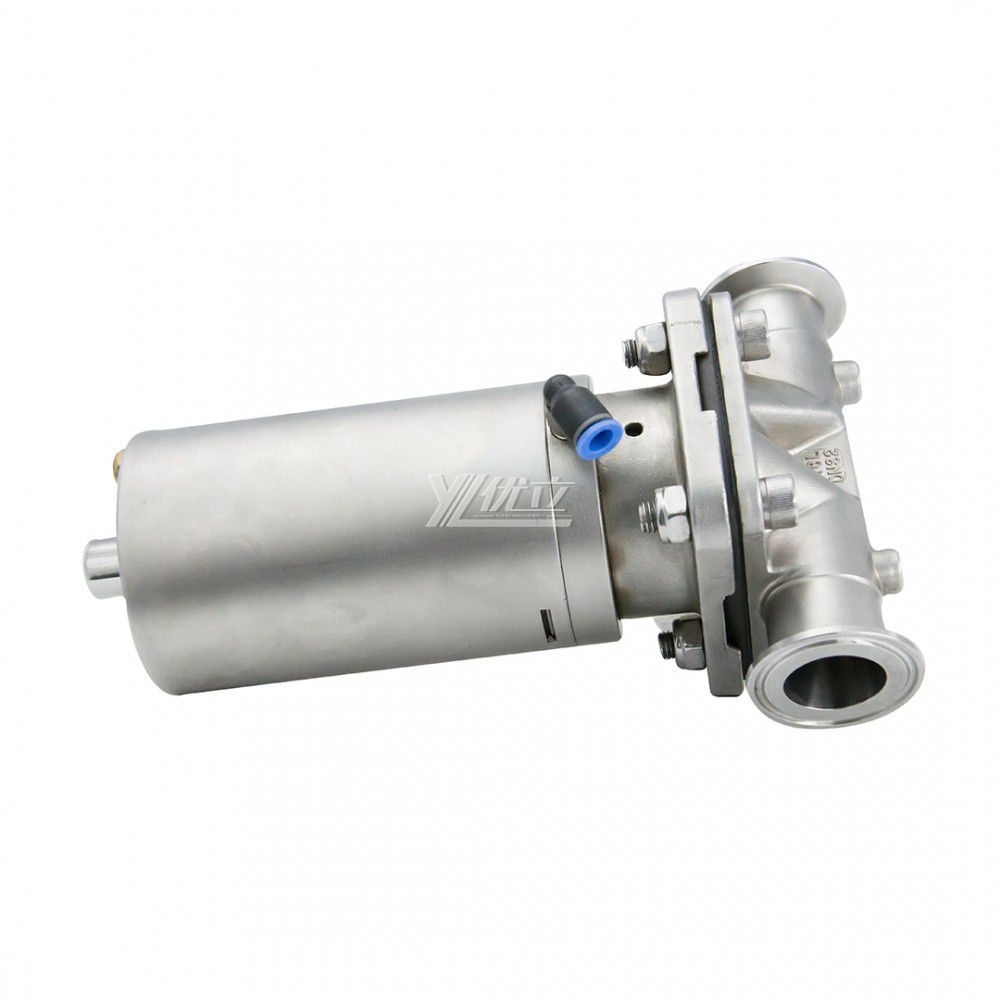

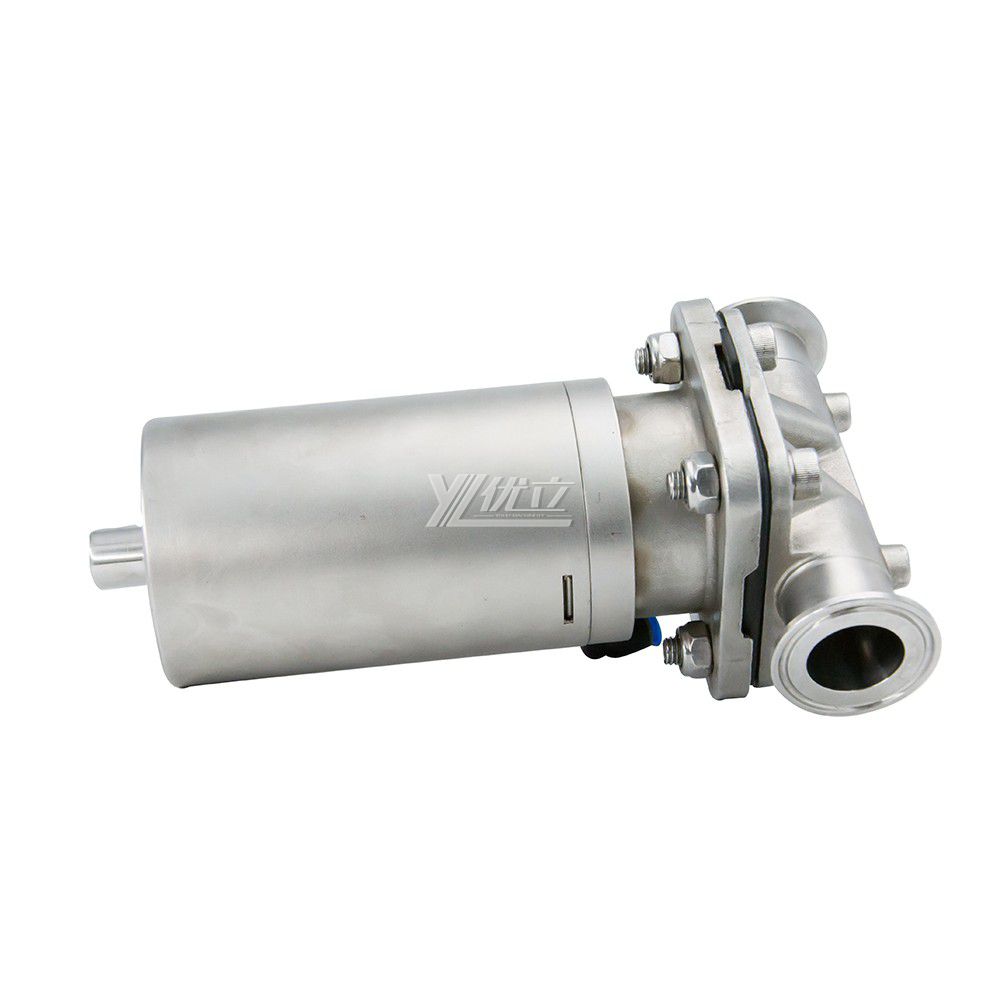

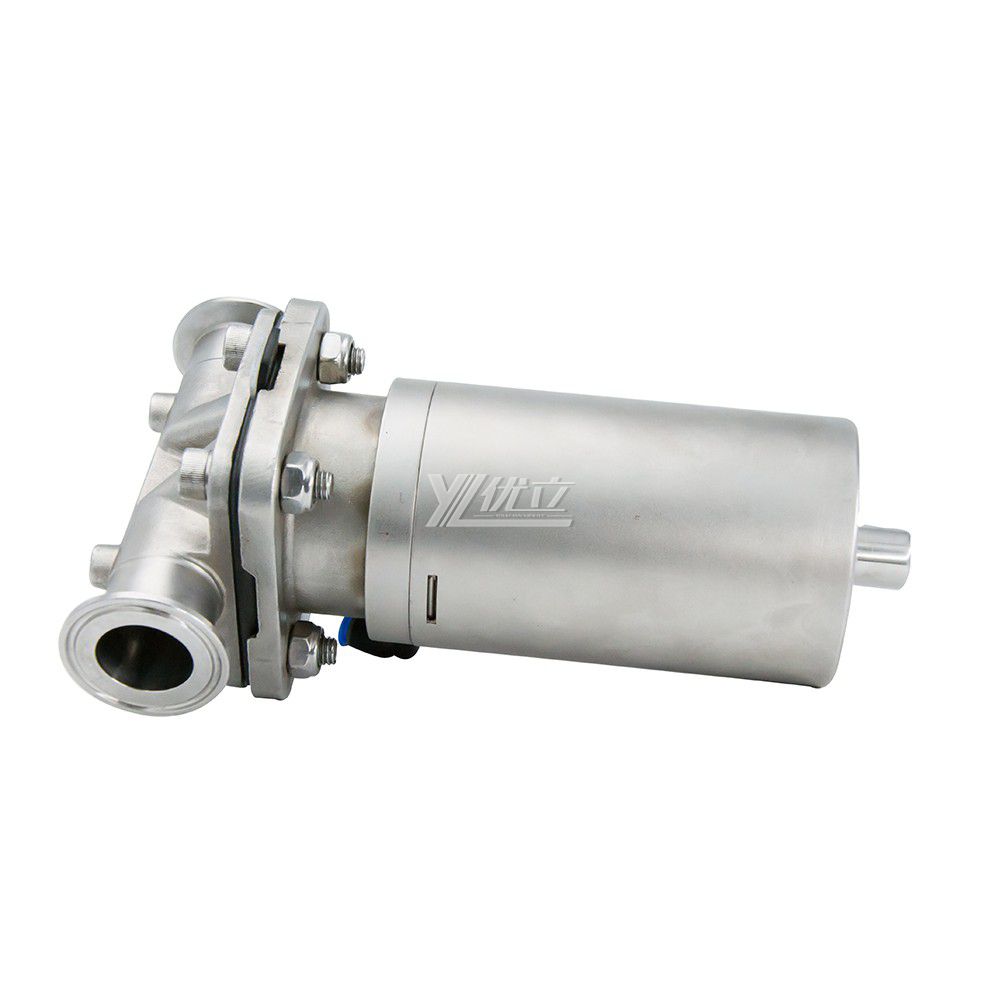

    Products Name: SS316L Clamping Diaphragm Valves with Stainless Steel Pneumatic Head

    Diaphragm Membrane Valve
    Pneumatic Diaphragm Valve

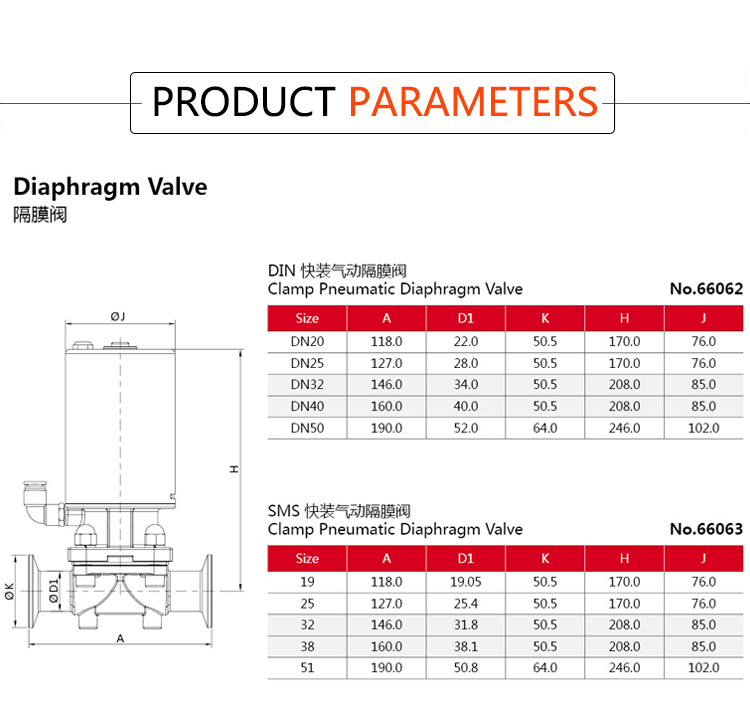

    Technical Parameter

    Valve Body Material SS316L
    Availably standard 3A/BPE/DIN/ISO/IDF/SMS
    Availably  size 1"-3",DN20-DN65
    Seal Material PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
    Availably connection Clamp/weld/thread/special connection
    Operated Manual,Pneumatic
    Max. Working Pressure 10Bar
    Availably structure Straight, tee, U-type, tank bottom
    Max. Working Temperature 120 degree C
    Application scope Dairy,food, beverage, pharmacy, cosmetic, etc



    Applications

    It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



    Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.



    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
