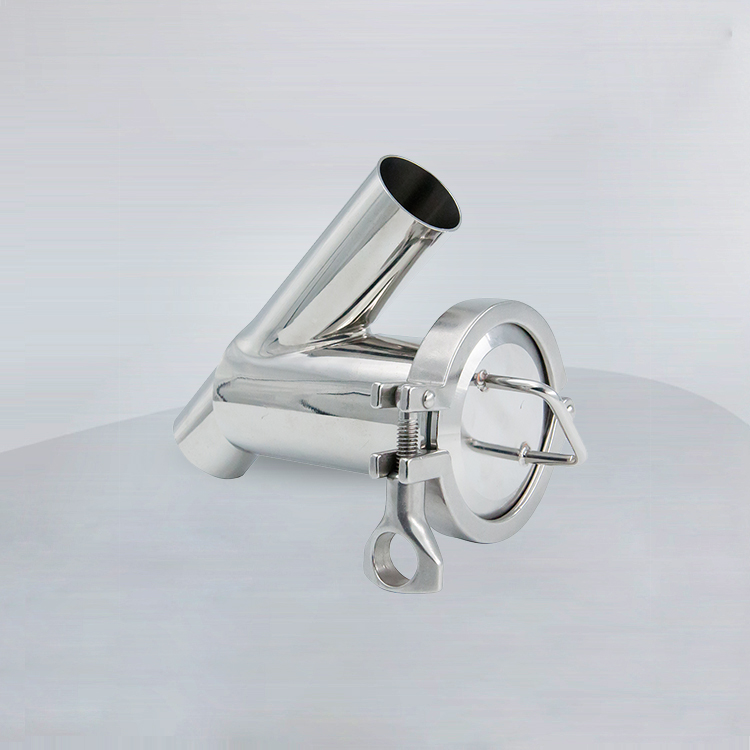

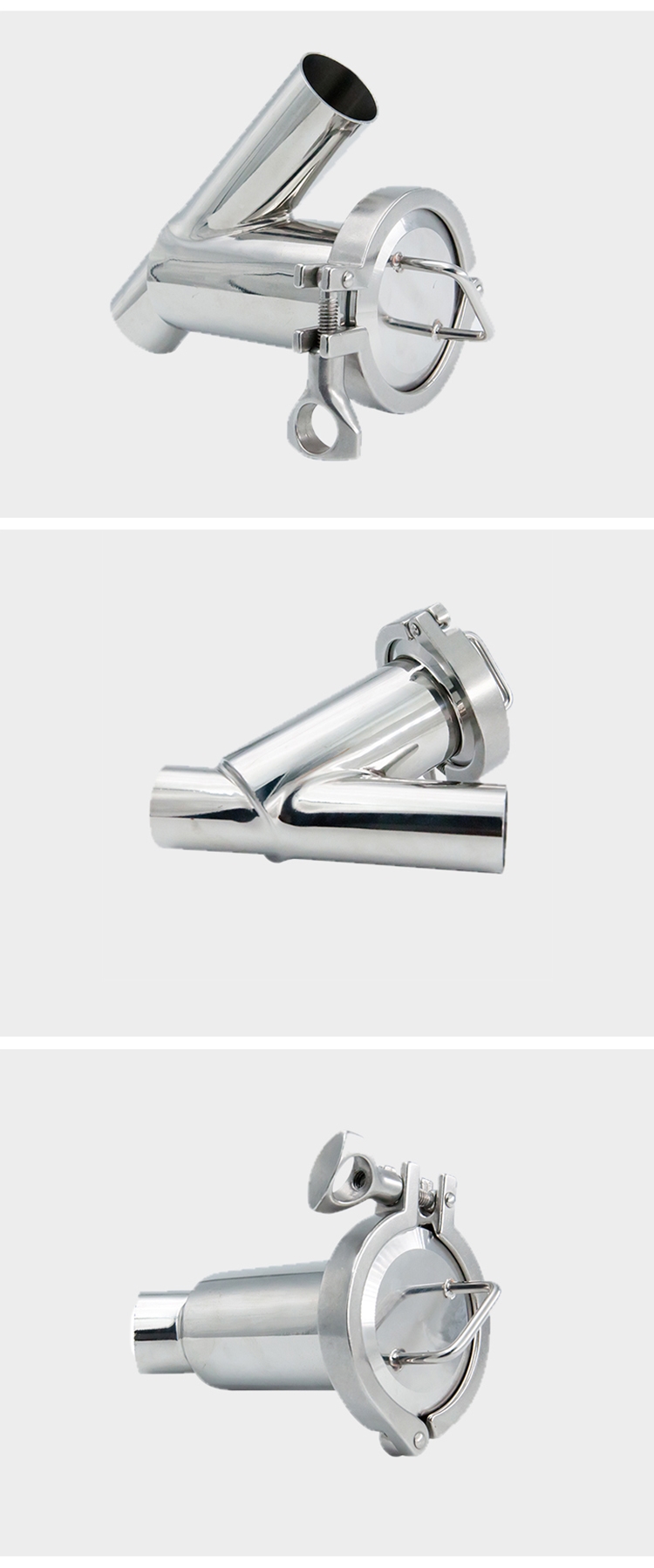

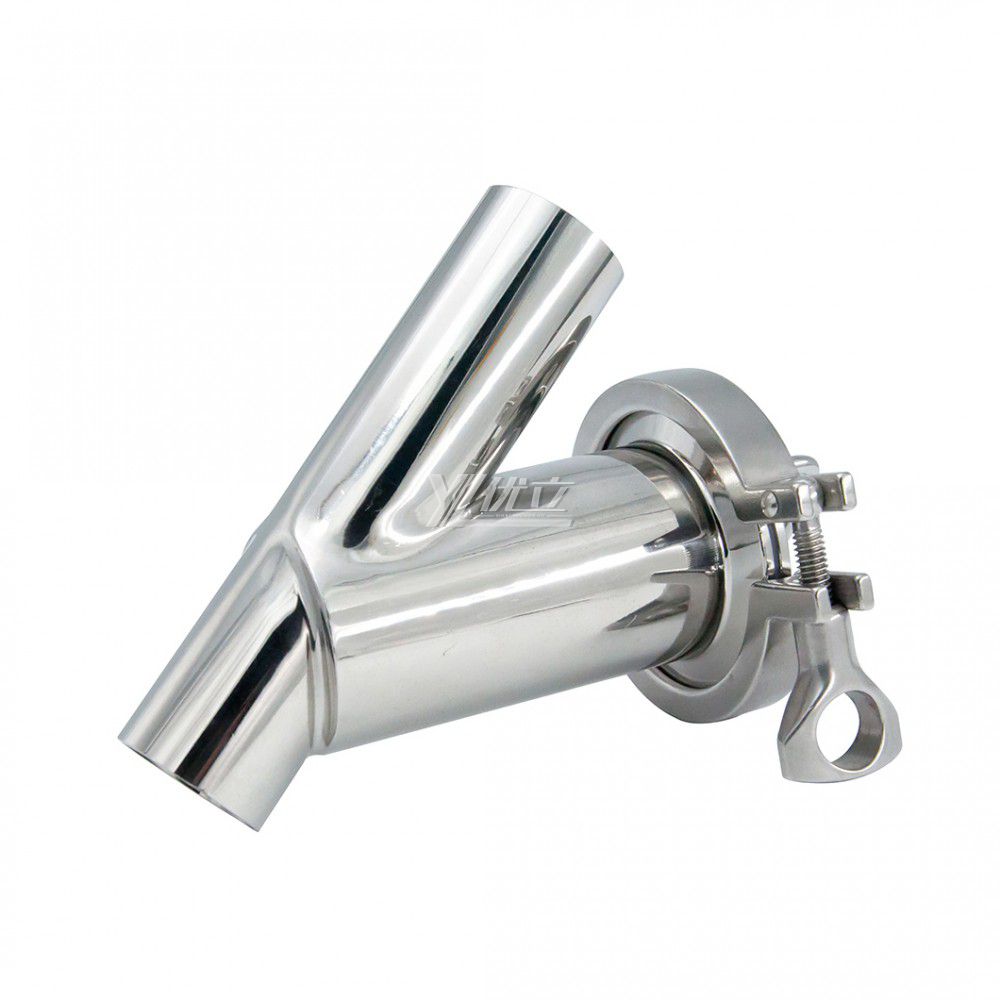

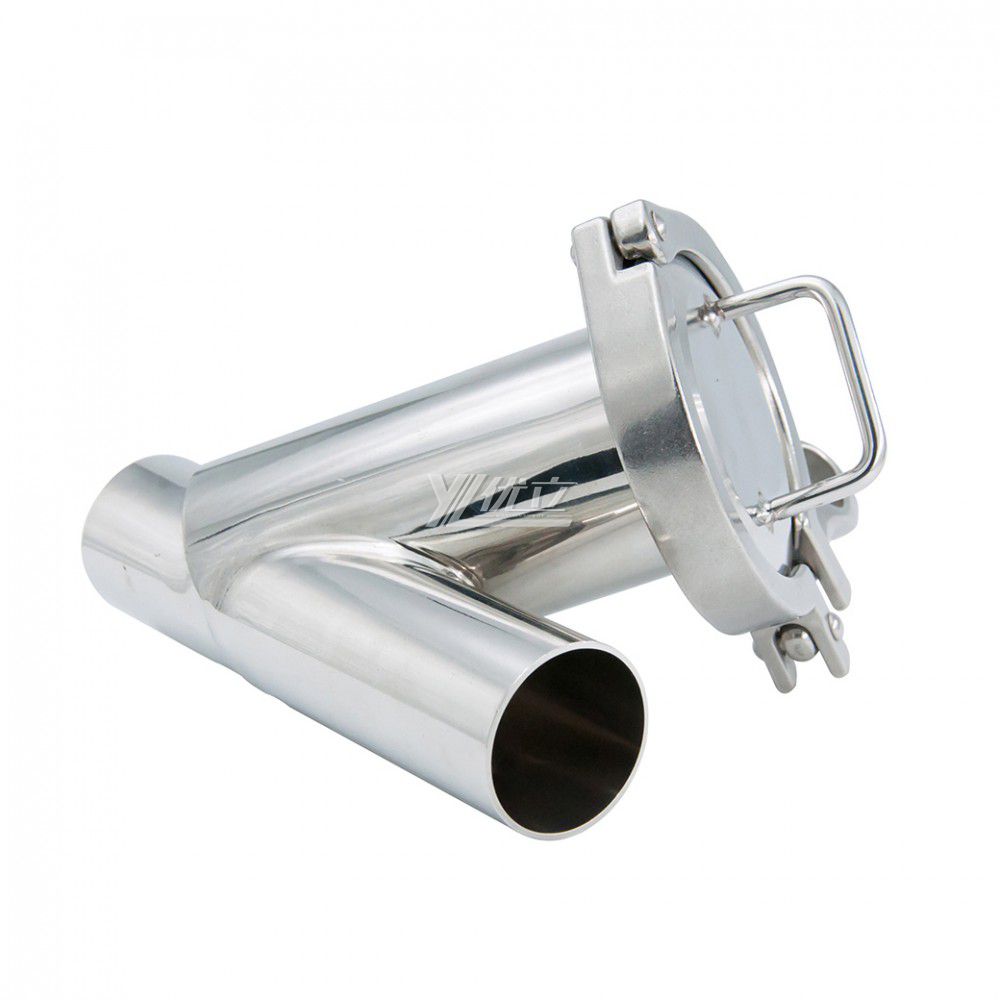

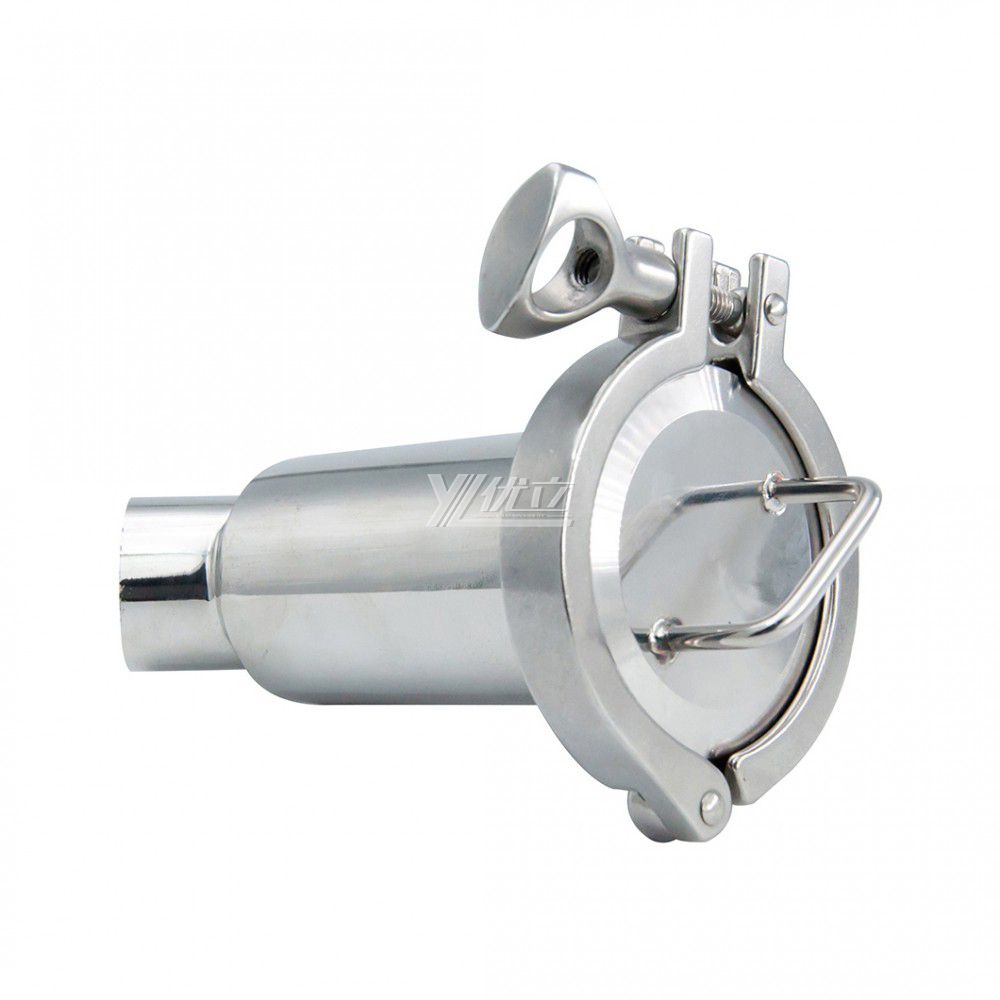

Stainless Steel Sanitary Butt-Weld Y Filter Stainer

Model NO.:D005001001D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Quality:SS304, SS304L ,SS316, SS316L

Availabe Standard:SMS,DIN,AAA,ISO,Idf

Temperature Range:-20degree Celsius~135degree Celsius

Seal Material:Silicone, EPDM, Viton, NBR

Mesh Size&Microns:3-400mesh&6730-37microns

Pressure Range:1.5~3bar

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D005001001D

    StructureStaringht Type,Angle Type,Y Type

    Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

    ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

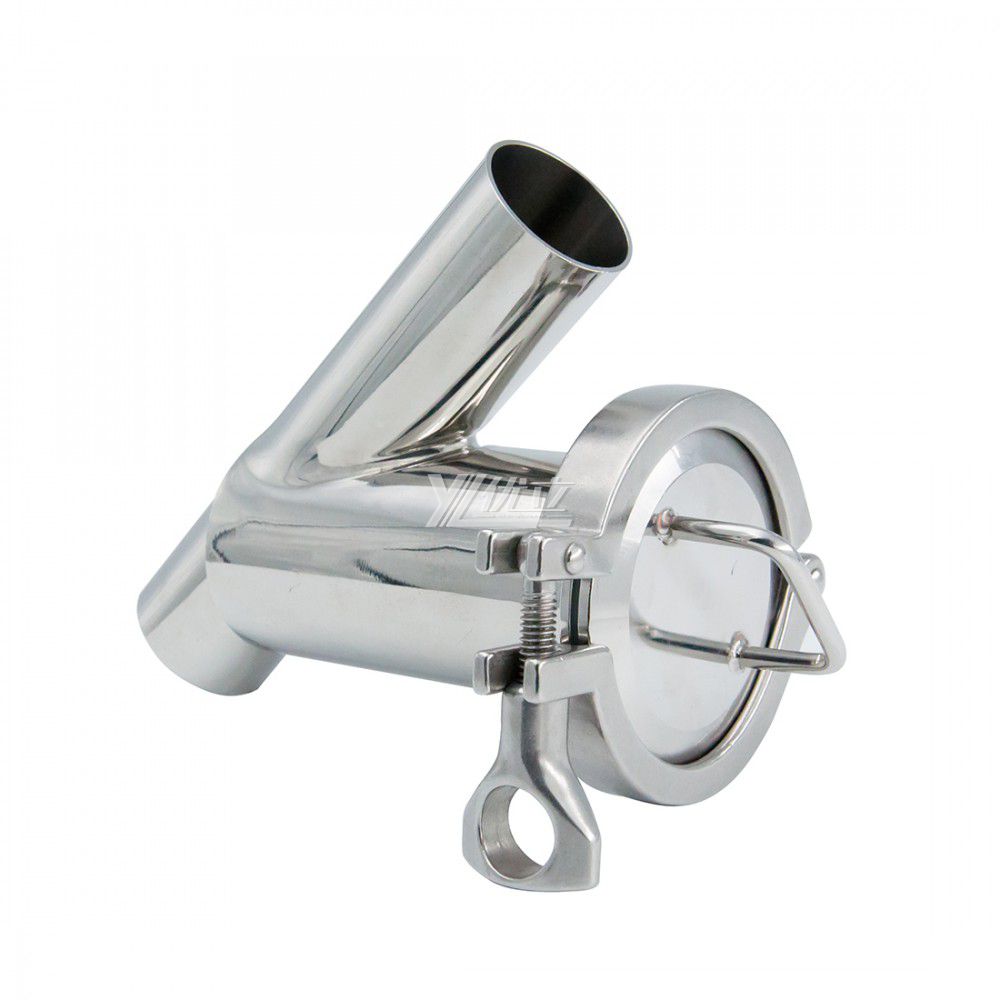

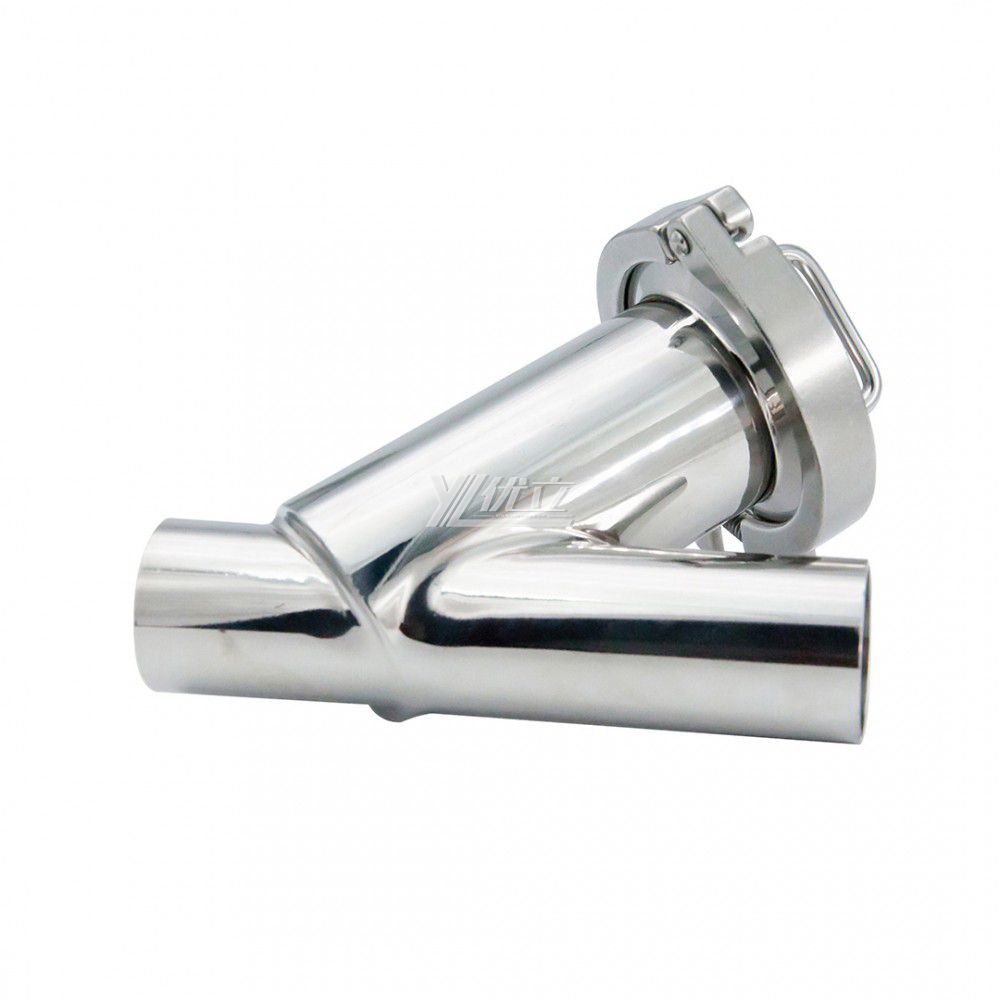

    Product name:Stainless Steel Sanitary Butt-Weld Y Filter Stainer

    Hygienic Butt-Weld Y Filter Stainer
    Stainless Steel Sanitary Butt-Weld Y Filter Stainer

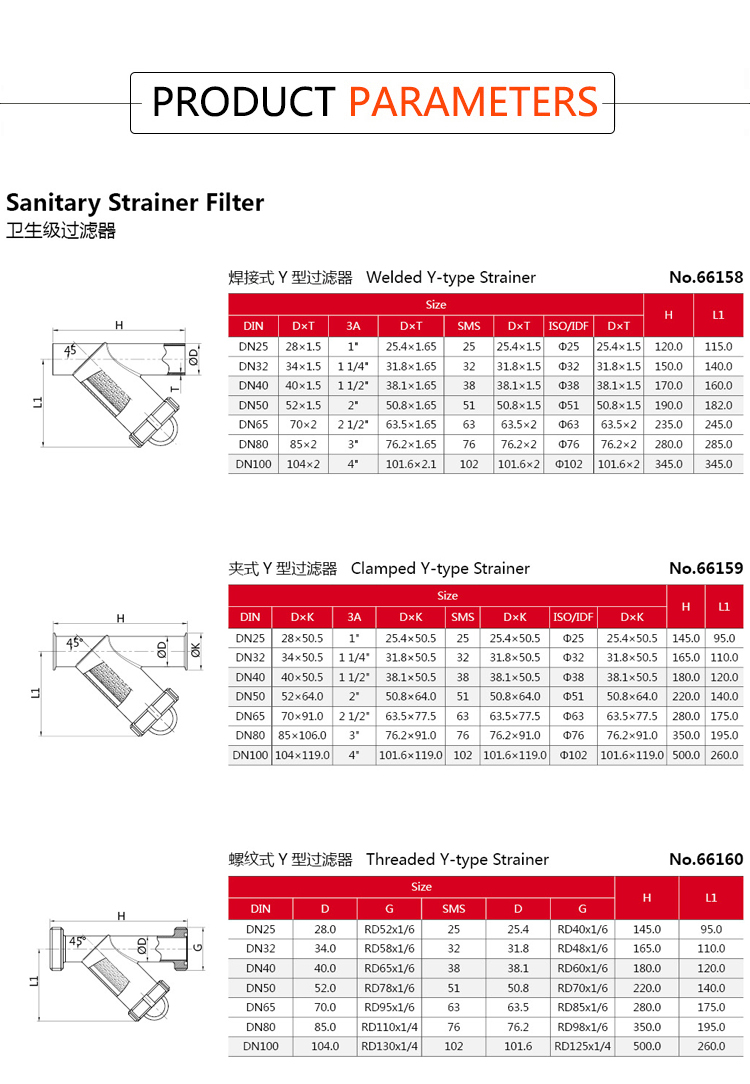

    Technical Parameter

    Availably standard SMS,DIN,AAA,ISO,IDF
    Material Quality SS304,SS304L,SS316,SS316L
    Specification 1"-4",DN25-DN100,25.4mm-101.6mm
    Availabe Connection Welding ends,triclamp ends,union ends,male ends
    Seal Material Silicone, EPDM, Viton, NBR
    Mesh Size&Microns 3-400mesh&6730-37microns
    Structure Staringht type,Angle type,Y type
    Pressure range 0bar~10bar
    Machine Processing The most advanced CNC machine from Japan for processing
    Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
    Special Design we can produce according to your drawings


    MESH TO MICRON CONVERSION CHART

    U.S. MESH INCHES MICRONS MILLIMETERS
    3 0.2650 6730 6.730
    4 0.1870 4760 4.760
    5 0.1570 4000 4.000
    6 0.1320 3360 3.360
    7 0.1110 2830 2.830
    8 0.0937 2380 2.380
    10 0.0787 2000 2.000
    12 0.0661 1680 1.680
    14 0.0555 1410 1.410
    16 0.0469 1190 1.190
    18 0.0394 1000 1.000
    20 0.0331 841 0.841
    25 0.0280 707 0.707
    30 0.0232 595 0.595
    35 0.0197 500 0.500
    40 0.0165 400 0.400
    45 0.0138 354 0.354
    50 0.0117 297 0.297
    60 0.0098 250 0.250
    70 0.0083 210 0.210
    80 0.0070 177 0.177
    100 0.0059 149 0.149
    120 0.0049 125 0.125
    140 0.0041 105 0.105
    170 0.0035 88 0.088
    200 0.0029 74 0.074
    230 0.0024 63 0.063
    270 0.0021 53 0.053
    325 0.0017 44 0.044
    400 0.0015 37 0.037

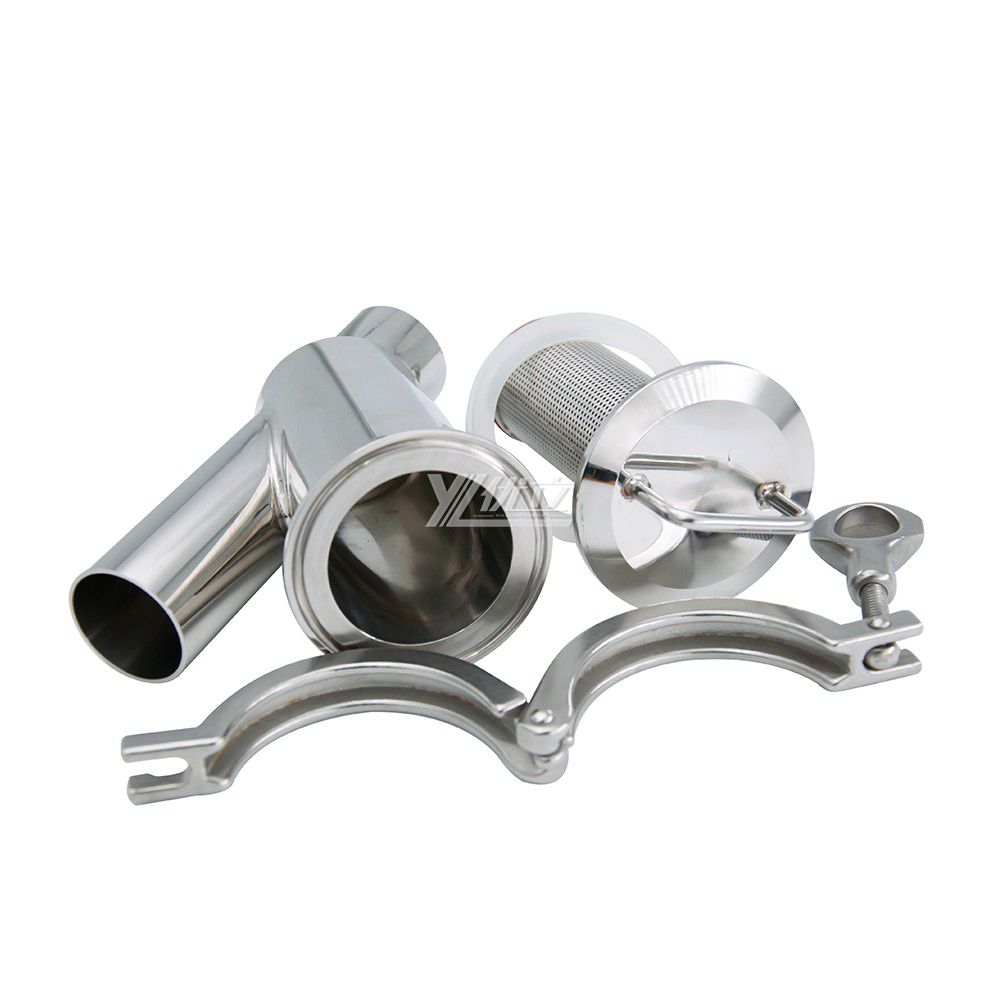

    Parts Name of Sanitary Filter

    01 Clamp,Union,Nut
    02 Outlet Assembly
    03 Gasket:Silicone, EPDM, Viton, NBR
    04 Perforated Core
    05 Distributor Core
    06 Filter Body:Short One,Long One


    Advantage of products

    1. Each kind of products has strong corrosion resistance and over-long service liftime
    2. youli accessories are easy to be installed
    3. Problem-free welding and assembly and highest possible strenghth





    Applications

    Sanitary filter is mainly appled to protect pumps,instruments,and other device to work regularly.It features compact structure,strong filtering ability,less pressure loss,conveninent maintenance,and is widely used in beverage,pharmacy,dairy and other fields.





    Product application

    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
