    YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

    YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

    Model NO.:D016001002022D-03

    Pur Qty. / Ref FOB Price

    1 PieceUS $42.61-793.51 / Piece

    Product Details:Ckeck View

    Min. Order:1 Piece

    Port:Ningbo, China

    Production Capacity:5000sets/Month

    Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

    Material:Stainless Steel

    Connection Form:Tri Clamp Ends

    Driving Mode:Manual

    Nominal Pressure:0~10bar ,0~0.1MPa

    Channel:Straight Through Type

    Structure:Flexible Ball Valve

    HS Code:8481804090

    Trademark:YOULI

    Specification:ISO, 3A, SGS

    Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin:Wenzhou City, China

    Add to Basket
    Basic Info

      Model NO.D016001002022D-03

      TypeFlexible Ball Valve

      FunctionBypass-Valve

      TemperatureNormal Temperature

      ApplicationMilk,Juice

      Material QualitySS304,SS316L

      Available StandardISO, DIN, 3A,SMS etc

      SizeDn25-100 & 1"-4"

      ConnectionWelded, Clamped, Threaded, Flanged

      Working PrincipalManual Operation or Driving Device Operation

      Body Construction3-Piece Precision Cast Body

      Flow PatternStraight

      Seat MaterialPTFE, PCTFE, Peek or Upon Your Request

      Working Pressure8bar,0.08MPa

      Temperature Range-20degree Celsius~135degree Celsius

      HS Code8481804090

      TrademarkYOULI

      SpecificationISO, 3A, SGS

      Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

      OriginWenzhou City, China

    Product Description

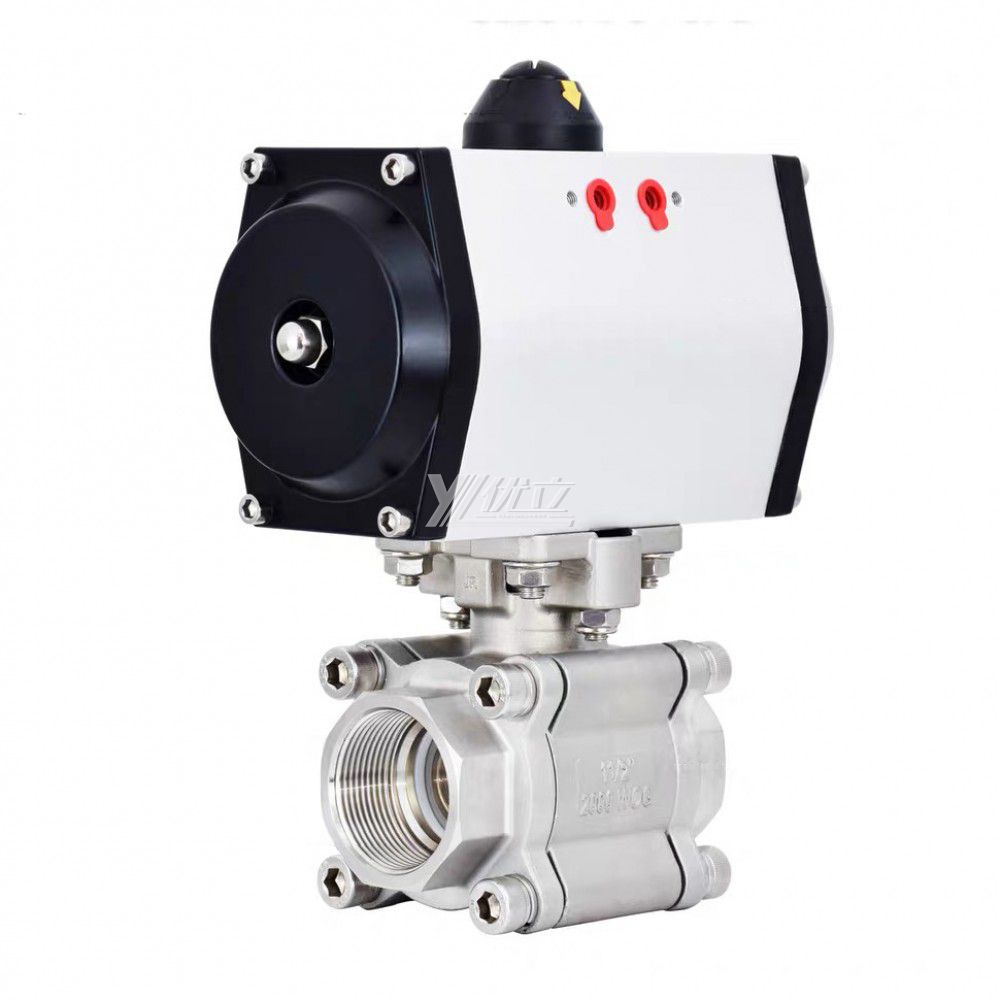

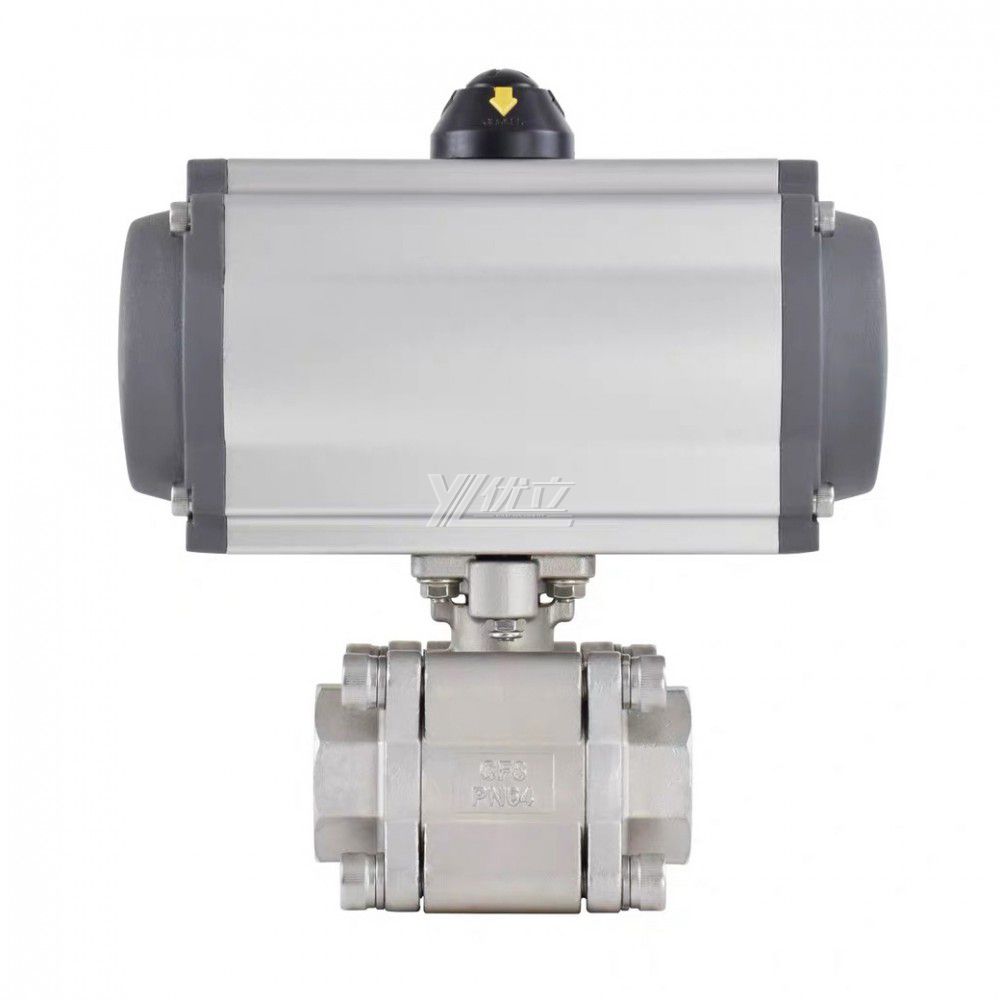

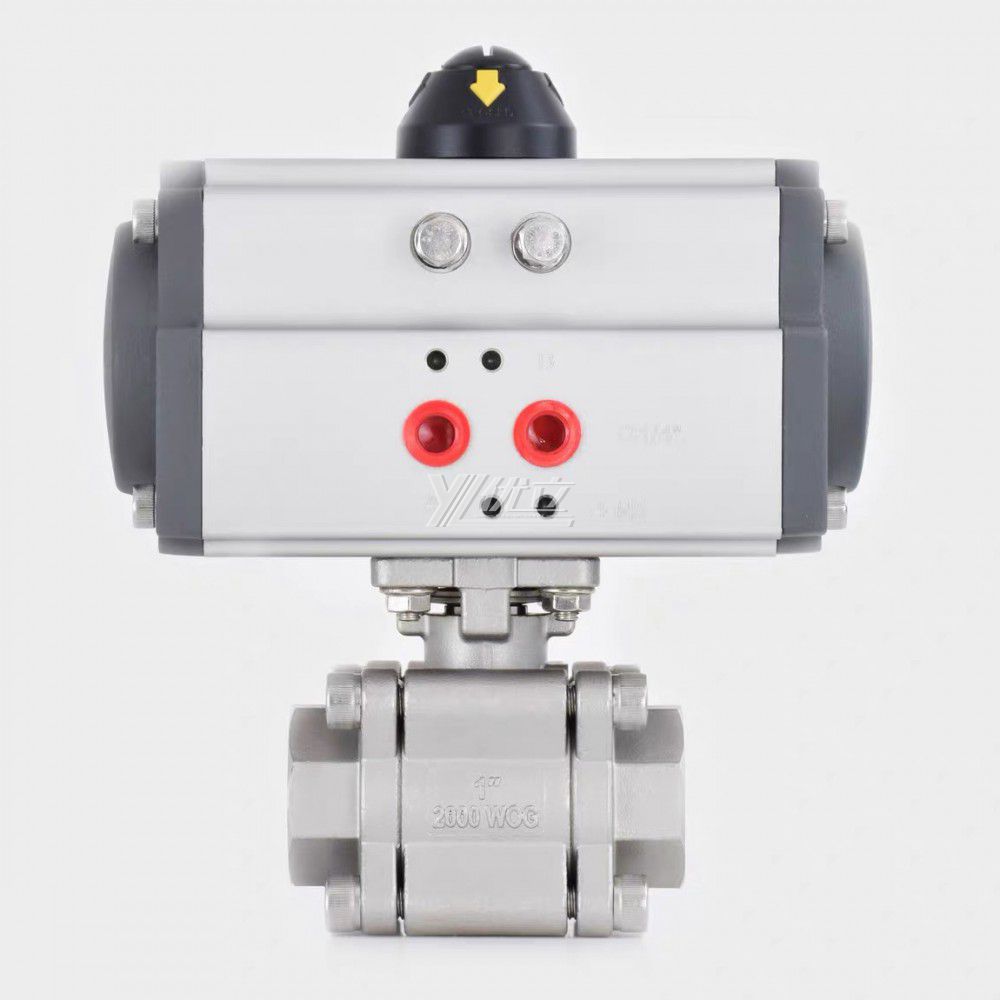

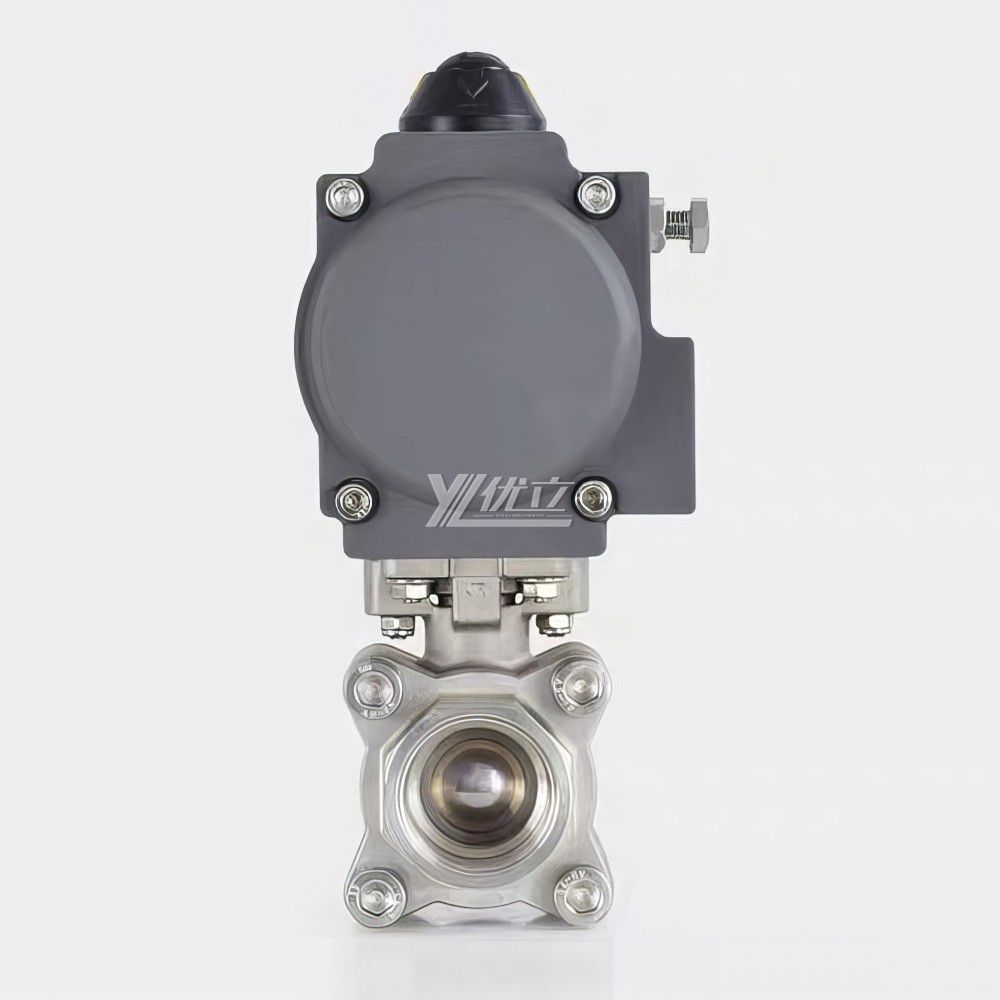

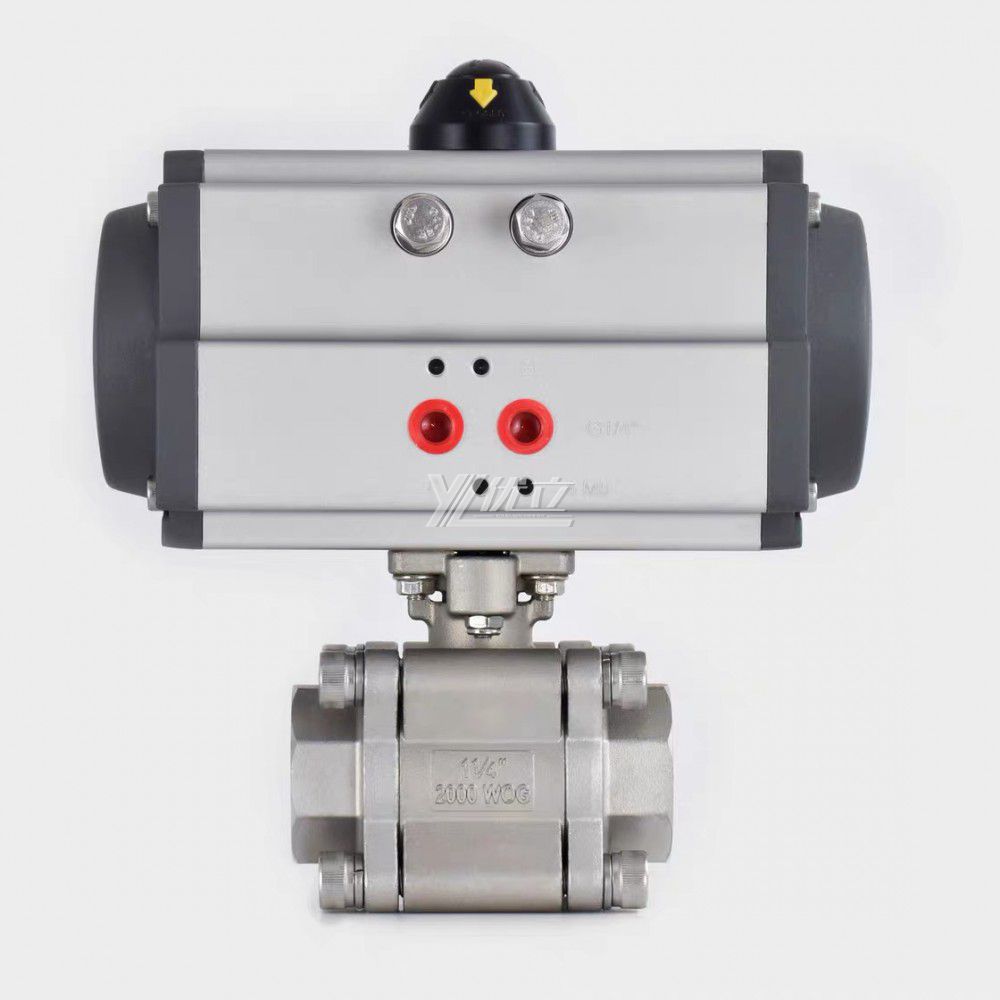

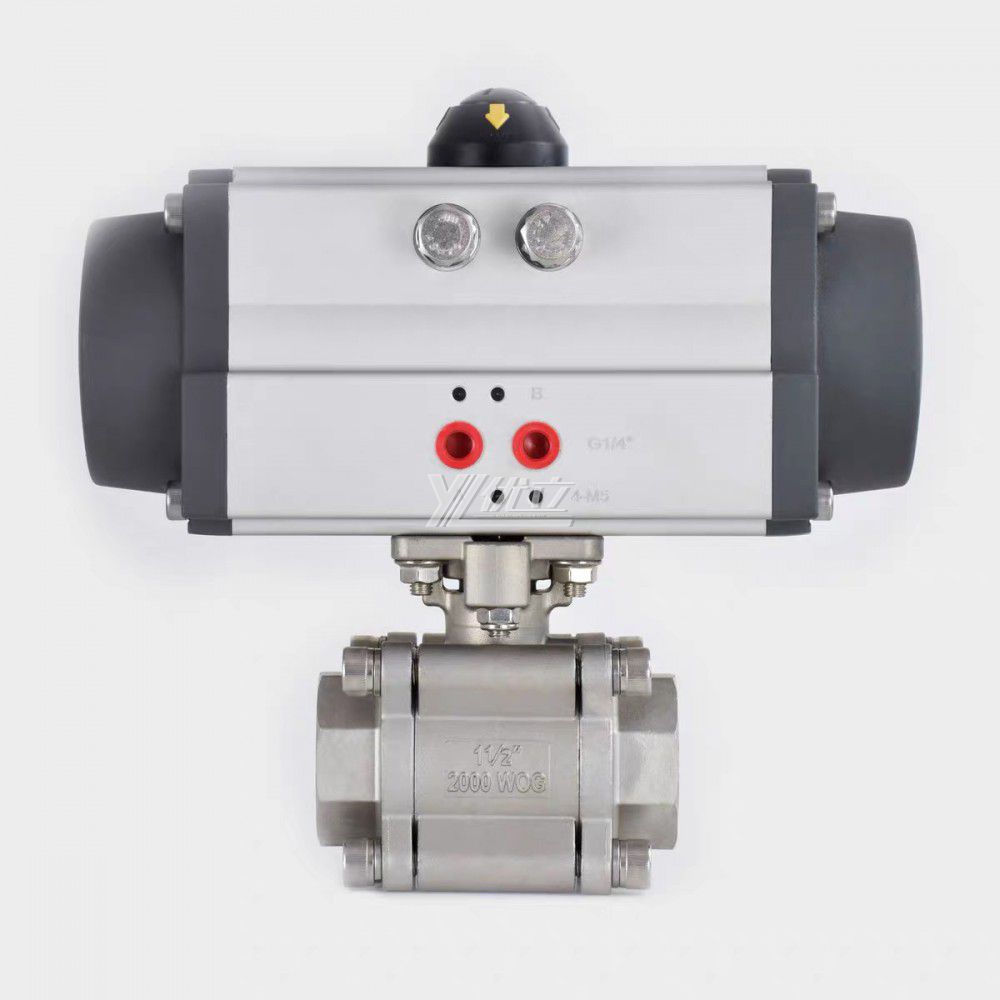

      Products Name:YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

      Pneumatic actuator Ball Valve
      Pneumatic Ball Valve



      Body material SUS201,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),WCB,etc.
      Full port 1/4"-4"(DN8-DN100)
      orking pressure PN16-64,1.6-6.4Mpa,16-64Bar,1000PSI,1000-2000WOG
      Medium temperature - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C)
      Connection type Weld, Thread,Socket,Clamped,Flanged
      Connection Standard BSPT,Optional(NPT, BSP, BSPP)
      Sealing PTFE,RPTFE,PPL ETC
      ISO 5211 Direct mounting pad Yes
      Investment casting Yes
      Blow-out proof stem Yes
      Anti-static device  Option
      Locking device handle Option
      Pneumatic actuator Double acting,option(Spring return )
      Solenoid valve Option(DC24V,AC220V)
      Filter Option
      Handwheel Option
      Limit switch Optionn(APL210,APL410 explosion-proof,APL510 explosion-proof)
      Positioner Option(TY-1000,4-20ma Signal feedback)
      Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
      Capacity to produce 10000PCS/Mouth
      Certification CE, ISO, our factory has been inspected by leyon and TUV
      MOQ 1PC
      HS Code 8481804090
      Trademark YOULI
      Application Suitable for water, oil, air and some corrosive liquid etc
      Buyer's drawings or designs are available>
      Package Cartons without pallet
      Cartons with pallet
      Or as buyer's requirements
      Delivery details According to the quantities and specifications of each order
      Normal delivery time is from 10 to 15 days after receiving the deposit



      Operating Principle

      A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction.





      Applications

      It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



      Company Profile Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.

      Comyany information

      Packaging Shipping

      Our Service

      On Samples Buyer bear the air fee, but this fee will be reduced from order directly
      On After Sales Free replacement if there is any quality problem
      On Delivery Never delay delivery time
      On Materials Ensure material pure
      Ensure material pure Welcome  to order our products



      FAQ

      Q: May I have free samples before ordering?
      Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

      Q: What’s the MOQ?
      The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

      Q: Does your company have the export license?
      Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

      Q: What’s the payment term?
      For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
      For mass orders, we accept T/T and L/C.

      Q: How would you minimize damages during delivery?
      Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
      Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

      Q: How would you choose the shipment way?
      Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

      FAQ

    hygienic sanitary three ways ball valves stainless steel T port three-way ball valves stainless steel sanitary three-way ball valves sanitary three-way ball valves Stainless Steel Sanitary Tc Manual 3-Way Ball Valve Stainless Steel Sanitary Manual Th
    Related Video
    Related File
    NO. Name File Detail Size Down
    Related products
    Online Message
      Message
      Hot
      More »
      close
      Loading, please wait...
      Successfully added to your Inquiry Cart!
      Click Close Inquiry Now
      It already exists in the list!
      Click Close Inquiry Now

      +86 15280043881

      tony@ylvalves.com

      0086 0577 88178326

      +86 13738392013
      Copyright © 2019-2020 ylvalves.com, All Rights Reserved   wz1050998343434

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

      Model NO.:D016001002022D-03

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve
      NO. Mat Spec Wgt(kg) Ps
      1 304 1/4"-DN8 2.5kg AT52 60 1.3
      2 304 3/8"-DN10 2.5kg AT52 60 1.3
      3 304 1/2"-DN15 2.6kg AT52 60 1.3
      4 304 3/4"-DN20 4.9kg AT63 80 2.1
      5 304 1"-DN25 4.5kg AT63 80 2.1
      6 304 1-1/4"-DN32 6.5kg AT75 100 2.5
      7 304 1-1/2"-DN40 9.5kg AT83 145 4.1
      8 304 2"-DN50 14kg AT92 195 5.5
      9 304 2-1/2"-DN65 28kg AT125 285 8.2
      10 304 3"-DN80 68kg AT160 580 28.9
      11 316 1/4"-DN8
      12 316 3/8"-DN10
      13 316 1/2"-DN15
      14 316 3/4"-DN20
      15 316 1"-DN25
      16 316 1-1/4"-DN32
      17 316 1-1/2"-DN40
      18 316 2"-DN50
      19 316 2-1/2"-DN65
      20 316 3"-DN80

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

      Model NO.:D016001002022D-03

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve
      NO. Mat Spec SPrice($) CPrice(RMB) Wgt(kg) Ps1.1
      1 304 1/4"-DN8 $41.98 200 2.5kg AT52 60 1.3
      2 304 3/8"-DN10 $41.98 200 2.5kg AT52 60 1.3
      3 304 1/2"-DN15 $42.61 203 2.6kg AT52 60 1.3
      4 304 3/4"-DN20 $52.06 248 4.9kg AT63 80 2.1
      5 304 1"-DN25 $63.61 303 4.5kg AT63 80 2.1
      6 304 1-1/4"-DN32 $76.41 364 6.5kg AT75 100 2.5
      7 304 1-1/2"-DN40 $102.23 487 9.5kg AT83 145 4.1
      8 304 2"-DN50 $146.95 700 14kg AT92 195 5.5
      9 304 2-1/2"-DN65 $332.73 1585 28kg AT125 285 8.2
      10 304 3"-DN80 $629.77 3000 68kg AT160 580 28.9
      11 316 1/4"-DN8 $46.18 220
      12 316 3/8"-DN10 $46.18 220
      13 316 1/2"-DN15 $57.31 273
      14 316 3/4"-DN20 $58.78 280
      15 316 1"-DN25 $72.21 344
      16 316 1-1/4"-DN32 $88.59 422
      17 316 1-1/2"-DN40 $119.45 569
      18 316 2"-DN50 $176.97 843
      19 316 2-1/2"-DN65 $406.2 1935
      20 316 3"-DN80 $793.51 3780

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve

      Model NO.:D016001002022D-03

      YOULI High Temperature Metal Seal NPT BSP 2000wog PN130 Stainless Steel 304 316 Pneumatic Actuator 3PC Thread Ball Valve
      NO. Mat Spec SPrice($) Wgt(kg) Ps
      1 304 1/4"-DN8 $41.98 2.5kg AT52 60 1.3
      2 304 3/8"-DN10 $41.98 2.5kg AT52 60 1.3
      3 304 1/2"-DN15 $42.61 2.6kg AT52 60 1.3
      4 304 3/4"-DN20 $52.06 4.9kg AT63 80 2.1
      5 304 1"-DN25 $63.61 4.5kg AT63 80 2.1
      6 304 1-1/4"-DN32 $76.41 6.5kg AT75 100 2.5
      7 304 1-1/2"-DN40 $102.23 9.5kg AT83 145 4.1
      8 304 2"-DN50 $146.95 14kg AT92 195 5.5
      9 304 2-1/2"-DN65 $332.73 28kg AT125 285 8.2
      10 304 3"-DN80 $629.77 68kg AT160 580 28.9
      11 316 1/4"-DN8 $46.18
      12 316 3/8"-DN10 $46.18
      13 316 1/2"-DN15 $57.31
      14 316 3/4"-DN20 $58.78
      15 316 1"-DN25 $72.21
      16 316 1-1/4"-DN32 $88.59
      17 316 1-1/2"-DN40 $119.45
      18 316 2"-DN50 $176.97
      19 316 2-1/2"-DN65 $406.2
      20 316 3"-DN80 $793.51
