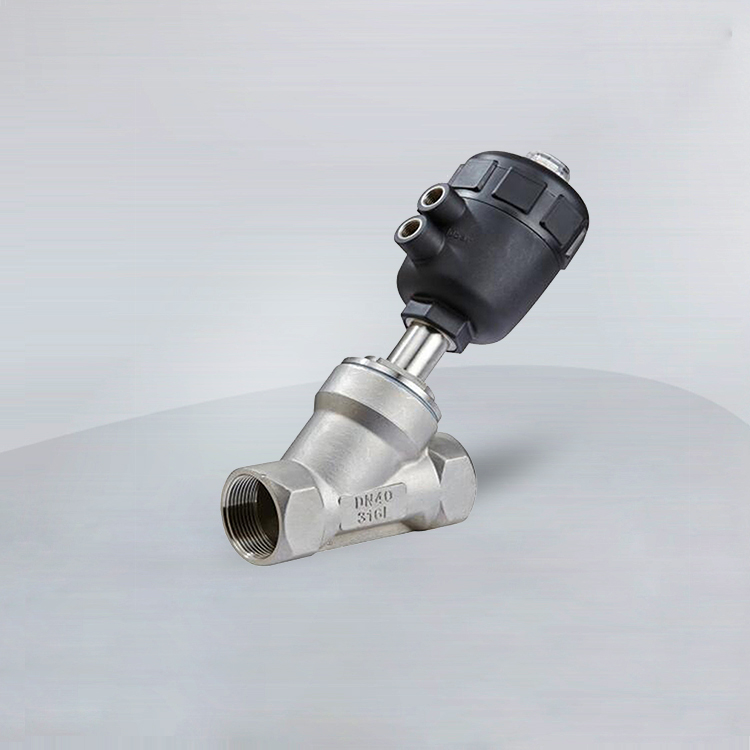

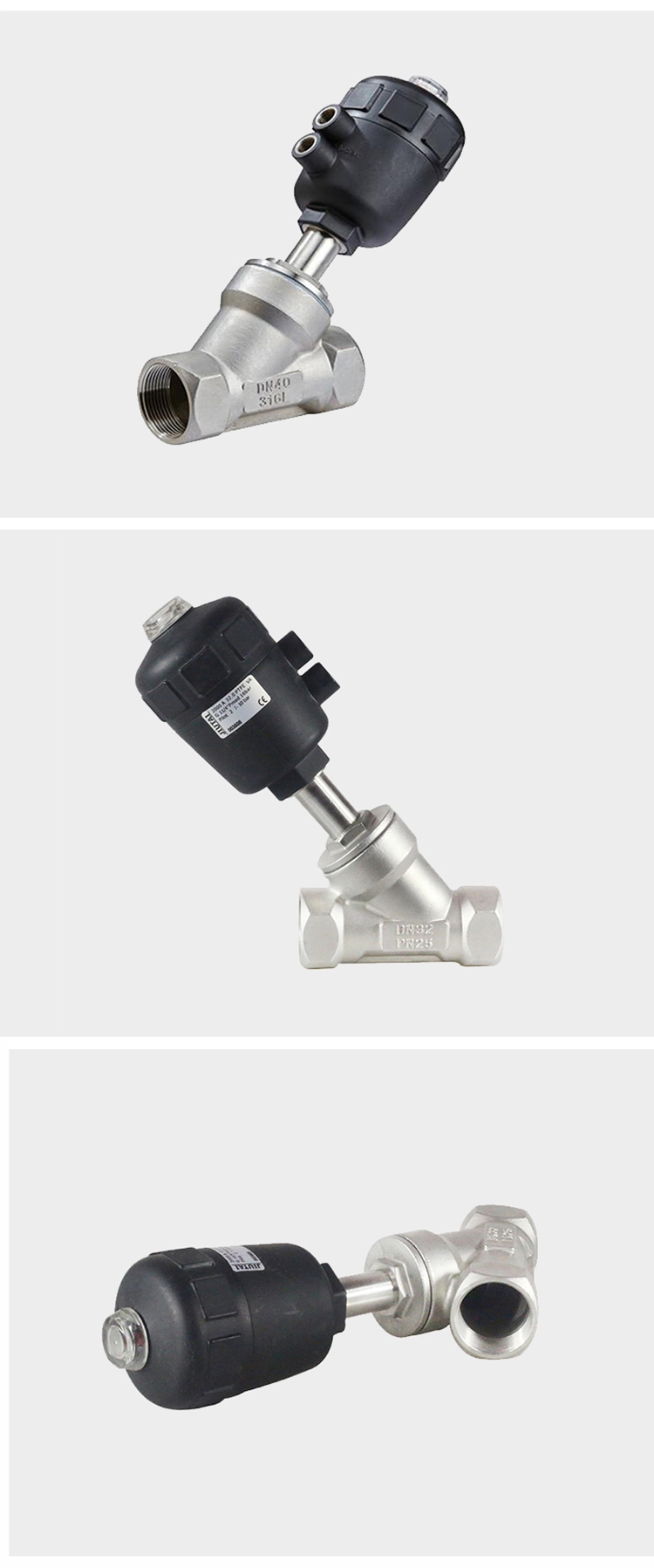

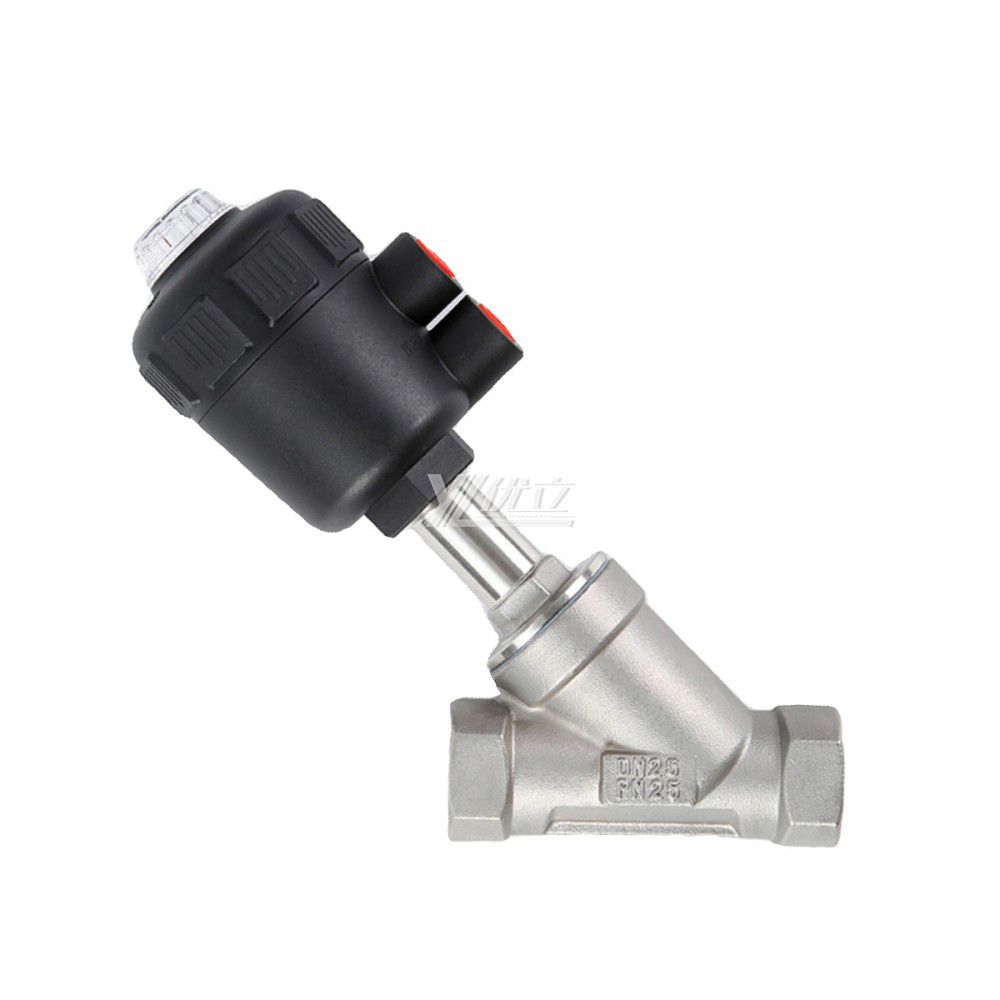

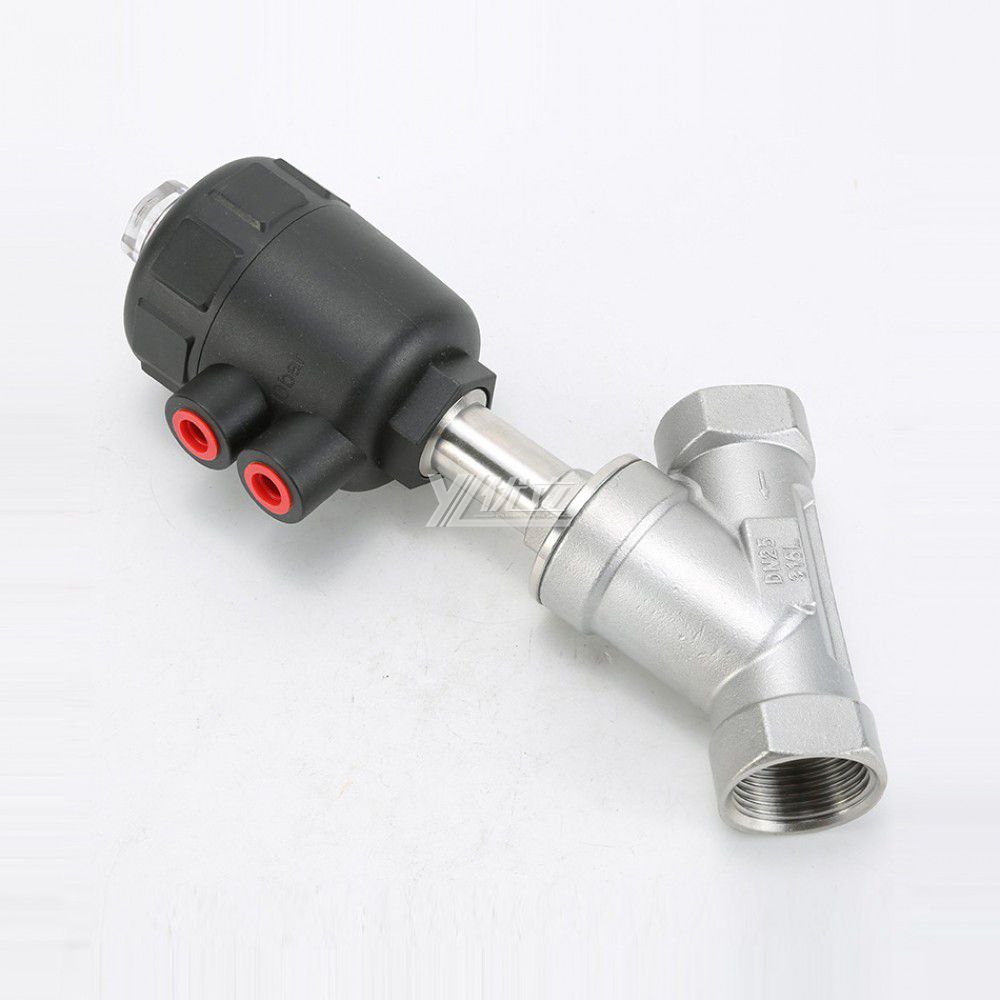

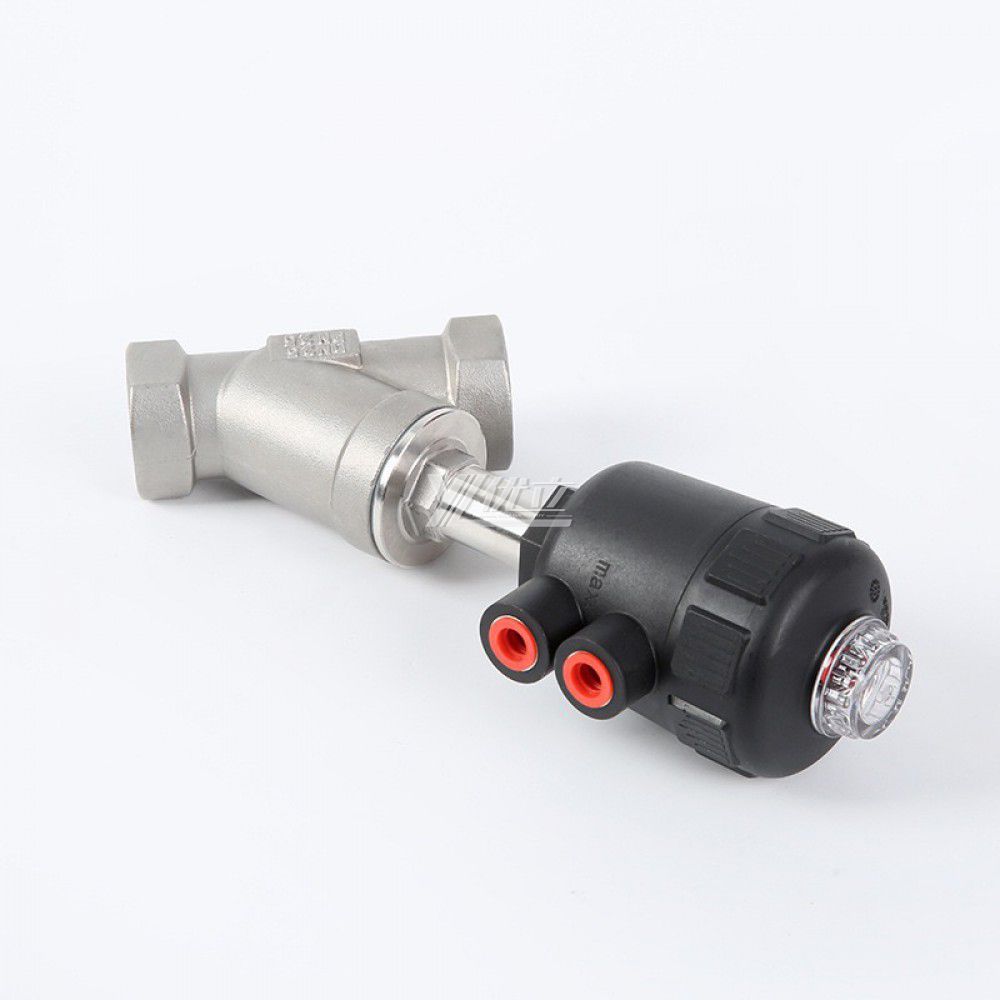

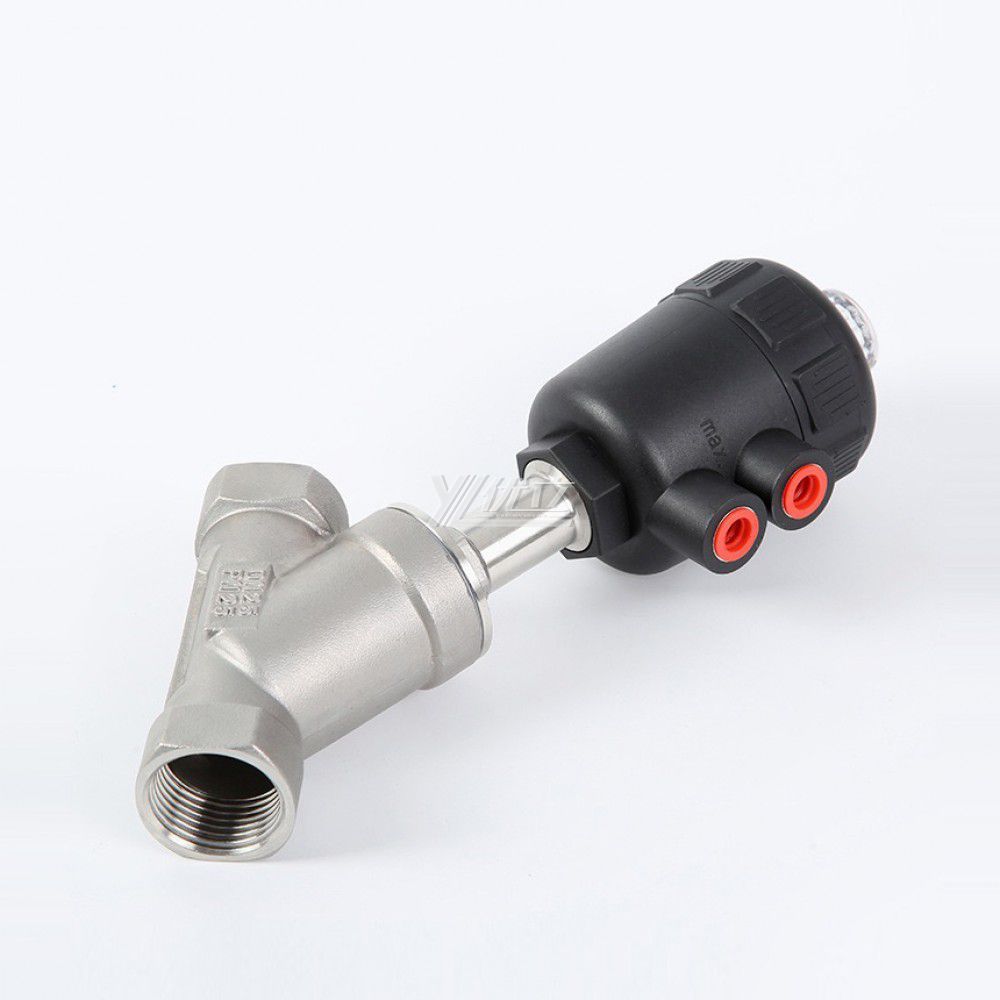

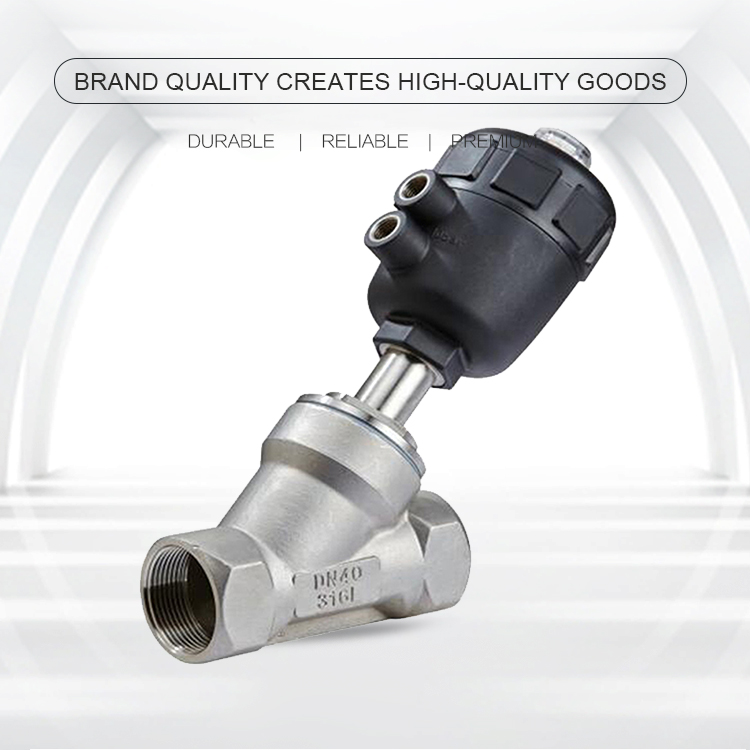

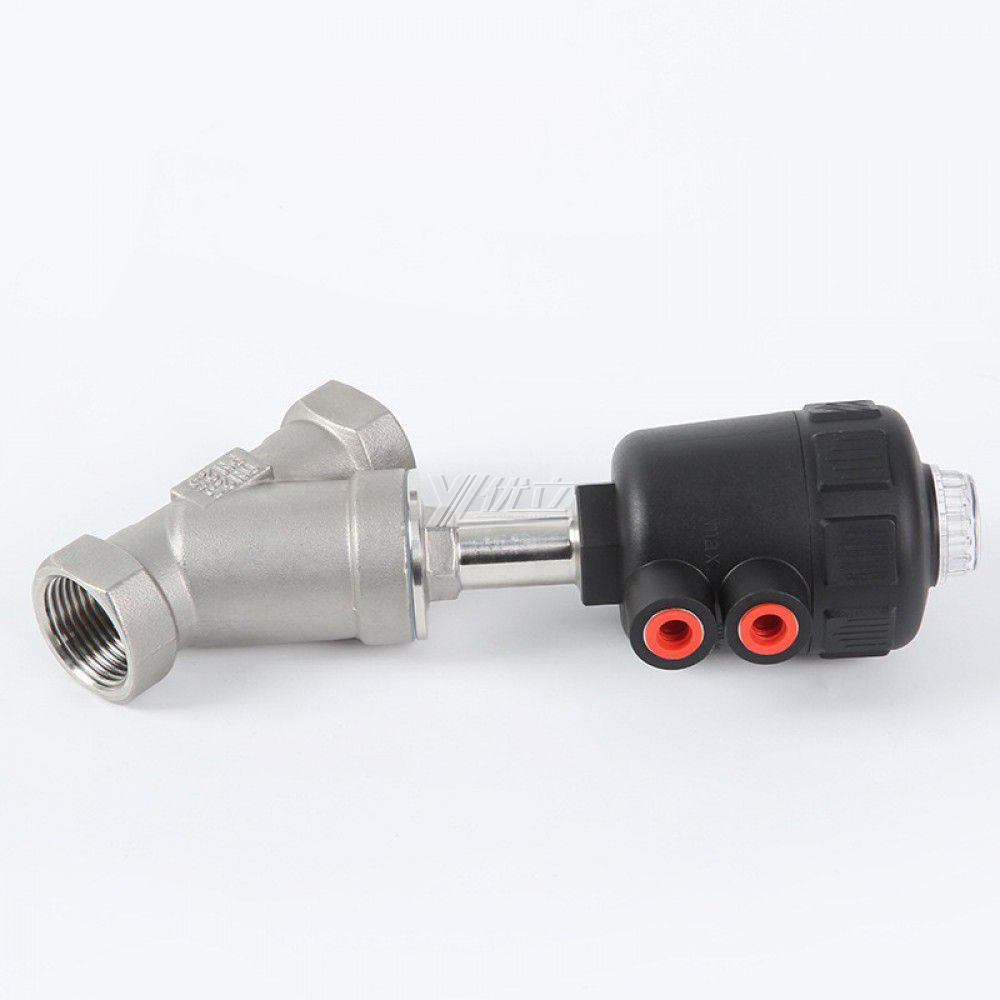

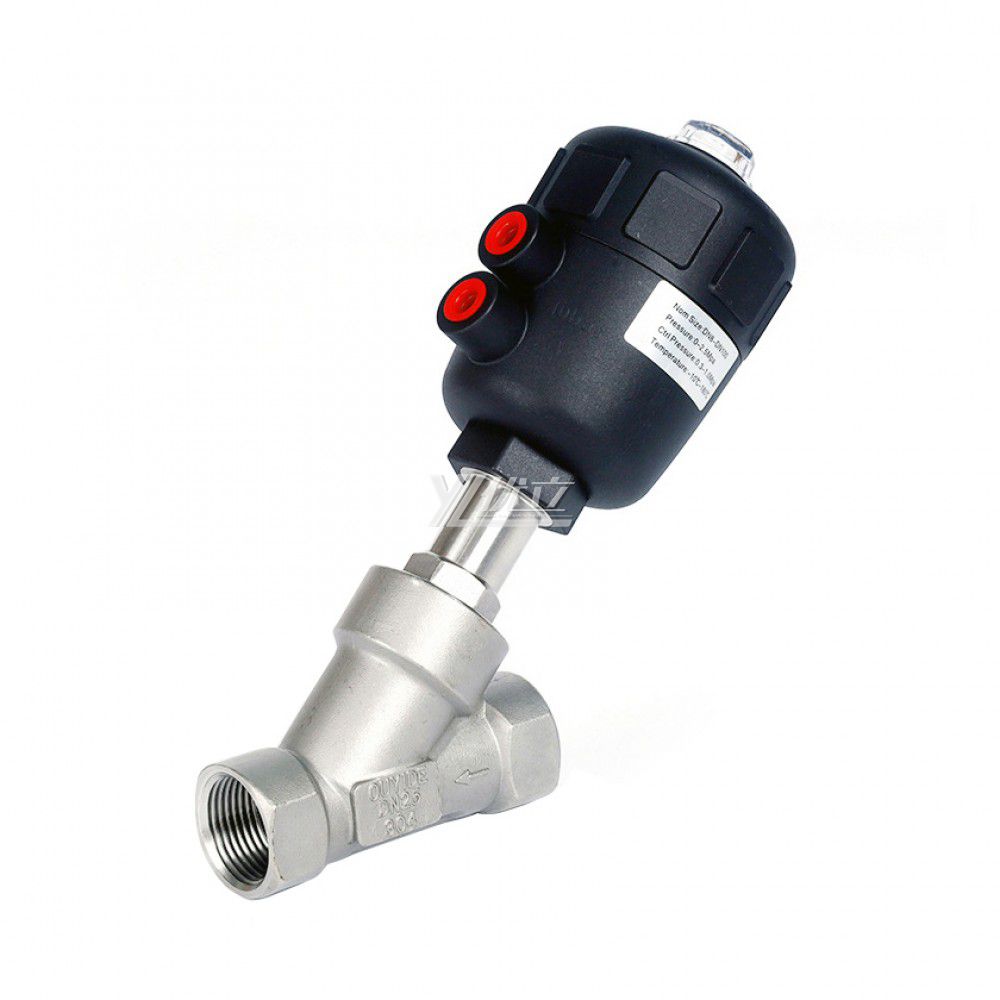

Pneumatical Thread Angle Seat Valve With Plastic Actuator

Model NO.:D001012002D

Pur Qty. / Ref FOB Price

1 PieceUS $3.04-10 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000pieces/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material:Stainless Steel

Valve Plug:Stainless Steel

Connection Form:Clamped,Welding,Thread

Open Manner:Quick-Opening

Size:1/2"-2 1/2", Dn10-Dn65

Usage:Sanitary Ware, Heating Pipeline

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001012002D

    SituationIndustrial

    Service Life>3 Years

    Available ConnectionThread, Clamp, Flange, NPT, Bsp, etc.

    Body MaterialSs304, Ss316L

    Working Pressure0-8bar, 10bar (Optional)

    Working Temperature-20- 120centigrade, 180 Centigrade (Optional)

    O-RingEPDM

    Seal of Stem and BodyPTFE

    Driving ModePneumatic, Manual

    Enviroment Temperature-10 to 60 Degree Celsius

    Applicable MediumWater,Liquid ,Natural Gas ,Water Steam, etc.

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Product name:Pneumatical Thread Angle Seat Valve With Plastic Actuator

    Stainless Steel Angle Seat Valve with Plastic Pnumatic Aactuator
    Hygienic Angle Seat Valve with Plastic Pnumatic Aactuator

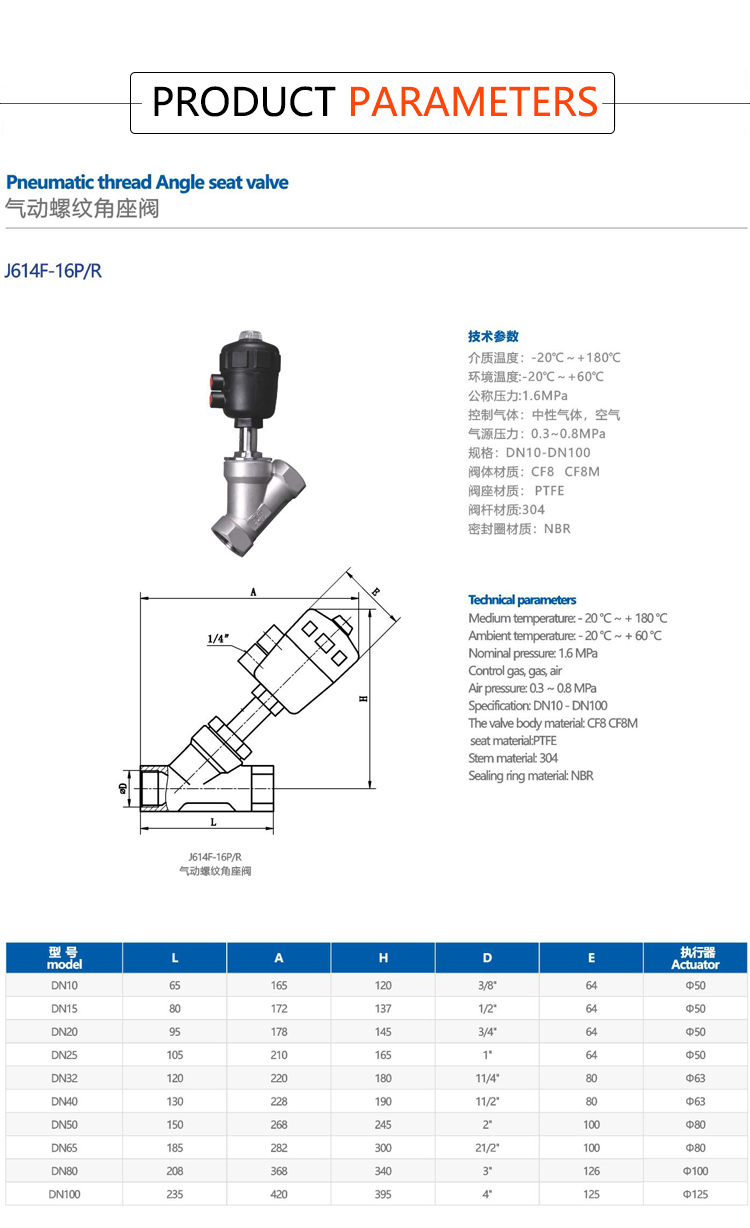

    Technical Parameter

    Body Material 304, 316L
    Size 1/2"-2 1/2", DN10-DN65
    Way of Connection Thread, Clamp, Flange, etc.
    Applicable Medium Water,Liquid ,Natural Gas ,Water Steam, etc.
    Working Pressure 0-8bar, 10bar (optional)
    Working Temperature -20- 120centigrade, 180 centigrade (optional)
    Driving Mode  Pneumatic or Manual



    Function

    Angle seat valve keep the flow speed and can save the space, it adopt oriented angle seat valve which have spring safety protective single function pneumatic actuator for operated.
    When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator, ensure can use longer.



    Feature

    1. It have valve open or close position display.
    2. Pneumatic guide outside, can prolong the service life, maintenance free.
    3. IT have self-regulation sealing gland between overfall and slider, can improve sealing property.
    4. The structure of angel seat valve body, can achievable mass flow(especially compare with normal stop valve), compact structure response is fast.





    Applications

    Control gas: Neutral gas, air control liquid, automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.



    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
