Automaitc Return Handle Aseptic Sampling Valve

Model NO.:D001003004D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Quality:304, 304L, 316L (1.4301, 1.4307, 1.4404)

Connection Ends:Threaded Triclamp, Welded

Size:1/2", 3/4"

Gasket:EPDM, Silicone, PTFE in Accordance with FDA 17

Max. Pressure:10bar 145psi

Temperature:20degree Celsius~135degree Celsius

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001003004D

    PressureMedium Pressure

    PowerPneumatic

    Temperature of MediaNomal Temperature

    MediaWater, Juice, Milk, Beer, Pharmaceutical

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

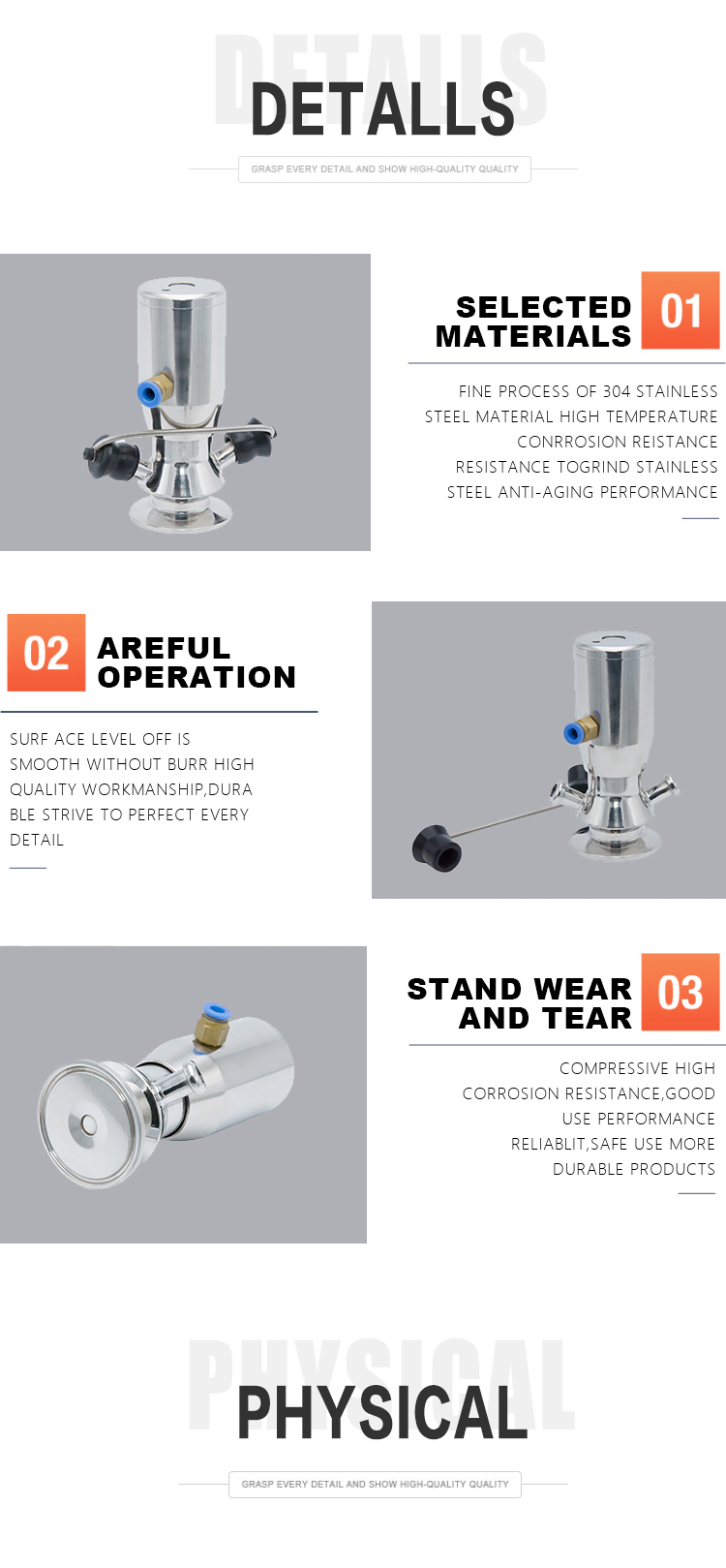

    Products Name:Automaitc Return Handle Aseptic Sampling Valve

    Aseptic Sampling Valve
    Handle Aseptic Sampling Valve



    Technical Parameter

    Material of Product Wetted  316L (DIN-1.4404)
    Material of Non-product Wetted  304 (DIN-1.4301)
    Seal material PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
    All seal materials comply with FDA 177.2600.
    Continuous working temperature  -20oC +135oC (EPDM)
    Sterilization temperature  150oC (Max 20min)
    Working pressure  0~10bar
    Internal surface  Ra0.8μm
    External surface  Shot blasting
    Size 1/2" 3/4"



    Applications

    Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.



    Aseptic sampling valve has two configurations

    1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
    2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.



    Feature

    1. 304 stainless steel,316L stainless steel
    2. Silicone O-ring plus plunger to assure a leak proof connection
    3. Surface finish polish to sanitary standards
    4. Recommended usage in wineries
    5. End connections available: clamp and NPT
    6. Sizes available: 1" clamp and 3/8" NPT

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
