Stainless Steel Sanitary SS316L No Reversing Flow Nrv Valve

Model NO.:D001005005D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material:Stainless Steel

Connection:Tri Clamp Ends

Structure:Nrv Valve

Pressure:Ordinary Pressure

Function:Nrvr Silence

Sealing Form:Gland Packings Globe Valve

HS Code:8481804090

Trademark:YOULI

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001005005D

    Flow DirectionReversing

    StandardDIN

    ApplicationJuice,Beer,Food Grade,Dairy

    Connection StandardSMS,DIN,3A,Idf,ISO

    Quality MaterialSS304,SS304L,SS316,SS316L

    Size3/4"~6",Dn19~Dn150

    Connection EndsButt-Welded,Clamped,Male Ends,Union Ends

    Seal RingManual, Pneumatic for Pulse Jet Diaphragm Valve

    Body O-RingStraight, Tee, U-Type, Tank Bottom

    Max. Working Temperature-20celsius Degree~+135celsius Degree

    Working Pressure10bar

    Operating ModeManual

    External SurfaceBright Gloss,Dull Gloss

    HS Code8481804090

    TrademarkYOULI

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

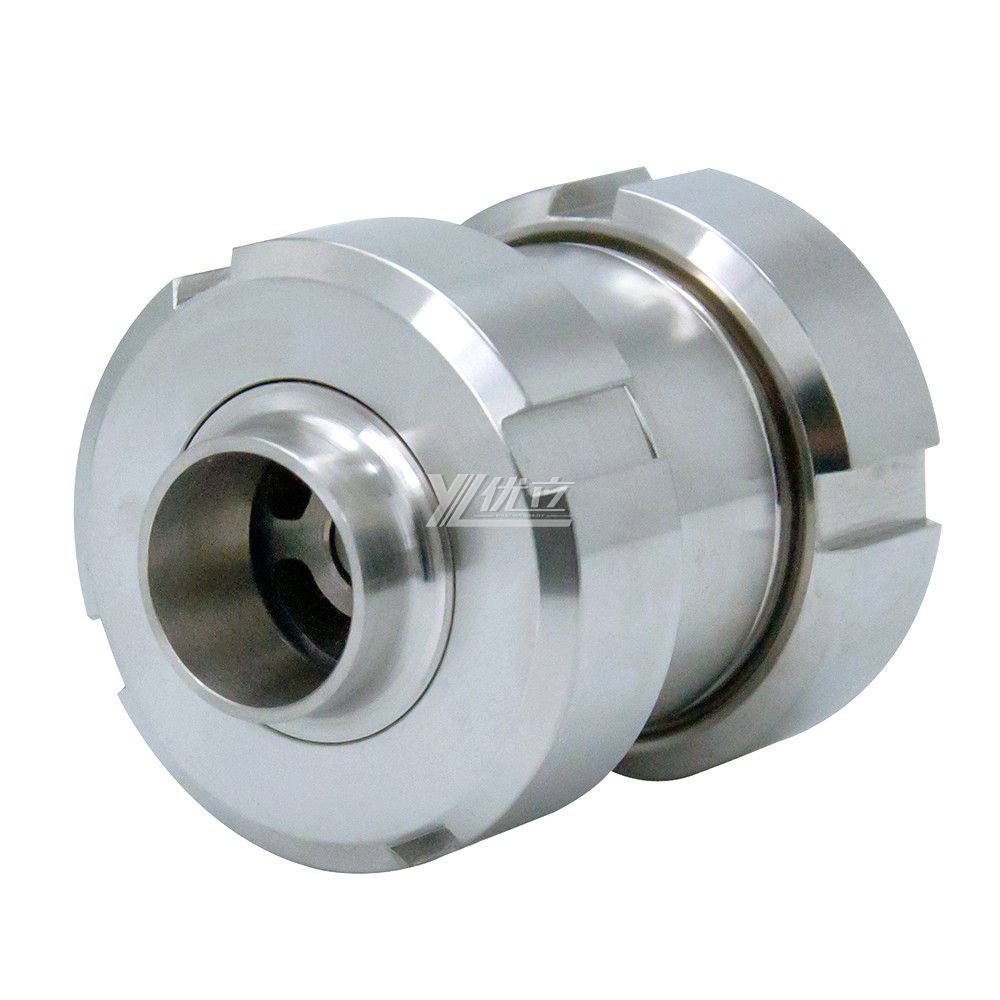

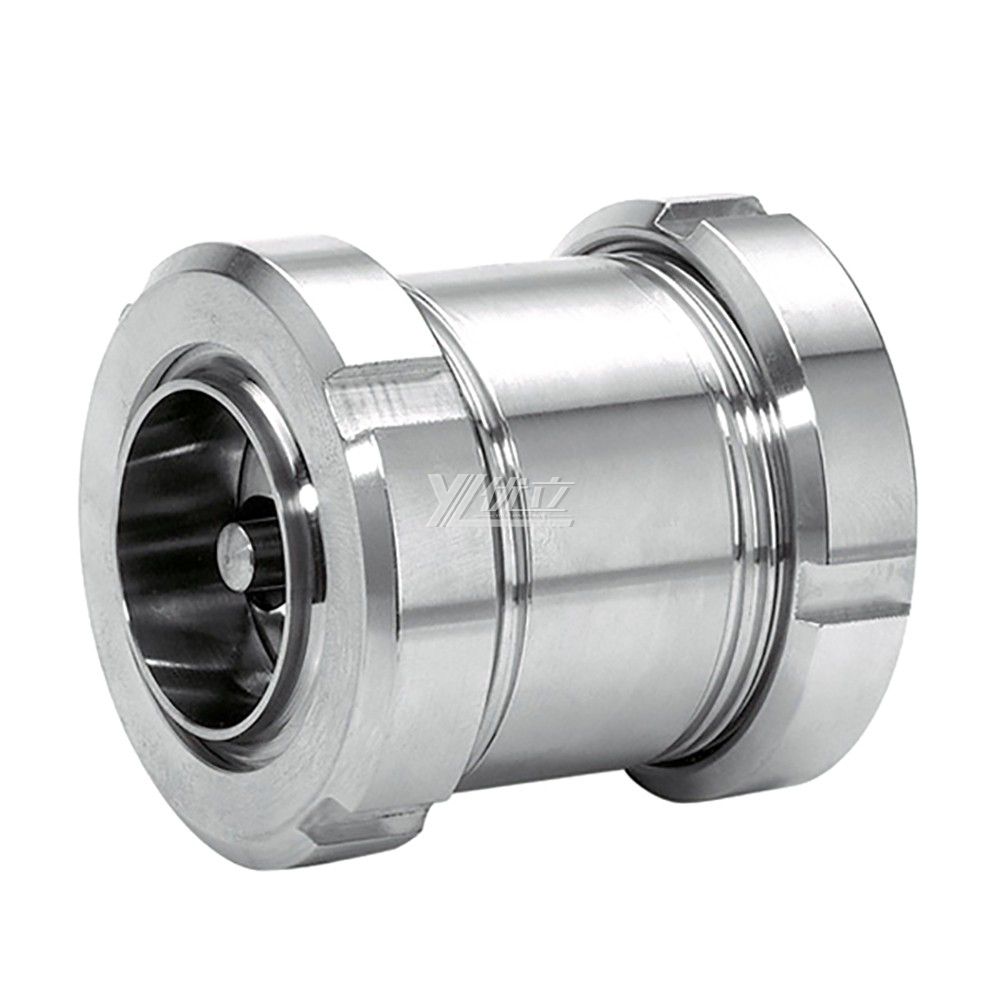

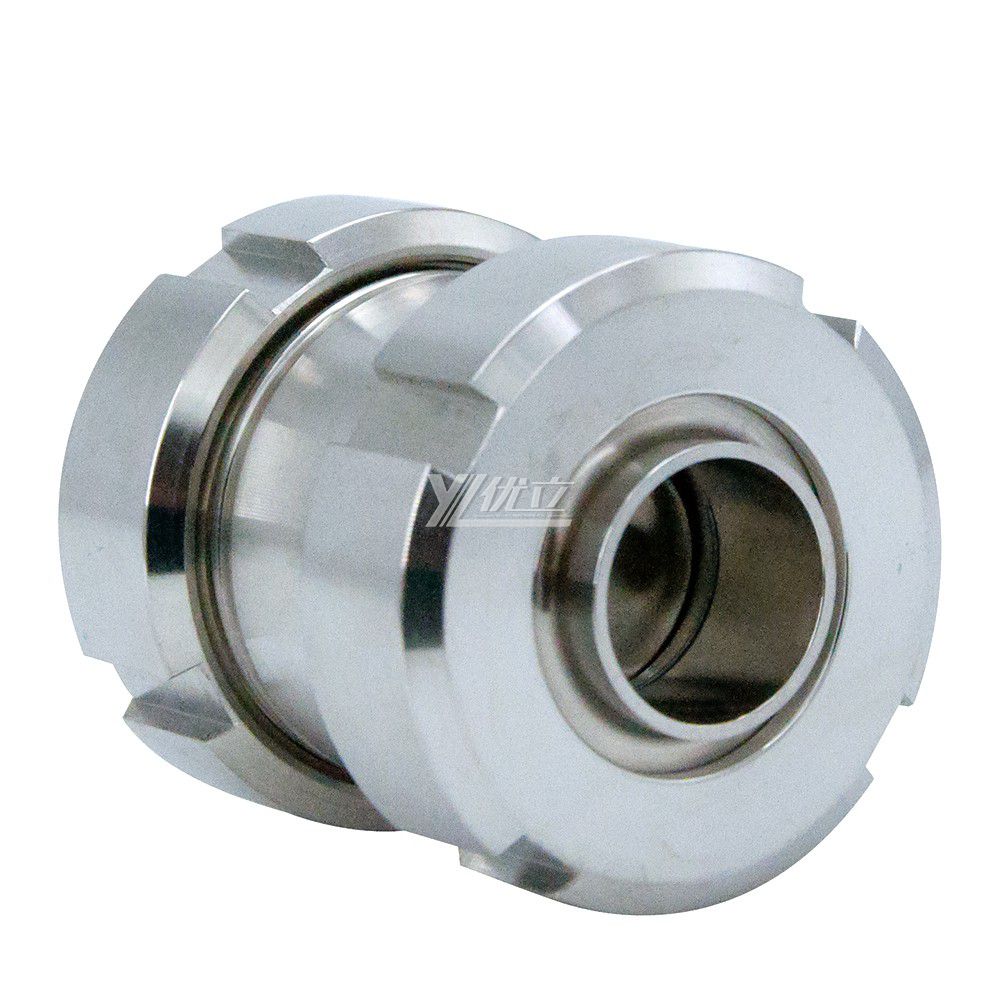

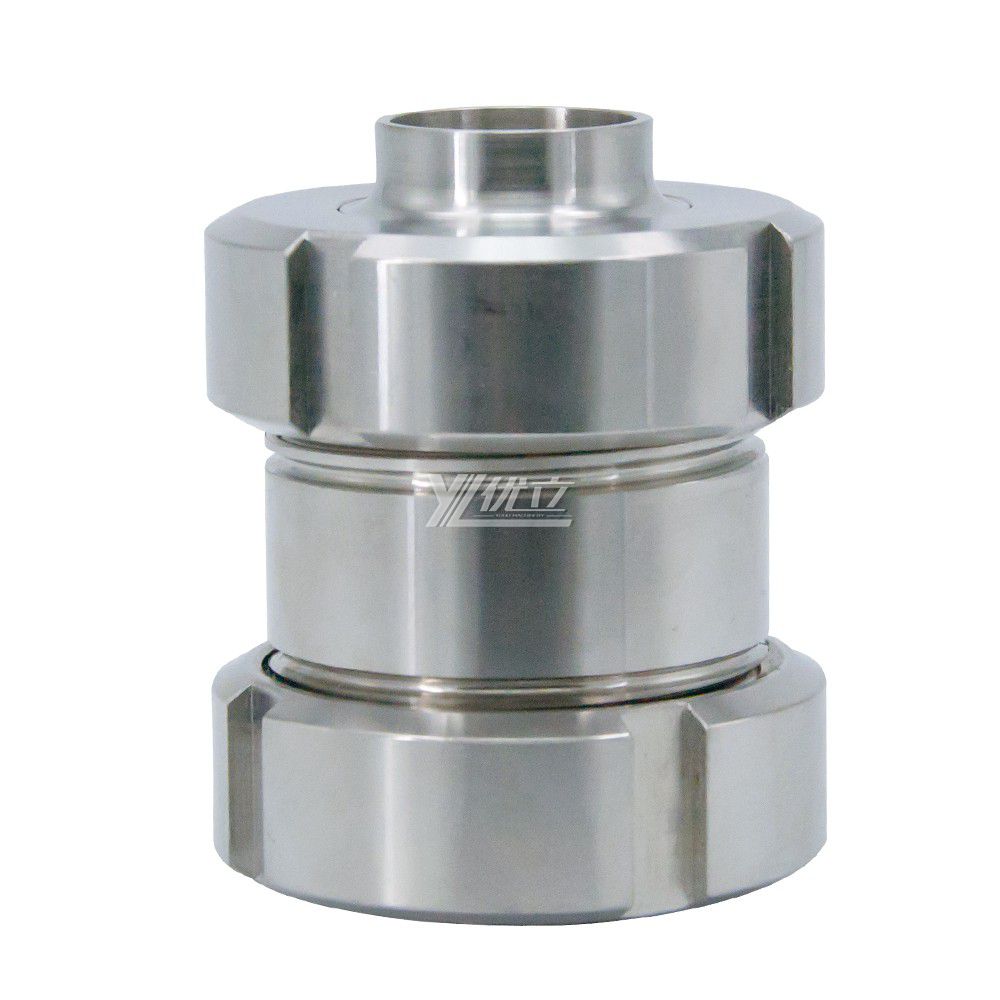

    PProducts Name:Stainless Steel Sanitary SS316L No Reversing Flow NRV Valve

    No Reversing Flow NRV Valve
    Sanitary SS316L No Reversing Flow NRV Valve



    Technical Parameter

    Standard SMS,DIN,3A,IDF,ISO
    SMS,DIN,3A,IDF,ISO SS304,SS304L,SS316,SS316L
    Size 3/4"~6",DN19~DN150
    Seal ring of stem EPDM. VITON OR SILICON is required
    Connection ends Butt-welded,clamped,male ends,union ends
    External surface  Bright gloss,dull gloss
    Bright gloss,dull gloss Manual
    Working temperature -20Celsius degree~+135Celsius degree
     Max. working pressure 10Bar



    Applications

    Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a returnpressure.Our special designed Check valve can be using for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries.



    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
